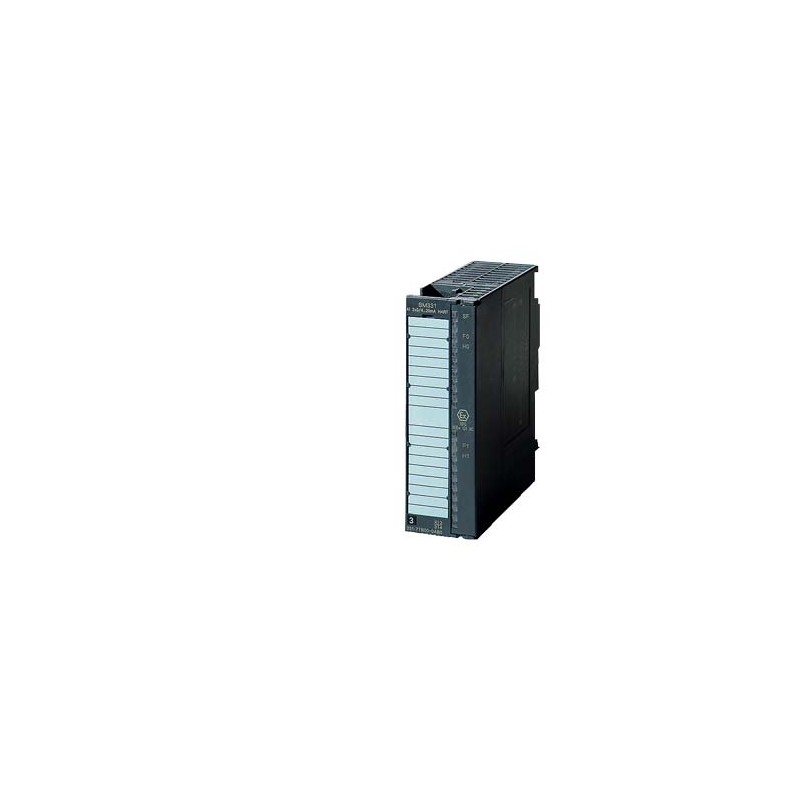

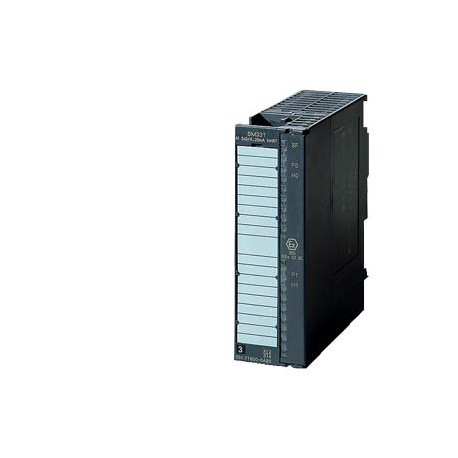

6ES7331-7TF01-0AB0 SIEMENS SIMATIC DP, HART analog input SM 331, 8 AI, 0/4 20 mA HART, for ET200M with IM153..
6ES7331-7TF01-0AB0
SIEMENS
SIMATIC DP, HART analog input SM 331, 8 AI, 0/4 - 20 mA HART, for ET200M with IM153-2, 1 x 20-pole, Functions: FW update, HART auxiliary variables, redundancy, local diagnostic buffer with time stamping,
AUTOMATION SYSTEMS > SIMATIC S7-300 Periphery
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲ETIM: EC001596 - Fieldbus, decentr. periphery - analogue I/O module
| Value | Unit | |
|---|---|---|
| Supporting protocol for PROFIsafe (EF007526) | - | |
| Supply voltage AC 60 Hz (EF007533) | - | V |
| Supporting protocol for PROFINET IO (EF007525) | - | |
| SIL according to IEC 61508 (EF009889) | - | |
| Voltage type of supply voltage (EF002991) | - | |
| Supply voltage AC 50 Hz (EF007532) | - | V |
| Degree of protection (NEMA) (EF011959) | - | |
| Performance level according to EN ISO 13849-1 (EF007399) | - | |
| Category according to EN 954-1 (EF006782) | - | |
| Supply voltage DC (EF007534) | ['20.4', '28.8'] | V |
| Input, current (EF003204) | true | |
| Input, voltage (EF003205) | false | |
| Input, resistor (EF003206) | false | |
| Input, resistance thermometer (EF003207) | false | |
| Input, thermocouple (EF003208) | false | |
| Input signal, configurable (EF003209) | true | |
| Resolution of the analogue inputs (EF003575) | 16 | Bit |
| Output, current (EF003212) | - | |
| Output, voltage (EF003213) | - | |
| Output signal configurable (EF003214) | - | |
| Resolution of the analogue outputs (EF003577) | - | Bit |
| Number of analogue inputs (EF001994) | 8 | |
| Number of analogue outputs (EF001995) | 0 | |
| Analogue inputs configurable (EF008518) | true | |
| Analogue outputs configurable (EF008519) | - | |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 | |
| Number of interfaces PROFINET (EF006932) | 0 | |
| Number of HW-interfaces RS-232 (EF003021) | 0 | |
| Number of HW-interfaces RS-422 (EF003022) | 0 | |
| Number of HW-interfaces RS-485 (EF003023) | 0 | |
| Number of HW-interfaces serial TTY (EF003024) | 0 | |
| Number of HW-interfaces parallel (EF003026) | 0 | |
| Number of HW-interfaces Wireless (EF006933) | 0 | |
| Number of HW-interfaces USB (EF003025) | 0 | |
| Number of HW-interfaces other (EF003027) | 0 | |
| Supporting protocol for TCP/IP (EF003050) | false | |
| Supporting protocol for PROFIBUS (EF003052) | true | |
| Supporting protocol for CAN (EF003053) | false | |
| Supporting protocol for INTERBUS (EF003054) | false | |
| Supporting protocol for ASI (EF003051) | false | |
| Supporting protocol for KNX (EF003055) | false | |
| Supporting protocol for Modbus (EF003057) | false | |
| Supporting protocol for Data-Highway (EF003058) | false | |
| Supporting protocol for DeviceNet (EF003059) | false | |
| Supporting protocol for SUCONET (EF003060) | false | |
| Supporting protocol for LON (EF003017) | false | |
| Supporting protocol for PROFINET CBA (EF007524) | false | |
| Supporting protocol for SERCOS (EF006657) | false | |
| Supporting protocol for Foundation Fieldbus (EF007522) | false | |
| Supporting protocol for EtherNet/IP (EF007521) | false | |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | false | |
| Supporting protocol for DeviceNet Safety (EF007520) | false | |
| Supporting protocol for INTERBUS-Safety (EF006662) | false | |
| Supporting protocol for SafetyBUS p (EF007527) | false | |
| Supporting protocol for other bus systems (EF003062) | true | |
| Radio standard Bluetooth (EF007178) | false | |
| Radio standard WLAN 802.11 (EF007179) | false | |
| Radio standard GPRS (EF008523) | false | |
| Radio standard GSM (EF008524) | false | |
| Radio standard UMTS (EF008525) | false | |
| IO link master (EF007298) | false | |
| System accessory (EF004118) | true | |
| Degree of protection (IP) (EF005474) | IP20 | |
| Type of electric connection (EF003961) | Screw-/spring clamp connection | |
| Fieldbus connection over separate bus coupler possible (EF004002) | false | |
| Rail mounting possible (EF003972) | true | |
| Wall mounting/direct mounting (EF007020) | true | |
| Front build in possible (EF007016) | true | |
| Rack-assembly possible (EF007018) | false | |
| Suitable for safety functions (EF001597) | false | |
| Appendant operation agent (Ex ia) (EF004141) | false | |
| Appendant operation agent (Ex ib) (EF004142) | false | |
| Explosion safety category for gas (EF003997) | ATEX gas-ex-protection, Cat. 3G | |
| Explosion safety category for dust (EF003998) | None | |
| Width (EF000008) | 40.0 | mm |
| Height (EF000040) | 125.0 | mm |
| Depth (EF000049) | 117.0 | mm |
| SIMATIC DP, HART analog input SM 331, 8 AI, 0/4 - 20 mA HART, for ET200M with IM153-2, 1 x 20-pole, Functions: FW update, HART auxiliary variables, redundancy, local diagnostic buffer with time stamping, | ||
| Supply voltage | ||
| Load voltage L+ | ||
| ● Rated value (DC) | 24 V | |
| ● Reverse polarity protection | Yes | |
| Input current | ||
| from load voltage L+ (without load), max. | 20 mA | |
| from backplane bus 5 V DC, max. | 120 mA | |
| Output voltage | ||
| Power supply to the transmitters | ||
| ● present | Yes | |
| ● Rated value (DC) | 24 V | |
| ● short-circuit proof | Yes | |
| ● Supply current, max. | 60 mA | |
| Power loss | ||
| Power loss, typ. | 1.5 W | |
| Analog inputs | ||
| Number of analog inputs | 8 | |
| permissible input current for current input (destruction limit), max. | 40 mA | |
| Input ranges (rated values), currents | ||
| ● 0 to 20 mA | Yes | |
| — Input resistance (0 to 20 mA) | 140 Ω | |
| ● -20 mA to +20 mA | ||
| — Input resistance (-20 mA to +20 mA) | 140 Ω | |
| ● 4 mA to 20 mA | ||
| — Input resistance (4 mA to 20 mA) | 140 Ω | |
| Cable length | ||
| ● shielded, max. | 800 m | |
| Analog value generation for the inputs | ||
| Measurement principle | Sigma Delta | |
| Integration and conversion time/resolution per channel | ||
| ● Resolution with overrange (bit including sign), max. | 16 bit | |
| ● Integration time, parameterizable | Yes | |
| ● Integration time (ms) | 20 ms at 50 Hz; 16.6 ms at 60 Hz; 100 ms at 100 Hz | |
| ● Basic conversion time, including integration time (ms) | 55 ms @ 60 Hz, 65 ms @ 50 Hz, 305 ms @ 100 Hz | |
| ● Interference voltage suppression for interference frequency f1 in Hz | 10 / 50 / 60 Hz | |
| Smoothing of measured values | ||
| ● parameterizable | Yes | |
| ● Step: None | Yes | |
| ● Step: low | Yes | |
| ● Step: Medium | Yes | |
| ● Step: High | Yes | |
| Encoder | ||
| Connection of signal encoders | ||
| ● for current measurement as 2-wire transducer | Yes | |
| ● for current measurement as 4-wire transducer | Yes | |
| Errors/accuracies | ||
| Operational error limit in overall temperature range | ||
| ● Current, relative to input range, (+/-) | 0.15 % | |
| Basic error limit (operational limit at 25 °C) | ||
| ● Current, relative to input range, (+/-) | 0.1 % | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes | |
| Alarms | ||
| ● Diagnostic alarm | Yes | |
| ● Limit value alarm | Yes | |
| Diagnostics indication LED | ||
| ● Group error SF (red) | Yes | |
| ● Channel fault indicator F (red) | Yes | |
| Potential separation | ||
| Potential separation analog inputs | ||
| ● between the channels | No | |
| ● between the channels and backplane bus | Yes | |
| Isolation | ||
| Isolation tested with | 500 V DC | |
| Degree and class of protection | ||
| IP degree of protection | IP20 | |
| Connection method | ||
| required front connector | 20-pin | |
| Dimensions | ||
| Width | 40 mm | |
| Height | 125 mm | |
| Depth | 117 mm | |
| Weights | ||
| Weight, approx. | 205 g | |
| last modified: | 08/25/2020 | |
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 6ES7331-7TF01-0AB0 | |||||||||||||||||||||||||||||||||||||||
| Product Description | SIMATIC DP, HART analog input SM 331, 8 AI, 0/4 - 20 mA HART, for ET200M with IM153-2, 1 x 20-pole, Functions: FW update, HART auxiliary variables, redundancy, local diagnostic buffer with time stamping, | |||||||||||||||||||||||||||||||||||||||
| Product family | Analog input module with HART | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Price Group | 280 | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : EAR99H | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 1 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,250 Kg | |||||||||||||||||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 13,20 x 15,40 x 5,10 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | CM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4025515075813 | |||||||||||||||||||||||||||||||||||||||
| UPC | 662643401455 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85389091 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | ST73 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 2488 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R116 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 25.11.2009 | |||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 6ES7331-7TF01-0AB0 6ES7331-7TF01-0AB0 EN_6ES7331-7TF01-0AB0.pdf | 106 Kbytes |
|
