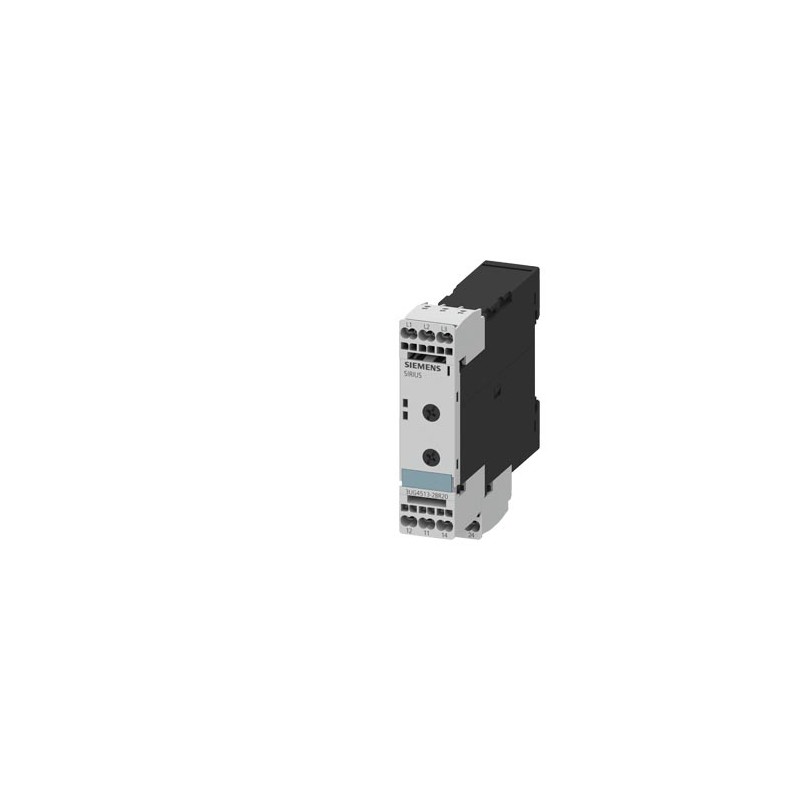

3UG4513-2BR20 SIEMENS Analog monitoring relay Phase failure and sequence Adjustable undervoltage Asymmetry 2.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3UG4513-2BR20 SIEMENS Analog monitoring relay Phase failure and sequence Adjustable undervoltage Asymmetry 2..

3UG4513-2BR20

SIEMENS

Analog monitoring relay Phase failure and sequence Adjustable undervoltage Asymmetry 20% fixed 3 x 160 to 690 V 50 to 60 Hz AC Hysteresis 5% fixed Delay time 0-20 s 2 change-over contacts spring-type connection system

More details


Relays > Phase monitoring relay

CONTROL AND CONTACTORS > Function relays

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Analog monitoring relay Phase failure and sequence Adjustable undervoltage Asymmetry 20% fixed 3 x 160 to 690 V 50 to 60 Hz AC Hysteresis 5% fixed Delay time 0-20 s 2 change-over contacts spring-type connection system
product brand nameSIRIUS
product designationNetwork monitoring relay with analog setting
design of the product4 functions
product type designation3UG4
General technical data
product functionPhase monitoring relay
display version LEDYes
insulation voltage for overvoltage category III according to IEC 60664
● with degree of pollution 3 rated value690 V
degree of pollution3
type of voltage
● for monitoringAC
● of the control supply voltageAC
surge voltage resistance rated value6 kV
protection class IPIP20
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
vibration resistance according to IEC 60068-2-61 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g
mechanical service life (switching cycles) typical10 000 000
electrical endurance (switching cycles) at AC-15 at 230 V typical100 000
thermal current of the switching element with contacts maximum5 A
reference code according to IEC 81346-2K
relative repeat accuracy1 %
Substance Prohibitance (Date)05/01/2012
Product Function
product function
● undervoltage detectionYes
● overvoltage detectionNo
● phase sequence recognitionYes
● phase failure detectionYes
● asymmetry detectionYes
● overvoltage detection 3 phaseNo
● undervoltage detection 3 phasesYes
● voltage window recognition 3 phaseNo
● adjustable open/closed-circuit current principleNo
● auto-RESETYes
Control circuit/ Control
control supply voltage at AC
● at 50 Hz rated value160 ... 690 V
● at 60 Hz rated value160 ... 690 V
operating range factor control supply voltage rated value at AC at 50 Hz
● initial value1
● full-scale value1
operating range factor control supply voltage rated value at AC at 60 Hz
● initial value1
● full-scale value1
Measuring circuit
measurable voltage at AC690 ... 160 V
Precision
relative metering precision5 %
Auxiliary circuit
number of NC contacts delayed switching0
number of NO contacts delayed switching0
number of CO contacts delayed switching2
operating frequency with 3RT2 contactor maximum5 000 1/h
Main circuit
number of poles for main current circuit3
ampacity of the output relay at AC-15
● at 250 V at 50/60 Hz3 A
● at 400 V at 50/60 Hz3 A
ampacity of the output relay at DC-13
● at 24 V1 A
● at 125 V0.2 A
● at 250 V0.1 A
operational current at 17 V minimum5 mA
continuous current of the DIAZED fuse link of the output relay4 A
Electromagnetic compatibility
conducted interference
● due to burst according to IEC 61000-4-42 kV
● due to conductor-earth surge according to IEC 61000-4-52 kV
● due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
Galvanic isolation
galvanic isolation
● between input and outputYes
● between the outputsYes
● between the voltage supply and other circuitsYes
Connections/ Terminals
product component removable terminal for auxiliary and control circuitYes
type of electrical connectionspring-loaded terminals
type of connectable conductor cross-sections
● solid2x (0.25 ... 1.5 mm²)
● finely stranded with core end processing2 x (0.25 ... 1.5 mm²)
● finely stranded without core end processing2x (0.25 ... 1.5 mm²)
● at AWG cables solid2x (24 ... 16)
● at AWG cables stranded2x (24 ... 16)
connectable conductor cross-section
● solid0.25 ... 1.5 mm²
● finely stranded with core end processing0.25 ... 1.5 mm²
● finely stranded without core end processing0.25 ... 1.5 mm²
AWG number as coded connectable conductor cross section
● solid24 ... 16
● stranded24 ... 16
Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on mounting
height94 mm
width22.5 mm
depth91 mm
required spacing
● with side-by-side mounting
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
● for grounded parts
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
● for live parts
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
installation altitude at height above sea level maximum2 000 m
ambient temperature
● during operation-25 ... +60 °C
● during storage-40 ... +85 °C
● during transport-40 ... +85 °C
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

CCC

Confirmation

UL

EAC

RCM

EC/EU-Declaration of Conformity

Test CertificatesMarine / ShippingotherRailway

Type Test Certificates/Test Report

Special Test Certificate

LR (Lloyds Register)

DNV-GL

Confirmation

Vibration and Shock

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Derating
last modified:12/21/2020
Date
5/9/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3UG4513-2BR20
Product DescriptionAnalog monitoring relay Phase failure and sequence Adjustable undervoltage Asymmetry 20% fixed 3 x 160 to 690 V 50 to 60 Hz AC Hysteresis 5% fixed Delay time 0-20 s 2 change-over contacts spring-type connection system
Product familyLine monitoring
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41H / 41H
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works20 Day/Days
Net Weight (kg)0,140 Kg
Packaging Dimension29,00 x 99,00 x 107,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209642560
UPC754554960753
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group5885
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-18-03
eClass7.127-37-18-03
eClass827-37-18-03
eClass927-37-18-03
eClass9.127-37-18-03
ETIM5EC001441
ETIM6EC001441
ETIM7EC001441
ETIM8EC001441
IDEA44727
UNSPSC1439-12-15-21
UNSPSC1539-12-15-21

ETIM data

ETIM: EC001441 - Phase monitoring relay

Value Unit
Type of electric connection (EF003961) Spring clamp connection
With detachable clamps (EF003340) true
Rated control supply voltage Us at AC 50HZ (EF003978) ['160.0', '690.0']V
Rated control supply voltage Us at AC 60HZ (EF003979) ['160.0', '690.0']V
Rated control supply voltage Us at DC (EF003980) ['-', '-']V
Voltage type for actuating (EF008242) AC
Phase sequence monitoring (EF003412) true
Phase failure detection (EF003413) true
Function under voltage detection (EF003414) true
Function over voltage detection (EF003415) false
Phase imbalance monitoring (EF003416) true
Voltage measuring range (EF002486) ['160', '690']V
Min. adjustable delay-on energization time (EF008190) -s
Max. permitted delay-on energization time (EF008189) -s
Min. adjustable off-delay time (EF008192) -s
Max. permitted off-delay time (EF008191) -s
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 2
Width (EF000008) 22.5mm
Height (EF000040) 94.0mm
Depth (EF000049) 91.0mm
