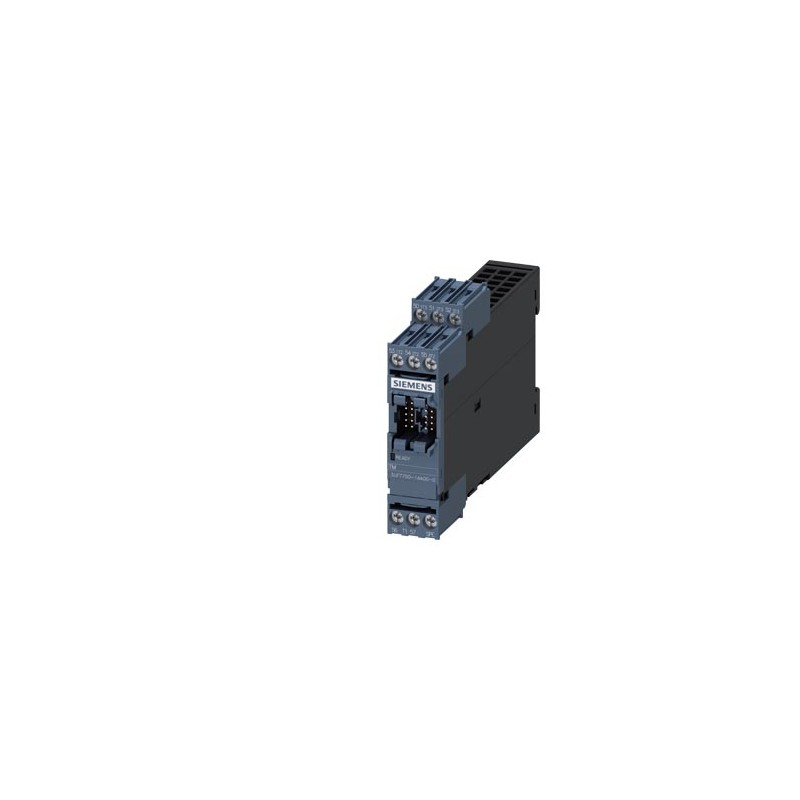

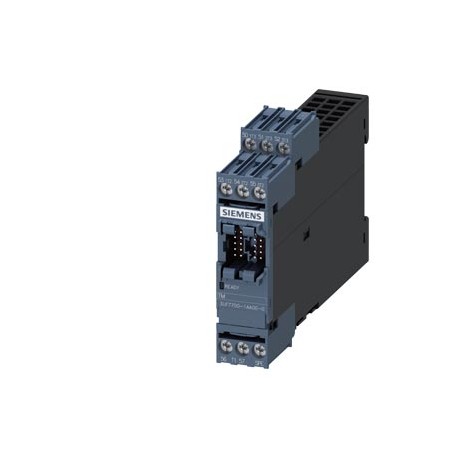

3UF7700-1AA00-0 SIEMENS Temperature module, 3 inputs for connection of up to 3 temperature sensors, for SIMO.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3UF7700-1AA00-0 SIEMENS Temperature module, 3 inputs for connection of up to 3 temperature sensors, for SIMO..

3UF7700-1AA00-0

SIEMENS

Temperature module, 3 inputs for connection of up to 3 temperature sensors, for SIMOCODE pro V basic unit

More details


CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $525.47
Unit price: $525.47
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Temperature module, 3 inputs for connection of up to 3 temperature sensors, for SIMOCODE pro V basic unit
product brand nameSIRIUS
product designationtemperature module
General technical data
product component
● input for thermistor connectionNo
● input for analog temperature sensorsYes
● input for ground fault detectionNo
consumed active power0.2 W
surge voltage resistance rated value4 000 V
protection class IPIP20
shock resistance according to IEC 60068-2-2715g / 11 ms
vibration resistance according to IEC 60068-2-61 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g
reference code according to IEC 81346-2B
measurable temperature
● initial value-50 °C
● full-scale value500 °C
Substance Prohibitance (Date)05/01/2012
measurable temperature
● with NTC minimum80 °C
● with NTC maximum160 °C
● with KTY 84 minimum-40 °C
● with KTY 84 maximum300 °C
● with KTY 83-110 minimum-50 °C
● with KTY 83-110 maximum175 °C
● with Pt 1000 minimum-50 °C
● with Pt 1000 maximum500 °C
● with Pt 100 minimum-50 °C
● with Pt 100 maximum500 °C
relative temperature-related measurement deviation at 20 °C2 %
sensor current for Pt 100 typical1 mA
sensor current for Pt 1000/KTY 83-110/KTY 84/NTC typical0.2 mA
diagnostics function at sensor input with Pt 100
● short-circuit detectionYes
● open-circuit detectionYes
diagnostics function at sensor input with Pt 1000
● short-circuit detectionYes
● open-circuit detectionYes
diagnostics function at sensor input with KTY 83-110
● short-circuit detectionYes
● open-circuit detectionYes
diagnostics function at sensor input with KTY 84
● short-circuit detectionYes
● open-circuit detectionYes
diagnostics function at sensor input with NTC
● short-circuit detectionYes
● open-circuit detectionNo
type of connection technology of sensor circuit2-wire or 3-wire connection
A/D conversion time at sensor circuit500 ms
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1class A
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
conducted interference
● due to burst according to IEC 61000-4-41 kV
● due to conductor-earth surge according to IEC 61000-4-52 kV
● due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
Inputs/ Outputs
number of inputs3
number of digital inputs0
number of analog inputs3
number of outputs as contact-affected switching element0
number of analog outputs0
Protective and monitoring functions
design of the sensor for temperature measurement connectablePT100 / PT1000 / KTY83-110 / KTY84 / NTC
Precision
temperature drift per °C0.05 %/°C
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew and snap-on mounting
height92 mm
width22.5 mm
depth124 mm
required spacing
● top40 mm
● bottom40 mm
● left0 mm
● right0 mm
Connections/ Terminals
type of connectable conductor cross-sections
● solid1x (0.5 ... 4.0 mm²), 2x (0.5 ... 2.5 mm²)
● finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)
● at AWG cables solid1x (20 ... 14), 2x (20 ... 16)
● at AWG cables stranded1x (20 ... 12), 2x (20 ... 14)
tightening torque with screw-type terminals0.8 ... 1.2 N·m
tightening torque [lbf·in] with screw-type terminals7 ... 10.3 lbf·in
Ambient conditions
installation altitude at height above sea level
● 1 maximum2 000 m
● 2 maximum3 000 m; max. +50 °C (no protective separation)
● 3 maximum4 000 m; max. +40 °C (no protective separation)
ambient temperature
● during operation-25 ... +60 °C
● during storage-40 ... +80 °C
● during transport-40 ... +80 °C
environmental category
● during operation according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
● during storage according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
● during transport according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
relative humidity during operation5 ... 95 %
Safety related data
touch protection against electrical shockfinger-safe
Galvanic isolation
galvanic isolation between inputs and electronicsNo
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

CSA

Confirmation

UL

EAC

RCM

EC/EU-Declaration of Conformity

Test CertificatesMarine / Shippingother

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

RMRS / Russian Maritime Register

DNV-GL

Confirmation

PROFIBUS-Certification

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Test report No. A0258, protective separation
last modified:4/7/2022
Date
5/10/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3UF7700-1AA00-0
Product DescriptionTemperature module, 3 inputs for connection of up to 3 temperature sensors, for SIMOCODE pro V basic unit
Product familySIMOCODE pro 3UF7 motor management and control devices
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42J / 42J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works1 Day/Days
Net Weight (kg)0,139 Kg
Packaging Dimension28,00 x 108,50 x 147,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209628397
UPC754554901947
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group5836
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-08-05
eClass7.127-37-08-05
eClass827-37-08-05
eClass927-37-08-05
eClass9.127-37-08-05
ETIM5EC002613
ETIM6EC002613
ETIM7EC002613
ETIM8EC002613
IDEA44776
UNSPSC1432-15-17-05
UNSPSC1539-12-15-52

ETIM data

ETIM: EC002613 - Extension module for motor management device

Value Unit
Degree of protection (NEMA) (EF011959) -
Voltage type for actuating (EF008242) -
Switching function (EF000189) -
Model (EF000010) Temperature module
Rated control supply voltage Us at DC (EF003980) ['-', '-']V
Number of analogue inputs (EF001994) 3
Number of analogue outputs (EF001995) 0
Number of outputs, with contact (EF006936) 0
Number of electronic outputs (EF006929) -
Number of binary inputs (EF003817) 0
Input for thermistor connection (EF007116) false
Input for earth fault detection (EF007115) false
Input for analogue temperature sensor (EF007114) true
Type of electrical connection for auxiliary- and control current circuit (EF006979) Screw connection
Degree of protection (IP) (EF005474) IP20
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Rated control supply voltage Us at AC 60HZ (EF003979) -V
