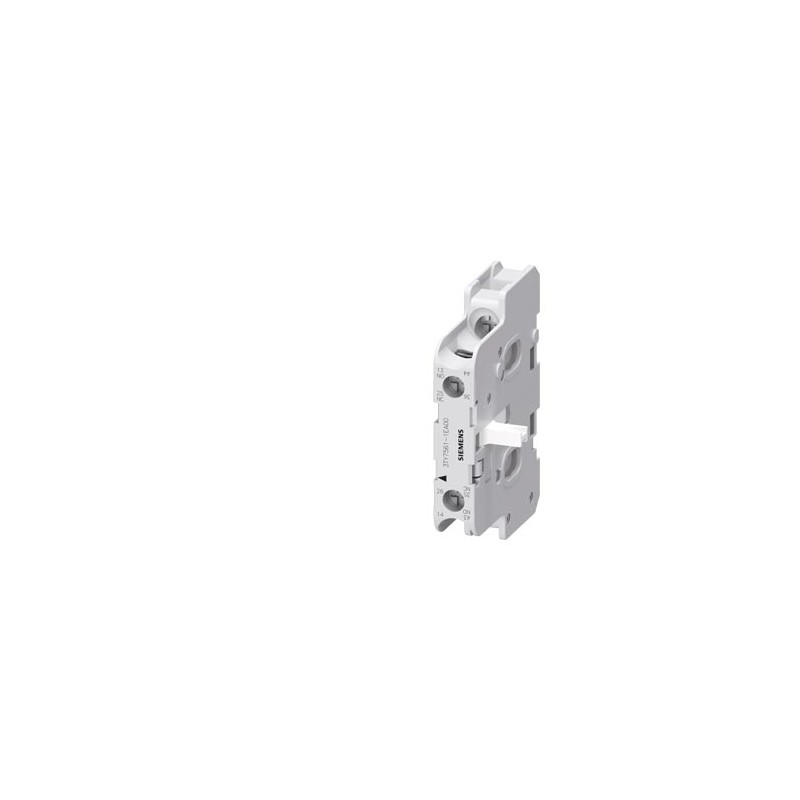

3TY7561-1EA00 SIEMENS Auxiliary switch block for size 2...14 Auxiliary switch block left or right View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3TY7561-1EA00 SIEMENS Auxiliary switch block for size 2...14 Auxiliary switch block left or right

3TY7561-1EA00

SIEMENS

Auxiliary switch block for size 2...14 Auxiliary switch block left or right

AUXILIARY CONTACTORS BLOCK FOR SIZE 2...14 CONTACT BLOCK. LEFT OR RIGHT AUXILIARIES.

More details


CONTROL AND CONTACTORS > Contactors for switching motors

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $44.37
Unit price: $44.37
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Auxiliary switch block for size 2...14 Auxiliary switch block left or right
General technical data
suitability for useContactor relay and power contactor
protection class IP on the frontIP20
ambient temperature
● during storage-55 ... +80 °C
● during operation-25 ... +55 °C
mechanical service life (switching cycles) typical10 000 000
insulation voltage with degree of pollution 3 at AC rated value690 V
surge voltage resistance rated value6 kV
Auxiliary circuit
number of NC contacts for auxiliary contacts
● instantaneous contact0
● lagging switching1
number of NO contacts for auxiliary contacts
● instantaneous contact1
● leading contact0
operational current of auxiliary contacts at AC-12
● at 24 V10 A
● at 230 V10 A
● maximum10 A
operational current
● of auxiliary contacts
— at AC-14
— at 125 V10 A
— at AC-15
— at 24 V10 A
— at 230 V5.6 A
— at 400 V3.6 A
● at AC-15 at 690 V rated value2.3 A
operational current
● of auxiliary contacts at DC-12
— at 24 V10 A
— at 110 V3.2 A
— at 220 V0.9 A
operational current
● of auxiliary contacts at DC-13
— at 24 V6 A
— at 110 V0.98 A
Installation/ mounting/ dimensions
fastening methodsnap-on mounting
width12 mm
height70 mm
depth51.5 mm
Connections/ Terminals
type of electrical connection for auxiliary and control circuitscrew-type terminals
type of connectable conductor cross-sections
● for auxiliary contacts
— finely stranded
— with core end processing2x (0.5 ... 1.0 mm²), 2x (0.75 ... 2.5 mm²)
● at AWG cables for auxiliary contacts2x (18 ... 12)
Safety related data
product function positively driven operation according to IEC 60947-5-1Yes
Certificates/ approvals

Downloads and manuals

General Product Approval

CSA

CCC

Confirmation

UL

KC

EAC

Declaration of ConformityTest Certificatesother

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Special Test Certificate

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/23/2020
Date
5/5/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3TY7561-1EA00
Product DescriptionAuxiliary switch block for size 2...14 Auxiliary switch block left or right
Product familyFor 3TF6 vacuum contactors
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41B / 41B
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works20 Day/Days
Net Weight (kg)0,052 Kg
Packaging Dimension49,00 x 52,00 x 73,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209363717
UPC754554735740
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5805
Group CodeR711
Country of originTurkey
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-13-02
eClass7.127-37-13-02
eClass827-37-13-02
eClass927-37-13-02
eClass9.127-37-13-02
ETIM5EC000041
ETIM6EC000041
ETIM7EC000041
ETIM8EC000041
IDEA44743
UNSPSC1439-12-15-21
UNSPSC1539-12-15-22

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3TY7561-1EA00 3TY7561-1EA00 EN_3TY7561-1EA00.pdf 251 Kbytes 3TY7561-1EA00 3TY7561-1EA00 EN_3TY7561-1EA00.pdf
