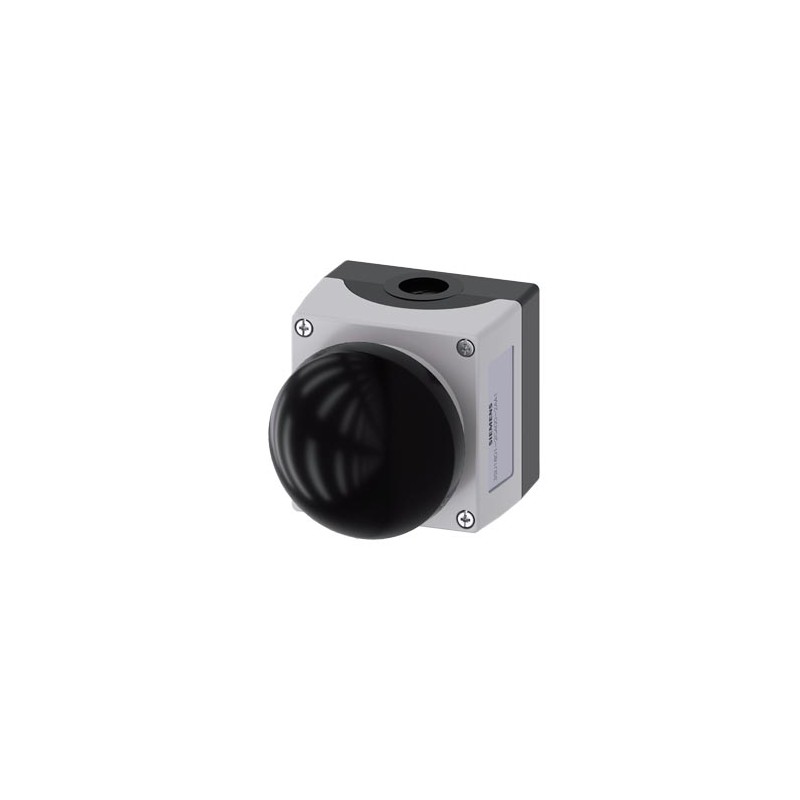

3SU1801-2GA00-2AA1
SIEMENS
1
Enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 1 control point plastic, Control point in center, A=palm pushbutton black, momentary contact type, 1 NO, screw terminal, Floor mounting
CONTROL AND CONTACTORS > Commanding and signaling devices
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 1 control point plastic, Control point in center, A=palm pushbutton black, momentary contact type, 1 NO, screw terminal, Floor mounting | ||||||||||||||||||||||||||||||||||||||
product brand name | SIRIUS ACT | |||||||||||||||||||||||||||||||||||||
product designation | Enclosures | |||||||||||||||||||||||||||||||||||||
product type designation | 3SU1 | |||||||||||||||||||||||||||||||||||||
equipment of commanding and signaling device | A = Palm switch, momentary-contact type | |||||||||||||||||||||||||||||||||||||
manufacturer's article number | ||||||||||||||||||||||||||||||||||||||
● of supplied contact module | A2 = 3SU1400-2AA10-1BA0 | |||||||||||||||||||||||||||||||||||||
● of supplied contact module at the command point A 2 | 3SU1400-2AA10-1BA0 | |||||||||||||||||||||||||||||||||||||
● of the supplied holder | A = 3SU1500-0AA10-0AA0 | |||||||||||||||||||||||||||||||||||||
● of the supplied holder at the command point A | 3SU1500-0AA10-0AA0 | |||||||||||||||||||||||||||||||||||||
Enclosure | ||||||||||||||||||||||||||||||||||||||
design of the housing | Command point in center | |||||||||||||||||||||||||||||||||||||
shape of the enclosure front | Square | |||||||||||||||||||||||||||||||||||||
material of the enclosure | plastic | |||||||||||||||||||||||||||||||||||||
number of command points | 1 | |||||||||||||||||||||||||||||||||||||
product component | ||||||||||||||||||||||||||||||||||||||
● EMERGENCY STOP device | No | |||||||||||||||||||||||||||||||||||||
● protective collar | No | |||||||||||||||||||||||||||||||||||||
color of the enclosure top part | grey | |||||||||||||||||||||||||||||||||||||
delivery state | ||||||||||||||||||||||||||||||||||||||
● as a kit | No | |||||||||||||||||||||||||||||||||||||
● pre-wired on strip terminal | No | |||||||||||||||||||||||||||||||||||||
fastening method of the enclosure | Vertical | |||||||||||||||||||||||||||||||||||||
Actuator | ||||||||||||||||||||||||||||||||||||||
design of the actuating element | Palm switch | |||||||||||||||||||||||||||||||||||||
suitability for use EMERGENCY OFF switch | No | |||||||||||||||||||||||||||||||||||||
product feature lockout | No | |||||||||||||||||||||||||||||||||||||
product extension optional light source | No | |||||||||||||||||||||||||||||||||||||
color of the actuating element | black | |||||||||||||||||||||||||||||||||||||
material of the actuating element | plastic | |||||||||||||||||||||||||||||||||||||
shape of the actuating element | round | |||||||||||||||||||||||||||||||||||||
number of contact modules | 1 | |||||||||||||||||||||||||||||||||||||
type of unlocking device | A = without | |||||||||||||||||||||||||||||||||||||
Front ring | ||||||||||||||||||||||||||||||||||||||
product component front ring | No | |||||||||||||||||||||||||||||||||||||
design of the front ring | Standard | |||||||||||||||||||||||||||||||||||||
material of the front ring | plastic | |||||||||||||||||||||||||||||||||||||
color of the front ring | black | |||||||||||||||||||||||||||||||||||||
Holder | ||||||||||||||||||||||||||||||||||||||
material of the holder | Plastic | |||||||||||||||||||||||||||||||||||||
Display | ||||||||||||||||||||||||||||||||||||||
number of LED modules | 0 | |||||||||||||||||||||||||||||||||||||
General technical data | ||||||||||||||||||||||||||||||||||||||
product function | ||||||||||||||||||||||||||||||||||||||
● positive opening | No | |||||||||||||||||||||||||||||||||||||
● EMERGENCY OFF function | No | |||||||||||||||||||||||||||||||||||||
● EMERGENCY STOP function | No | |||||||||||||||||||||||||||||||||||||
protection class IP | IP66, IP67, IP69(IP69K) | |||||||||||||||||||||||||||||||||||||
degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12K, 13 | |||||||||||||||||||||||||||||||||||||
shock resistance | ||||||||||||||||||||||||||||||||||||||
● according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms | |||||||||||||||||||||||||||||||||||||
● for railway applications according to EN 61373 | Category 1, Class B | |||||||||||||||||||||||||||||||||||||
vibration resistance | ||||||||||||||||||||||||||||||||||||||
● according to IEC 60068-2-6 | 10 ... 500 Hz: 5g | |||||||||||||||||||||||||||||||||||||
● for railway applications according to EN 61373 | Category 1, Class B | |||||||||||||||||||||||||||||||||||||
reference code according to IEC 81346-2 | S | |||||||||||||||||||||||||||||||||||||
continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A | |||||||||||||||||||||||||||||||||||||
continuous current of the quick DIAZED fuse link | 10 A | |||||||||||||||||||||||||||||||||||||
continuous current of the DIAZED fuse link gG | 10 A | |||||||||||||||||||||||||||||||||||||
Substance Prohibitance (Date) | 10/01/2014 | |||||||||||||||||||||||||||||||||||||
operating voltage | ||||||||||||||||||||||||||||||||||||||
● at AC | ||||||||||||||||||||||||||||||||||||||
— at 50 Hz rated value | 5 ... 500 V | |||||||||||||||||||||||||||||||||||||
— at 60 Hz rated value | 5 ... 500 V | |||||||||||||||||||||||||||||||||||||
● at DC rated value | 5 ... 500 V | |||||||||||||||||||||||||||||||||||||
Communication/ Protocol | ||||||||||||||||||||||||||||||||||||||
design of the interface for communication | without | |||||||||||||||||||||||||||||||||||||
Auxiliary circuit | ||||||||||||||||||||||||||||||||||||||
design of the contact of auxiliary contacts | Silver alloy | |||||||||||||||||||||||||||||||||||||
number of NC contacts for auxiliary contacts | 0 | |||||||||||||||||||||||||||||||||||||
number of NO contacts for auxiliary contacts | 1 | |||||||||||||||||||||||||||||||||||||
Connections/ Terminals | ||||||||||||||||||||||||||||||||||||||
type of electrical connection of modules and accessories | Screw-type terminal | |||||||||||||||||||||||||||||||||||||
type of electrical connection on enclosure | Cable routing above and below, both 1 x M20 | |||||||||||||||||||||||||||||||||||||
tightening torque of the screws in the bracket | 1 ... 1.2 N·m | |||||||||||||||||||||||||||||||||||||
tightening torque of fixing screws in the enclosure cover | 1.5 ... 1.7 N·m | |||||||||||||||||||||||||||||||||||||
tightening torque with screw-type terminals | 0.8 ... 0.9 N·m | |||||||||||||||||||||||||||||||||||||
Ambient conditions | ||||||||||||||||||||||||||||||||||||||
ambient temperature | ||||||||||||||||||||||||||||||||||||||
● during operation | -25 ... +70 °C | |||||||||||||||||||||||||||||||||||||
● during storage | -40 ... +80 °C | |||||||||||||||||||||||||||||||||||||
environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel) | |||||||||||||||||||||||||||||||||||||
Installation/ mounting/ dimensions | ||||||||||||||||||||||||||||||||||||||
fastening method of modules and accessories | Floor mounting | |||||||||||||||||||||||||||||||||||||
height | 85 mm | |||||||||||||||||||||||||||||||||||||
width | 85 mm | |||||||||||||||||||||||||||||||||||||
depth | 119 mm | |||||||||||||||||||||||||||||||||||||
shape of the installation opening | round | |||||||||||||||||||||||||||||||||||||
Accessories | ||||||||||||||||||||||||||||||||||||||
number of labels | 1 | |||||||||||||||||||||||||||||||||||||
marking of the name plate for command devices | A = I | |||||||||||||||||||||||||||||||||||||
color of the label | A = black | |||||||||||||||||||||||||||||||||||||
number of inscription plates | 0 | |||||||||||||||||||||||||||||||||||||
Certificates/ approvals | ||||||||||||||||||||||||||||||||||||||
Downloads and manuals | ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
Further information | ||||||||||||||||||||||||||||||||||||||
Information- and Downloadcenter (Catalogs, Brochures,…) | ||||||||||||||||||||||||||||||||||||||
Industry Mall (Online ordering system) | ||||||||||||||||||||||||||||||||||||||
Cax online generator | ||||||||||||||||||||||||||||||||||||||
Service&Support (Manuals, Certificates, Characteristics, FAQs,...) | ||||||||||||||||||||||||||||||||||||||
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...) | ||||||||||||||||||||||||||||||||||||||
last modified: | 1/26/2022 | |||||||||||||||||||||||||||||||||||||
Date 5/2/2022 | Subject to change without notice © Copyright Siemens 2022 |
Product | |||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | 3SU1801-2GA00-2AA1 | ||||||||||||||||||||||||||||||
Product Description | Enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 1 control point plastic, Control point in center, A=palm pushbutton black, momentary contact type, 1 NO, screw terminal, Floor mounting | ||||||||||||||||||||||||||||||
Product family | Pushbuttons and indicator lights in the enclosure for AS-Interface | ||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
Price data | |||||||||||||||||||||||||||||||
Region Specific PriceGroup / Headquarter Price Group | 41J / 41J | ||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
Metal Factor | LAO----- | ||||||||||||||||||||||||||||||
Delivery information | |||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||
Standard lead time ex-works | 55 Day/Days | ||||||||||||||||||||||||||||||
Net Weight (kg) | 0,390 Kg | ||||||||||||||||||||||||||||||
Packaging Dimension | 93,00 x 130,00 x 99,00 | ||||||||||||||||||||||||||||||
Package size unit of measure | MM | ||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
Additional Product Information | |||||||||||||||||||||||||||||||
EAN | 4011209970304 | ||||||||||||||||||||||||||||||
UPC | 804766408878 | ||||||||||||||||||||||||||||||
Commodity Code | 85365080 | ||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||
Product Group | 5452 | ||||||||||||||||||||||||||||||
Group Code | R711 | ||||||||||||||||||||||||||||||
Country of origin | China | ||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 | ||||||||||||||||||||||||||||||
Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
Classifications | |||||||||||||||||||||||||||||||
|
Value | Unit | |
---|---|---|
Degree of protection (IP) (EF005474) | - | |
Number of command positions (EF001372) | 1 | |
Number of push buttons (EF005558) | 1 | |
Number of indicator lights (EF001965) | 0 | |
Number of key switches (EF005590) | 0 | |
Number of selector switches (EF005567) | 0 | |
Number of mushroom-shaped push-buttons (EF006670) | 0 | |
Suitable for emergency stop (EF001433) | false | |
Rated control supply voltage Us at AC 50HZ (EF003978) | ['5', '500'] | V |
Rated control supply voltage Us at AC 60HZ (EF003979) | ['5', '500'] | V |
Rated control supply voltage Us at DC (EF003980) | ['5', '500'] | V |
Colour housing cover (EF001373) | Grey | |
Material housing (EF001596) | Plastic | |
Number of contacts as normally open contact (EF008256) | 1 | |
Number of contacts as normally closed contact (EF008255) | 0 | |
Number of contacts as change-over contact (EF008257) | 0 | |
Degree of protection (NEMA) (EF011959) | NEMA 1, 2, 3, 3R, 4, 4X, 12K, 13 |
Title: | Size: | Type: |
---|---|---|
3SU1801-2GA00-2AA1 3SU1801-2GA00-2AA1 EN_3SU1801-2GA00-2AA1.pdf | 243 Kbytes |
