> SIEMENS>CONTROL AND CONTACTORS>Commanding and signaling devices>3SU1400-2HK10-6AA0 SIEMENS Electronics module for IO-Link, black, 8 inputs/outputs, 6 DI/2 DQ, Push-in, for ..
Previous Product Next Product

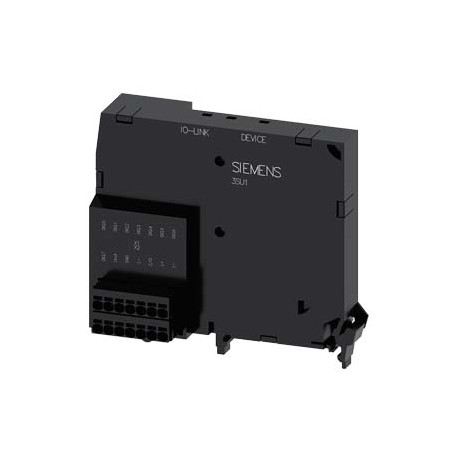

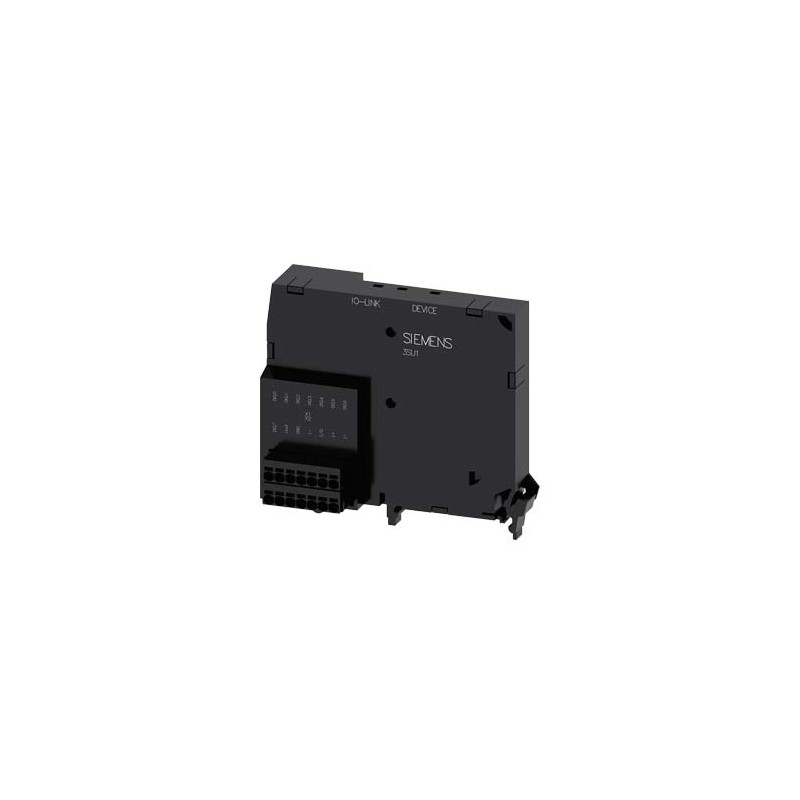

3SU1400-2HK10-6AA0 SIEMENS Electronics module for IO-Link, black, 8 inputs/outputs, 6 DI/2 DQ, Push-in, for .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1400-2HK10-6AA0 SIEMENS Electronics module for IO-Link, black, 8 inputs/outputs, 6 DI/2 DQ, Push-in, for ..

3SU1400-2HK10-6AA0

SIEMENS

Electronics module for IO-Link, black, 8 inputs/outputs, 6 DI/2 DQ, Push-in, for floor mounting

More details


Low-voltage industrial components > Accessories/spare parts for command devices

CONTROL AND CONTACTORS > Commanding and signaling devices

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $132.92
Unit price: $132.92

Quantity Price
1+$132.92
2+$117.70
3+$117.70
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Electronics module for IO-Link, black, 8 inputs/outputs, 6 DI/2 DQ, Push-in, for floor mounting
product brand nameSIRIUS ACT
product designationElectronic module for IO-Link
product type designation3SU1
General technical data
insulation voltage rated value30 V
degree of pollution3
type of voltage
● of the operating voltageDC
● of the input voltageDC
surge voltage resistance rated value0.8 kV
consumed current maximum41 mA
protection class IPIP20
shock resistance for railway applications according to EN 61373Category 1, Class B
vibration resistance for railway applications according to EN 61373Category 1, Class B
reference code according to IEC 81346-2P
Substance Prohibitance (Date)10/01/2014
operating voltage rated value18 ... 30 V
operating voltage 1 at DC rated value24 V
Communication/ Protocol
protocol is supported
● AS-Interface protocolNo
● IO-Link protocolYes
IO-Link transfer rateCOM2 (38,4 kBaud)
point-to-point cycle time between master and IO-Link device minimum10 ms
type of voltage supply via input/output link masterYes
data volume
● of the address range of the inputs with cyclical transfer total3 byte
● of the address range of the outputs with cyclical transfer total1 byte
Inputs/ Outputs
number of digital inputs6
number of digital outputs2
Connections/ Terminals
type of electrical connectionspring-loaded terminal (push-in)
type of connectable conductor cross-sections
● solid with core end processing1x (0.14 ... 0.5 mm²)
● solid without core end processing1x (0.14 ... 0.5 mm²)
● finely stranded without core end processing1x (0.2 ... 0.5 mm²)
● at AWG cables1x (26 ... 20)
Product Function
suitability for use safety-related circuitsNo
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 ... 95%, no condensation in operation permitted)
Installation/ mounting/ dimensions
fastening method of modules and accessoriesFloor mounting
height57.5 mm
width23.8 mm
depth53.5 mm
Measuring circuit
product function6DI / 2DQ
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of ConformityTest Certificates

Confirmation

EAC

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Special Test Certificate

Type Test Certificates/Test Report

other

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/27/2022
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1400-2HK10-6AA0
Product DescriptionElectronics module for IO-Link, black, 8 inputs/outputs, 6 DI/2 DQ, Push-in, for floor mounting
Product familyModules
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works80 Day/Days
Net Weight (kg)0,044 Kg
Packaging Dimension60,00 x 77,00 x 50,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621006802
UPC804766251597
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group5453
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-92-01
eClass7.127-37-92-01
eClass827-37-92-01
eClass927-37-92-01
eClass9.127-37-92-01
ETIM5EC002498
ETIM6EC002498
ETIM7EC002498
ETIM8EC002498
IDEA44771
UNSPSC1539-12-15-44

ETIM data

ETIM: EC002024 - Accessories/spare parts for command devices

Value Unit
Type of electrical accessory/spare part (EF005722) other / Electronic module
Type of mechanical accessory/spare part (EF005994) -


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG SIEMENS SIRIUS INDUSTRIAL CONTROLS EN.pdf 279 Mbytes
3SU1400-2HK10-6AA0 3SU1400-2HK10-6AA0 EN_3SU1400-2HK10-6AA0.pdf 158 Kbytes 3SU1400-2HK10-6AA0 3SU1400-2HK10-6AA0 EN_3SU1400-2HK10-6AA0.pdf
