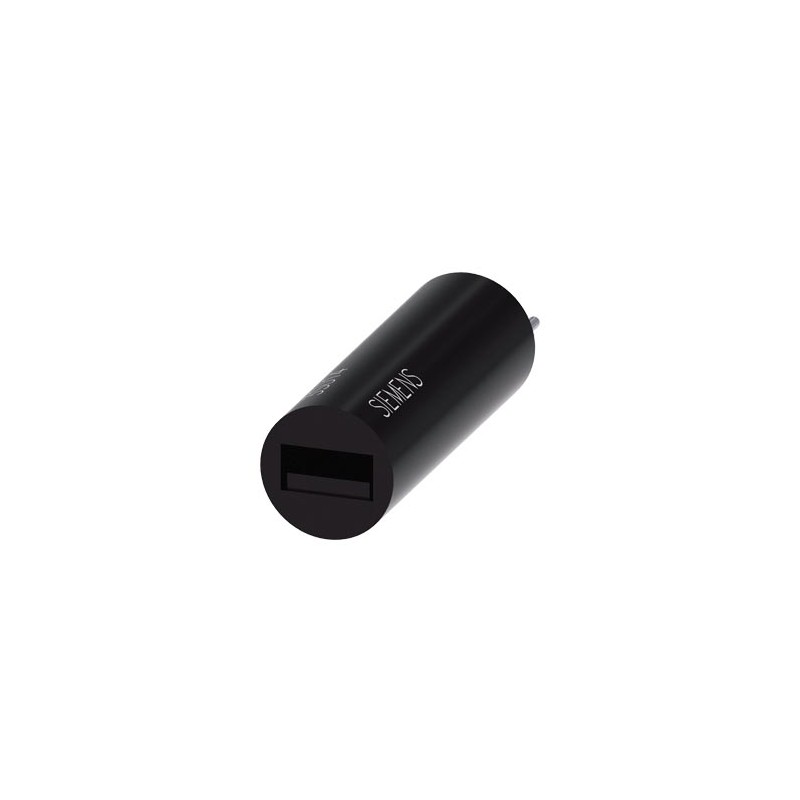

3SU1401-3BA00-5AA0 SIEMENS LED module with integrated LED, 5 V DC, amber, solder terminal, for use on printe.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1401-3BA00-5AA0 SIEMENS LED module with integrated LED, 5 V DC, amber, solder terminal, for use on printe..

3SU1401-3BA00-5AA0

SIEMENS

LED module with integrated LED, 5 V DC, amber, solder terminal, for use on printed circuit boards

More details


Low-voltage industrial components > Lamp holder block for control circuit devices

CONTROL AND CONTACTORS > Commanding and signaling devices

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $19.78
Unit price: $19.78

Quantity Price
1+$19.78
2+$19.78
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

LED module with integrated LED, 5 V DC, amber, solder terminal, for use on printed circuit boards
product brand nameSIRIUS ACT
product designationLED module
product type designation3SU1
General technical data
product component
● diodeYes
● lamp transformerNo
● light sourceYes
● series resistorNo
insulation voltage rated value30 V
degree of pollution3
type of voltage of the operating voltageDC
● for actuationDC
surge voltage resistance rated value0.8 kV
consumed current maximum20 mA
protection class IP
● of the enclosureIP40
● of the terminalIP20
shock resistance
● according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
● for railway applications according to EN 61373Category 1, Class B
vibration resistance
● according to IEC 60068-2-610 ... 500 Hz: 5g
● for railway applications according to EN 61373Category 1, Class B
operating period typical100 000 h
reference code according to IEC 81346-2P
Substance Prohibitance (Date)10/01/2014
operating voltage 1
● at DC rated value5 V
relative positive tolerance of the operating voltage20 %
relative negative tolerance of the operating voltage20 %
Control circuit/ Control
inrush current maximum0.1 A
Connections/ Terminals
type of electrical connectionSocket connection (THT)
Lamp
type of light sourceLED
color of the light sourceamber
light intensity450 ... 1 120 mcd
certificate of suitability
● ATEXNo
● IECExNo
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted)
Installation/ mounting/ dimensions
fastening method
● of modules and accessoriesPrinted circuit board
height8.1 mm
width8.1 mm
depth30.6 mm
suitability for integration
● plastic enclosureNo
● metal enclosureNo
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CSA

Confirmation

UR

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Test CertificatesMarine / Shipping

Type Test Certificates/Test Report

Special Test Certificate

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

Marine / Shippingother

RMRS / Russian Maritime Register

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:3/9/2022
Date
5/13/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1401-3BA00-5AA0
Product DescriptionLED module with integrated LED, 5 V DC, amber, solder terminal, for use on printed circuit boards
Product familyModules
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorL-O-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works30 Day/Days
Net Weight (kg)0,008 Kg
Packaging Dimension101,00 x 77,00 x 22,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209944275
UPC804766074677
Commodity Code85414100
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-12-09
eClass7.127-37-12-09
eClass827-37-12-09
eClass927-37-12-09
eClass9.127-37-12-09
ETIM5EC000204
ETIM6EC000204
ETIM7EC000204
ETIM8EC000204
IDEA44771
UNSPSC1539-12-15-44

ETIM data

ETIM: EC000204 - Lamp holder block for control circuit devices

Value Unit
Type of fastening (EF002442) -
Connection type auxiliary circuit (EF006820) -
Transformer integrated (EF001358) false
With integrated voltage decreasing resistor (EF001399) false
With light source (EF005905) true
With integrated diode (EF001400) true
Lamp holder (EF000048) None
Rated voltage Ue at AC 50 Hz (EF007029) ['-', '-']V
Rated voltage Ue at AC 60 Hz (EF007030) ['-', '-']V
Rated voltage Ue at DC (EF007031) ['5', '5']V
Voltage type for actuating (EF008242) DC
Lamp type (EF002423) LED
Colour lamp (EF001402) Orange


Datasheet - PDF

▲
