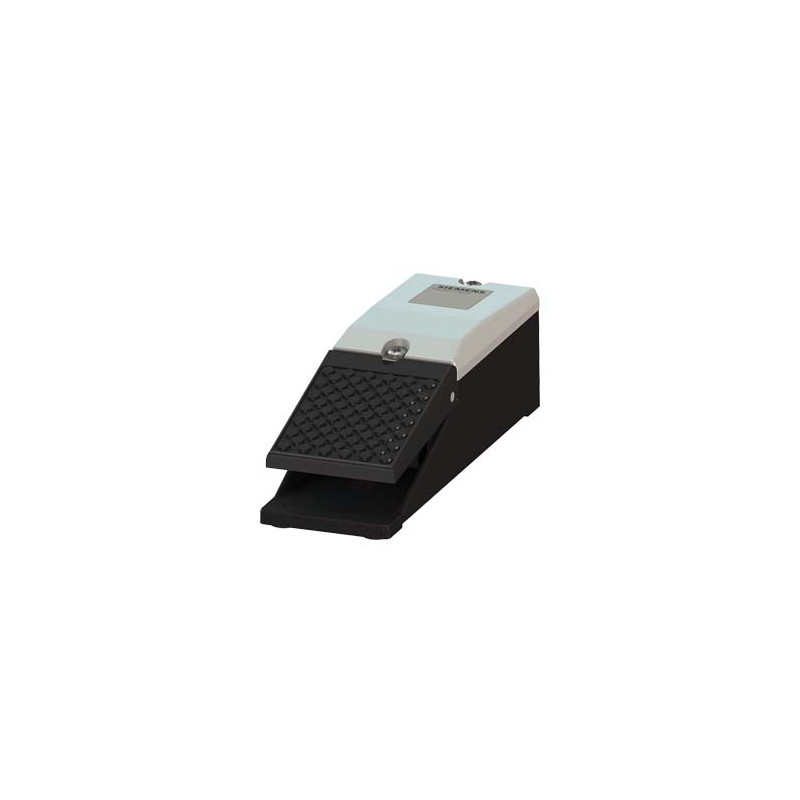

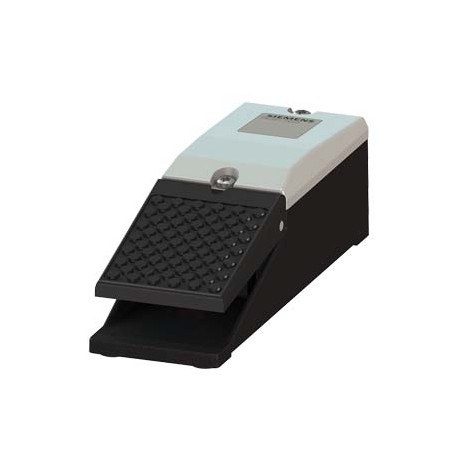

3SE2903-1AB20 SIEMENS Momentary-contact foot switch, 1-pedal without cover, without latching Metal enclosure..
3SE2903-1AB20
SIEMENS
Momentary-contact foot switch, 1-pedal without cover, without latching Metal enclosure IP65, 2 NO+2 NC, Cable entry M20 x 1.5
Low-voltage industrial components > Foot switch
CONTROL AND CONTACTORS > Limit Switches and safety relays
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
More info
▲Additional data
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3SE2903-1AB20 | ||||||||||||||||||||||||||||||||||||
| Product Description | Momentary-contact foot switch, 1-pedal without cover, without latching Metal enclosure IP65, 2 NO+2 NC, Cable entry M20 x 1.5 | ||||||||||||||||||||||||||||||||||||
| Product family | SIRIUS 3SE2, 3SE3 foot switches | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 60 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,720 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 80,00 x 240,00 x 75,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4011209576599 | ||||||||||||||||||||||||||||||||||||
| UPC | 040892825923 | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85365080 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
| Product Group | 3750 | ||||||||||||||||||||||||||||||||||||
| Group Code | R711 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | ||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC001258 - Foot switch
| Value | Unit | |
|---|---|---|
| Type of command (EF002399) | - | |
| Degree of protection (NEMA) (EF011959) | - | |
| With protection hood (EF002400) | false | |
| With interlocking (EF002401) | false | |
| Material (EF002169) | Metal | |
| With protective insulation (EF006523) | FALSE | |
| Colour (EF000007) | Grey | |
| Number of switch levels (EF000246) | 1 | |
| Number of contacts as normally closed contact (EF008255) | 2 | |
| Number of contacts as normally open contact (EF008256) | 2 | |
| Number of contacts as change-over contact (EF008257) | - | |
| Switching function latching (EF007447) | false | |
| Suitable for safety functions (EF001597) | false | |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 6 | A |
| Degree of protection (IP) (EF005474) | IP65 | |
| Width (EF000008) | 70.0 | mm |
| Height (EF000040) | 220.0 | mm |
| Depth (EF000049) | 61.0 | mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG SIEMENS SIRIUS INDUSTRIAL CONTROLS EN.pdf | 279 Mbytes |
|
| 3SE2903-1AB20 3SE2903-1AB20 EN_3SE2903-1AB20.pdf | 201 Kbytes |
|
