3SE2283-6GA53
SIEMENS
1

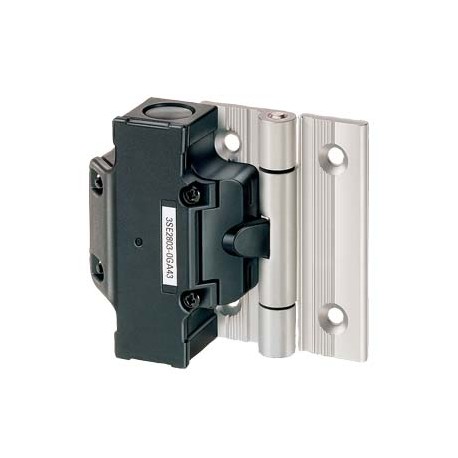

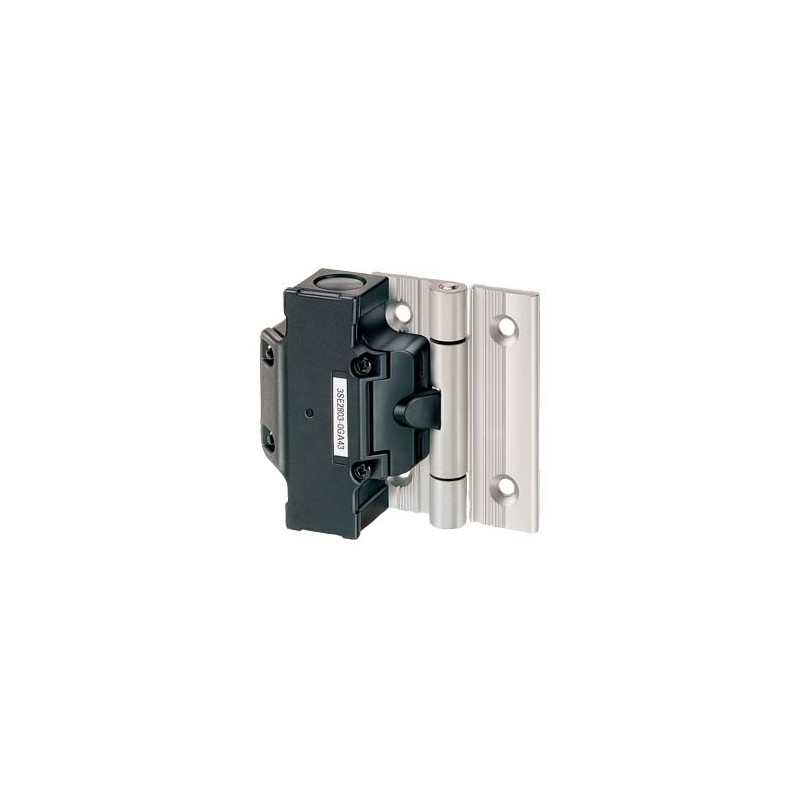

Hinge switch Molded-plastic enclosure with aluminum hinge 3xNC, Slow-action contacts for 40 mm profiles Supplied with additional hinge and fixing material Cable entry 2 x M20 x 1.5 Actuating angle 8°
CONTROL AND CONTACTORS > Limit Switches and safety relays
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Hinge switch Molded-plastic enclosure with aluminum hinge 3xNC, Slow-action contacts for 40 mm profiles Supplied with additional hinge and fixing material Cable entry 2 x M20 x 1.5 Actuating angle 8° | ||||||||||||||||||||||||||||||||||||||
product brand name | SIRIUS | |||||||||||||||||||||||||||||||||||||
product designation | Safety hinge switches | |||||||||||||||||||||||||||||||||||||
product type designation | 3SE228 | |||||||||||||||||||||||||||||||||||||
suitability for use safety switch | Yes | |||||||||||||||||||||||||||||||||||||
General technical data | ||||||||||||||||||||||||||||||||||||||
product function positive opening | Yes | |||||||||||||||||||||||||||||||||||||
insulation voltage rated value | 250 V | |||||||||||||||||||||||||||||||||||||
surge voltage resistance rated value | 4 kV | |||||||||||||||||||||||||||||||||||||
protection class IP | IP65 | |||||||||||||||||||||||||||||||||||||
shock resistance | 30g / 18 ms | |||||||||||||||||||||||||||||||||||||
vibration resistance | 10 ... 200 Hz: 20g | |||||||||||||||||||||||||||||||||||||
mechanical service life (switching cycles) typical | 1 000 000 | |||||||||||||||||||||||||||||||||||||
thermal current | 2.5 A | |||||||||||||||||||||||||||||||||||||
reference code according to IEC 81346-2 | B | |||||||||||||||||||||||||||||||||||||
active principle | mechanical | |||||||||||||||||||||||||||||||||||||
Substance Prohibitance (Date) | 07/01/2006 | |||||||||||||||||||||||||||||||||||||
length of the sensor | 92 mm | |||||||||||||||||||||||||||||||||||||
width of the sensor | 111.5 mm | |||||||||||||||||||||||||||||||||||||
design of the switching contact | mechanical | |||||||||||||||||||||||||||||||||||||
number of NC contacts for auxiliary contacts | 3 | |||||||||||||||||||||||||||||||||||||
number of NO contacts for auxiliary contacts | 0 | |||||||||||||||||||||||||||||||||||||
operational current at AC-15 | ||||||||||||||||||||||||||||||||||||||
● at 125 V rated value | 4.2 A | |||||||||||||||||||||||||||||||||||||
● at 230 V rated value | 2 A | |||||||||||||||||||||||||||||||||||||
operational current at DC-13 | ||||||||||||||||||||||||||||||||||||||
● at 24 V rated value | 1 A | |||||||||||||||||||||||||||||||||||||
design of the interface for safety-related communication | without | |||||||||||||||||||||||||||||||||||||
Enclosure | ||||||||||||||||||||||||||||||||||||||
design of the housing | special design | |||||||||||||||||||||||||||||||||||||
material of the enclosure | glass fiber reinforced thermoplast | |||||||||||||||||||||||||||||||||||||
coating of the enclosure | none | |||||||||||||||||||||||||||||||||||||
design of the housing according to standard | No | |||||||||||||||||||||||||||||||||||||
Drive Head | ||||||||||||||||||||||||||||||||||||||
design of the actuating element | rotary actuator | |||||||||||||||||||||||||||||||||||||
design of the switching function | positive opening | |||||||||||||||||||||||||||||||||||||
circuit principle | slow-action contacts | |||||||||||||||||||||||||||||||||||||
number of switching contacts safety-related | 3 | |||||||||||||||||||||||||||||||||||||
Connections/ Terminals | ||||||||||||||||||||||||||||||||||||||
type of electrical connection | screw-type terminals | |||||||||||||||||||||||||||||||||||||
type of connectable conductor cross-sections | ||||||||||||||||||||||||||||||||||||||
● finely stranded with core end processing | 1x (0,5 ... 1 mm²) | |||||||||||||||||||||||||||||||||||||
cable entry type | 2x (M20 x 1.5) | |||||||||||||||||||||||||||||||||||||
Communication/ Protocol | ||||||||||||||||||||||||||||||||||||||
design of the interface | without | |||||||||||||||||||||||||||||||||||||
Ambient conditions | ||||||||||||||||||||||||||||||||||||||
ambient temperature | ||||||||||||||||||||||||||||||||||||||
● during operation | -25 ... +65 °C | |||||||||||||||||||||||||||||||||||||
explosion protection category for dust | none | |||||||||||||||||||||||||||||||||||||
Installation/ mounting/ dimensions | ||||||||||||||||||||||||||||||||||||||
fastening method | screw fixing | |||||||||||||||||||||||||||||||||||||
Certificates/ approvals | ||||||||||||||||||||||||||||||||||||||
Downloads and manuals | ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
Further information | ||||||||||||||||||||||||||||||||||||||
Information- and Downloadcenter (Catalogs, Brochures,…) | ||||||||||||||||||||||||||||||||||||||
Industry Mall (Online ordering system) | ||||||||||||||||||||||||||||||||||||||
Cax online generator | ||||||||||||||||||||||||||||||||||||||
Service&Support (Manuals, Certificates, Characteristics, FAQs,...) | ||||||||||||||||||||||||||||||||||||||
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...) | ||||||||||||||||||||||||||||||||||||||
last modified: | 1/26/2022 | |||||||||||||||||||||||||||||||||||||
Date 5/5/2022 | Subject to change without notice © Copyright Siemens 2022 |
Product | ||||||||||||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | 3SE2283-6GA53 | |||||||||||||||||||||||||||||||||||||||
Product Description | Hinge switch Molded-plastic enclosure with aluminum hinge 3xNC, Slow-action contacts for 40 mm profiles Supplied with additional hinge and fixing material Cable entry 2 x M20 x 1.5 Actuating angle 8° | |||||||||||||||||||||||||||||||||||||||
Product family | with integrated hinge | |||||||||||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
Price data | ||||||||||||||||||||||||||||||||||||||||
Region Specific PriceGroup / Headquarter Price Group | 41K / 41K | |||||||||||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
Metal Factor | LC------ | |||||||||||||||||||||||||||||||||||||||
Delivery information | ||||||||||||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
Standard lead time ex-works | 15 Day/Days | |||||||||||||||||||||||||||||||||||||||
Net Weight (kg) | 0,422 Kg | |||||||||||||||||||||||||||||||||||||||
Packaging Dimension | 105,00 x 128,00 x 40,00 | |||||||||||||||||||||||||||||||||||||||
Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
EAN | 4011209669758 | |||||||||||||||||||||||||||||||||||||||
UPC | 754554967844 | |||||||||||||||||||||||||||||||||||||||
Commodity Code | 85365080 | |||||||||||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
Product Group | 3750 | |||||||||||||||||||||||||||||||||||||||
Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |||||||||||||||||||||||||||||||||||||||
Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
Classifications | ||||||||||||||||||||||||||||||||||||||||
|
Value | Unit | |
---|---|---|
Degree of protection (NEMA) (EF011959) | - | |
With status indication (EF001602) | false | |
Suitable for safety functions (EF001597) | true | |
Type of control element (EF006976) | Other | |
Forced opening (EF006694) | true | |
Number of safety auxiliary contacts (EF006940) | 3 | |
Number of contacts as normally closed contact (EF008255) | 3 | |
Number of contacts as normally open contact (EF008256) | 0 | |
Number of contacts as change-over contact (EF008257) | 0 | |
Type of switching contact (EF003591) | Slow-action switch | |
Width sensor (EF007094) | 111.5 | mm |
Height of sensor (EF007283) | 36.0 | mm |
Length of sensor (EF007334) | 92.0 | mm |
Rated operation current Ie at AC-15, 24 V (EF007084) | - | A |
Rated operation current Ie at AC-15, 125 V (EF007082) | 4.2 | A |
Rated operation current Ie at AC-15, 230 V (EF001385) | 2 | A |
Rated operation current Ie at DC-13, 24 V (EF007087) | 1 | A |
Rated operation current Ie at DC-13, 125 V (EF007085) | - | A |
Rated operation current Ie at DC-13, 230 V (EF001386) | - | A |
Construction type housing (EF004008) | Special construction | |
Material housing (EF001596) | Plastic | |
Coating housing (EF001601) | Other | |
Type of electric connection (EF003961) | Cable entry metrical | |
Explosion safety category for gas (EF003997) | None | |
Explosion safety category for dust (EF003998) | None | |
Type of interface (EF006977) | None | |
Type of interface for safety communication (EF003956) | None | |
Degree of protection (IP) (EF005474) | IP65 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG SIEMENS SIRIUS INDUSTRIAL CONTROLS EN.pdf | 279 Mbytes | |
3SE2283-6GA53 3SE2283-6GA53 EN_3SE2283-6GA53.pdf | 325 Kbytes |
