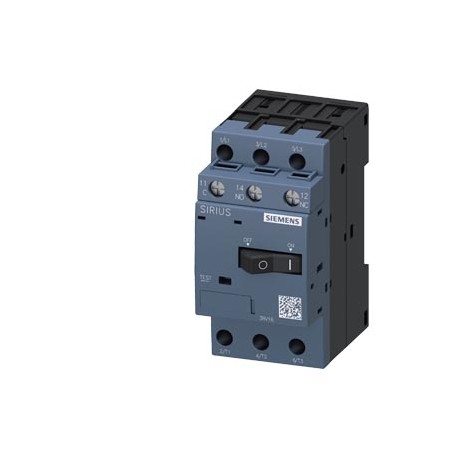

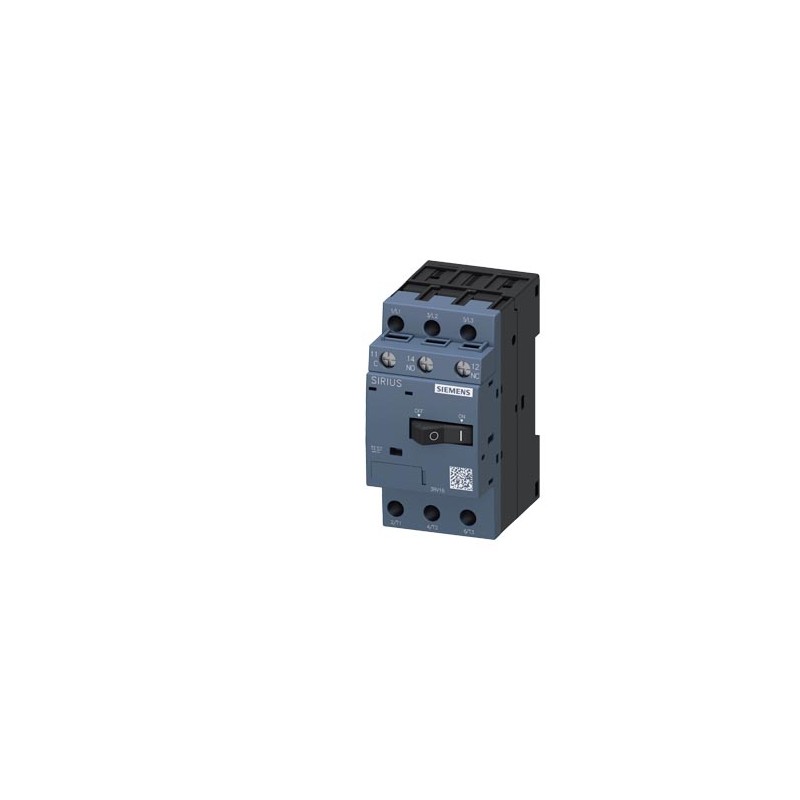

3RV1611-1DG14 SIEMENS Voltage transformer Circuit breaker, Size S00 3 A, N-release 20 A 1 CO with transverse.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RV1611-1DG14 SIEMENS Voltage transformer Circuit breaker, Size S00 3 A, N-release 20 A 1 CO with transverse..

3RV1611-1DG14

SIEMENS

Voltage transformer Circuit breaker, Size S00 3 A, N-release 20 A 1 CO with transverse auxiliary switch

SIRIUS Circuit breaker, for voltage transformer size S00, 3A, trigger 20A, 1W transverse auxiliary contacts

More details


Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection

CONTROL AND CONTACTORS > Motor protection switches

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $426.27
Unit price: $426.27
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Voltage transformer Circuit breaker, Size S00 3 A, N-release 20 A 1 CO with transverse auxiliary switch
product brand nameSIRIUS
product designationCircuit breaker
design of the productfor distance protection
product type designation3RV1
General technical data
size of the circuit-breakerS00
product extension auxiliary switchYes
power loss [W] for rated value of the current
● at AC in hot operating state7.25 W
● at AC in hot operating state per pole2.4 W
insulation voltage with degree of pollution 3 at AC rated value690 V
surge voltage resistance rated value6 kV
maximum permissible voltage for safe isolation in networks with grounded star point
● between main and auxiliary circuit400 V
● between main and auxiliary circuit400 V
mechanical service life (switching cycles)
● of the main contacts typical10 000
● of auxiliary contacts typical10 000
reference code according to IEC 81346-2Q
Substance Prohibitance (Date)01/01/2013
Ambient conditions
installation altitude at height above sea level maximum2 000 m
ambient temperature
● during operation-20 ... +60 °C
● during storage-50 ... +80 °C
● during transport-50 ... +80 °C
temperature compensation-20 ... +60 °C
relative humidity during operation10 ... 95 %
Main circuit
number of poles for main current circuit3
operating voltage
● rated value400 V
● rated value20 ... 690 V
● at AC-3 rated value maximum400 V
operating frequency rated value60 Hz
operational current rated value3 A
operational current
● at AC-3 at 400 V rated value3 A
operating frequency
● at AC-3 maximum15 1/h
Auxiliary circuit
design of the auxiliary switchtransverse
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
number of CO contacts for auxiliary contacts1
operational current of auxiliary contacts at DC-13
● at 24 V0.3 A
● at 60 V0.3 A
Protective and monitoring functions
product function
● ground fault detectionNo
● phase failure detectionYes
design of the overload releasethermal
breaking capacity operating short-circuit current (Ics) at AC
● at 240 V rated value100 kA
● at 400 V rated value50 kA
breaking capacity maximum short-circuit current (Icu)
● at AC at 240 V rated value100 kA
● at AC at 400 V rated value50 kA
response value current of instantaneous short-circuit trip unit20 A
UL/CSA ratings
full-load current (FLA) for 3-phase AC motor
● at 480 V rated value3 A
● at 600 V rated value3 A
Short-circuit protection
product function short circuit protectionYes
design of the short-circuit tripmagnetic
design of the fuse link
● for short-circuit protection of the auxiliary switch required2A FF 250V/1.1kA
design of the fuse link for IT network for short-circuit protection of the main circuit
● at 240 Vnone required
● at 400 VgL/gG 40 A
● at 500 VgL/gG 35 A
● at 690 VgL/gG 35 A
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
height90 mm
width45 mm
depth75 mm
required spacing
● for grounded parts at 400 V
— downwards20 mm
— upwards20 mm
— at the side9 mm
● for live parts at 400 V
— downwards20 mm
— upwards20 mm
— at the side9 mm
● for grounded parts at 500 V
— downwards20 mm
— upwards20 mm
— at the side9 mm
● for live parts at 500 V
— downwards20 mm
— upwards20 mm
— at the side9 mm
● for grounded parts at 690 V
— downwards20 mm
— upwards20 mm
— backwards0 mm
— at the side9 mm
— forwards0 mm
● for live parts at 690 V
— downwards20 mm
— upwards20 mm
— backwards0 mm
— at the side9 mm
— forwards0 mm
Connections/ Terminals
product component removable terminal for auxiliary and control circuitNo
type of electrical connection
● for main current circuitscrew-type terminals
● for auxiliary and control circuitscrew-type terminals
arrangement of electrical connectors for main current circuitTop and bottom
type of connectable conductor cross-sections
● for main contacts
— solid or stranded2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), 2x (1 ... 4 mm²)
— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
type of connectable conductor cross-sections
● for auxiliary contacts
— solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
tightening torque
● for main contacts with screw-type terminals0.8 ... 1.2 N·m
● for auxiliary contacts with screw-type terminals0.8 ... 1.2 N·m
size of the screwdriver tipPozidriv size 2
design of the thread of the connection screw
● for main contactsM3
● of the auxiliary and control contactsM3
Safety related data
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
display version for switching statusRocker switch
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CSA

CCC

Confirmation

UL

EAC

UK Declaration of Conformity

Declaration of ConformityTest CertificatesMarine / Shipping

EC/EU-Declaration of Conformity

Special Test Certificate

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

PRS / Polski Rejestr Statkow

RMRS / Russian Maritime Register

otherRailway

Miscellaneous

Confirmation

Household and similar appliances

Special Test Certificate

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Tripping characteristics, I²t, Let-through current
Further characteristics (e.g. electrical endurance, switching frequency)
last modified:1/27/2022
Date
5/3/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RV1611-1DG14
Product DescriptionVoltage transformer Circuit breaker, Size S00 3 A, N-release 20 A 1 CO with transverse auxiliary switch
Product familySIRIUS 3RV1 motor starter protectors
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41E / 41E
Surcharge for Raw MaterialsNone
Metal FactorLA------
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works1 Day/Days
Net Weight (kg)0,302 Kg
Packaging Dimension49,00 x 100,00 x 84,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209535237
UPC754554899572
Commodity Code85362010
LKZ_FDB/ CatalogIDCC-IC10
Product Group3715
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.01.2013
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-04-09
eClass7.127-37-04-09
eClass827-37-04-09
eClass927-37-04-09
eClass9.127-37-04-09
ETIM5EC000228
ETIM6EC000228
ETIM7EC000228
ETIM8EC000228
IDEA44850
UNSPSC1439-12-15-21
UNSPSC1539-12-16-01

ETIM data

ETIM: EC000228 - Power circuit-breaker for trafo/generator/installation protection

Value Unit
Complete device with protection unit (EF008906) -
DIN rail (top hat rail) mounting optional (EF008904) -
Rated voltage (EF003977) -V
Rated permanent current Iu (EF001389) 3.0A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (EF007048) 50.0kA
Overload release current setting (EF002336) ['-', '-']A
Adjustment range short-term delayed short-circuit release (EF007129) ['-', '-']A
Adjustment range undelayed short-circuit release (EF007131) ['20', '20']A
Integrated earth fault protection (EF007296) false
Type of electrical connection of main circuit (EF006819) Screw connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) FALSE
Number of auxiliary contacts as normally closed contact (EF001377) 1
Number of auxiliary contacts as normally open contact (EF001376) 1
Number of auxiliary contacts as change-over contact (EF003531) 1
With switched-off indicator (EF007006) false
With under voltage release (EF007518) false
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Other
Type of control element (EF006976) Rocker
Motor drive integrated (EF006697) false
Motor drive optional (EF007386) false
Degree of protection (IP) (EF005474) IP20
