3RP2540-2BB30
SIEMENS
1

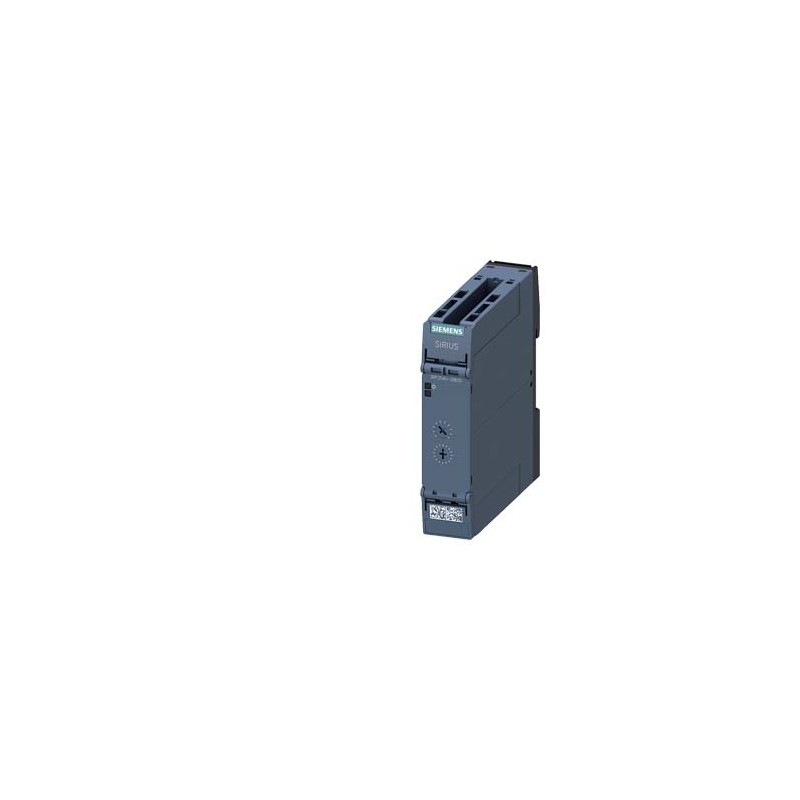

Timing relay, electronic OFF delay without control signal or smooth passing make contact non-volatile 7 time ranges 0.05...600 s 24 V AC/DC, 2 change-over contacts with LED, Spring-type terminal (push-in)
CONTROL AND CONTACTORS > Function relays
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product | |||||||||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | 3RP2540-2BB30 | ||||||||||||||||||||||||||||||||||||
Product Description | Timing relay, electronic OFF delay without control signal or smooth passing make contact non-volatile 7 time ranges 0.05...600 s 24 V AC/DC, 2 change-over contacts with LED, Spring-type terminal (push-in) | ||||||||||||||||||||||||||||||||||||
Product family | SIRIUS 3RP25 timing relays 17.5 mm and 22.5 mm | ||||||||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
Price data | |||||||||||||||||||||||||||||||||||||
Region Specific PriceGroup / Headquarter Price Group | 41H / 41H | ||||||||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
Metal Factor | LAO----- | ||||||||||||||||||||||||||||||||||||
Delivery information | |||||||||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
Standard lead time ex-works | 10 Day/Days | ||||||||||||||||||||||||||||||||||||
Net Weight (kg) | 0,167 Kg | ||||||||||||||||||||||||||||||||||||
Packaging Dimension | 36,00 x 109,00 x 126,00 | ||||||||||||||||||||||||||||||||||||
Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
Additional Product Information | |||||||||||||||||||||||||||||||||||||
EAN | 4011209943780 | ||||||||||||||||||||||||||||||||||||
UPC | 887621915124 | ||||||||||||||||||||||||||||||||||||
Commodity Code | 85364900 | ||||||||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
Product Group | 4952 | ||||||||||||||||||||||||||||||||||||
Group Code | R711 | ||||||||||||||||||||||||||||||||||||
Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 12.09.2014 | ||||||||||||||||||||||||||||||||||||
Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
Classifications | |||||||||||||||||||||||||||||||||||||
|
Value | Unit | |
---|---|---|
Type of electric connection (EF003961) | Spring clamp connection | |
Function delay-on energization (EF003374) | false | |
Function delay on de-energization (EF003401) | true | |
Function floating contact on energization (EF003378) | false | |
Function floating contact on de-energization (EF003402) | false | |
Function star-delta (EF003380) | false | |
Function pulse shaping (EF003403) | false | |
Function flashing, starting with pause, fixed time (EF003363) | false | |
Function flashing, starting with pulse, fixed time (EF003364) | false | |
Clock function, starting with pause, variable (EF003365) | false | |
Clock function, starting with pulse, variable (EF003366) | false | |
With plug-in socket (EF003360) | true | |
Remote operation possible (EF003361) | false | |
Suitable as remote control (EF003362) | false | |
Pluggable on auxiliary contact block (EF006952) | false | |
Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '24'] | V |
Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '24'] | V |
Rated control supply voltage Us at DC (EF003980) | ['-', '24'] | V |
Voltage type for actuating (EF008242) | AC/DC | |
Nominal current (EF000001) | - | A |
Time range (EF003384) | ['0.05', '600.0'] | s |
Number of outputs, undelayed, normally closed contact (EF006835) | 0 | |
Number of outputs, undelayed, normally open contact (EF006836) | 0 | |
Number of outputs, undelayed, change-over contact (EF006837) | 0 | |
Number of outputs, delayed, normally closed contact (EF006838) | 0 | |
Number of outputs, delayed, normally open contact (EF006839) | 0 | |
Number of outputs, delayed, change-over contact (EF006840) | 2 | |
Outputs, reversible delayed/undelayed (EF006988) | false | |
With semiconductor output (EF003373) | false | |
Suitable for DIN rail (top hat rail) mounting (EF007250) | screw and snap-on mounting onto 35 mm standard mounting rail | |
Suitable for front mounting (EF001127) | screw and snap-on mounting onto 35 mm standard mounting rail | |
Width (EF000008) | 22.5 | mm |
Height (EF000040) | 100.0 | mm |
Depth (EF000049) | 90.0 | mm |
Title: | Size: | Type: |
---|---|---|
3RP2540-2BB30 3RP2540-2BB30 EN_3RP2540-2BB30.pdf | 247 Kbytes |
