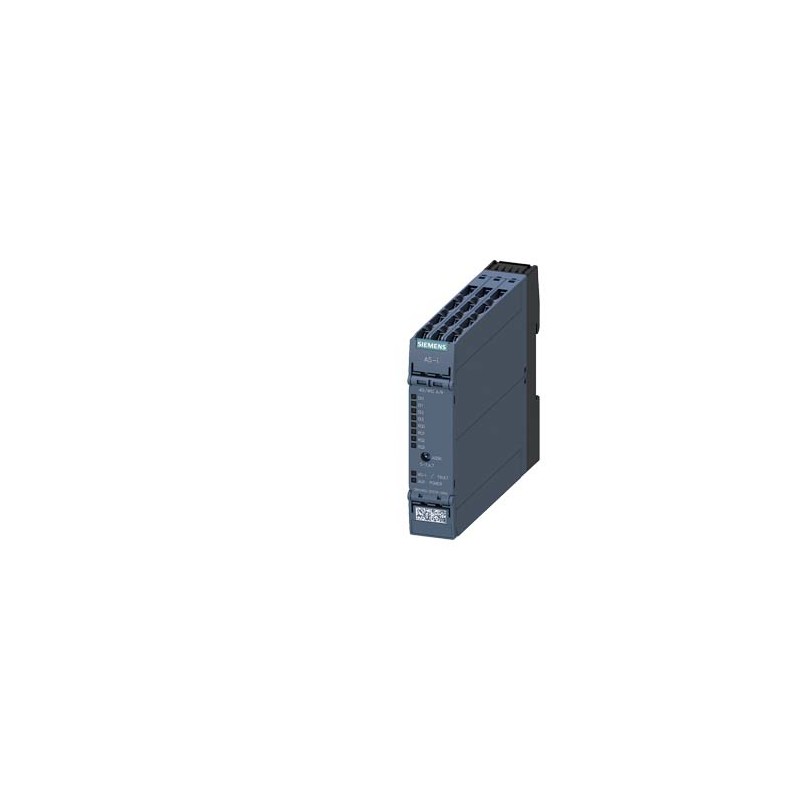

3RK2402-2CE00-2AA2 SIEMENS AS-i SlimLine Compact module SC22.5 digital, A/B slave 4 DI/4 RQ, IP20 4 x inputs.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RK2402-2CE00-2AA2 SIEMENS AS-i SlimLine Compact module SC22.5 digital, A/B slave 4 DI/4 RQ, IP20 4 x inputs..

3RK2402-2CE00-2AA2

SIEMENS

AS-i SlimLine Compact module SC22.5 digital, A/B slave 4 DI/4 RQ, IP20 4 x inputs for 3-wire sensor Sensor supply can be switched over 4 x output relay 1 A 24 V DC Screw terminals Width 22.5 mm

COMPACT AS-I SLIMLINE IP20 MODULE, A/B DIG SLAVE, 4DI/4DQ SCREW TERMINALS, 22.5 MM 4 INPUTS FOR SENSORS 3 WIRES FEED. SWITCHABLE SENSORS 4 OUTPUTS TO RELAY 1A.

More details


PLC's > Fieldbus, decentr. periphery - digital I/O module

CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $327.53
Unit price: $327.53
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

AS-i SlimLine Compact module SC22.5 digital, A/B slave 4 DI/4 RQ, IP20 4 x inputs for 3-wire sensor Sensor supply can be switched over 4 x output relay 1 A 24 V DC Screw terminals Width 22.5 mm
product designationSlimline Compact I/O module for use in the control cabinet
design of the productAS-i SC22.5, 4DI/4RQ A/B
General technical data
protection class IPIP20
design of the slave typeA/B slave (Spec. 3.0)
AS-Interface slave profileS-7.A.7
ID1 code7; Setting cannot be changed
operating voltage according to AS-Interface specification18 ... 31.6 V
product function suitable for AS-i Power24VYes
protocol is supported AS-Interface protocolYes
consumed current from profile conductors of the AS-Interface
● at 30 V maximum300 mA
● at 24 V with AS-i Power24V maximum300 mA
type of address setting of AS-i slavesvia front addressing socket
display version
● as status display of the inputs/outputsYellow LED
● for AS-InterfaceLED green/red
reference code
● according to EN 61346-2K
● according to DIN 40719 extended according to IEC 204-2 according to IEC 750A
shock resistance15g / 11 ms (modules) or 10g / 11 ms (modules with device connector)
other informationSensor supply via Uaux: Auxiliary feed 20 to 30 V DC required to supply the sensor. Sensor supply via AS-i: No additional power required.
Digital Inputs
number of digital inputs4
number of digital inputs safety-related0
type of input characteristicPNP Type 2
type of connection technology2- and 3-wire technology
Sensor supply
type of voltage supply for power supplyAS-Interface / U_AUX switchable
ampacity of the sensor supply for all inputs at ambient temperature 40 °C500 mA
● note200 mA with supply via AS interface / 500 mA with supply via Uaux
property of the sensor supply short-circuit and overload resistantYes
voltage drop at the sensor supply
● from AS-interface8.5 V
● from external auxiliary voltage1 V
Digital Outputs
number of digital outputs4
type of switching outputRelays, NO contacts
property of the output short-circuit proofNo
ampacity of the output relay at AC-15 at 230 V at 50/60 Hz3 A
ampacity of the output relay at DC-13
● at 24 V1 A
● at 110 V0.2 A
● at 230 V0.1 A
thermal current5 A
Analog inputs
number of analog inputs0
Analog outputs
number of analog outputs0
Device connector
ampacity of the interface to the device connector
● for AS-Interface2 A
● for external auxiliary voltage4 A
Installation/ mounting/ dimensions
fastening methodscrew and snap-on mounting
height100 mm
width22.5 mm
depth120 mm
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +85 °C
Connections/ Terminals
type of electrical connection of the inputs and outputsScrew terminals
type of connectable conductor cross-sections
● solid1x (0.5 ... 2.5 mm²), 2x ( 0.5 ... 1.5 mm²)
● finely stranded with core end processing1x (0.25 ... 2.5 mm²), 2x (0.25 ... 1.0 mm²)
● finely stranded without core end processingNot permitted
● at AWG cables solid1x (20 ... 14), 2x (18 ... 16)
● at AWG cables strandedNot permitted
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

CSA

Confirmation

UL

EAC

RCM

EC/EU-Declaration of Conformity

Test CertificatesMarine / Shipping

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RMRS / Russian Maritime Register

DNV-GL

other

ASI-Certification

Confirmation

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/18/2021
Date
5/7/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RK2402-2CE00-2AA2
Product DescriptionAS-i SlimLine Compact module SC22.5 digital, A/B slave 4 DI/4 RQ, IP20 4 x inputs for 3-wire sensor Sensor supply can be switched over 4 x output relay 1 A 24 V DC Screw terminals Width 22.5 mm
Product familySlimLine Compact
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42C / 42C
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works10 Day/Days
Net Weight (kg)0,290 Kg
Packaging Dimension111,00 x 159,00 x 38,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209974500
UPC804766359958
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group3720
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-24-26-04
eClass7.127-24-26-04
eClass827-24-26-04
eClass927-24-26-04
eClass9.127-24-26-04
ETIM5EC001599
ETIM6EC001599
ETIM7EC001599
ETIM8EC001599
IDEA43566
UNSPSC1532-15-17-05

ETIM data

ETIM: EC001599 - Fieldbus, decentr. periphery - digital I/O module

Value Unit
Number of HW-interfaces RS-232 (EF003021) -
Supporting protocol for other bus systems (EF003062) -
Explosion safety category for dust (EF003998) -
Digital outputs configurable (EF008520) -
Supporting protocol for SUCONET (EF003060) -
Number of HW-interfaces other (EF003027) -
Height (EF000040) -mm
Depth (EF000049) -mm
Supporting protocol for ASI (EF003051) -
Supporting protocol for Data-Highway (EF003058) -
Type of electric connection (EF003961) -
Radio standard Bluetooth (EF007178) -
SIL according to IEC 61508 (EF009889) -
Number of digital inputs (EF001992) -
Number of HW-interfaces industrial Ethernet (EF003020) -
Type of voltage (input voltage) (EF003033) -
Supporting protocol for TCP/IP (EF003050) -
Output current (EF003202) -A
System accessory (EF004118) -
Supporting protocol for INTERBUS-Safety (EF006662) -
Number of HW-interfaces Wireless (EF006933) -
Front build in possible (EF007016) -
Supporting protocol for SafetyBUS p (EF007527) -
Input current at signal 1 (EF001428) -mA
Suitable for safety functions (EF001597) -
Number of HW-interfaces RS-422 (EF003022) -
Number of HW-interfaces parallel (EF003026) -
Degree of protection (IP) (EF005474) -
Wall mounting/direct mounting (EF007020) -
Supporting protocol for AS-Interface Safety at Work (EF007519) -
Permitted voltage at output (EF007553) -V
Radio standard GSM (EF008524) -
Type of digital output (EF003601) -
IO link master (EF007298) -
Voltage type of supply voltage (EF002991) -
Supporting protocol for INTERBUS (EF003054) -
Supporting protocol for Modbus (EF003057) -
Number of interfaces PROFINET (EF006932) -
Radio standard WLAN 802.11 (EF007179) -
Performance level according to EN ISO 13849-1 (EF007399) -
Supporting protocol for PROFINET CBA (EF007524) -
Rail mounting possible (EF003972) -
Permitted voltage at input (EF007554) -V
Number of digital outputs (EF001993) -
Number of HW-interfaces USB (EF003025) -
Supporting protocol for PROFIBUS (EF003052) -
Supporting protocol for DeviceNet (EF003059) -
Explosion safety category for gas (EF003997) -
Supporting protocol for EtherNet/IP (EF007521) -
Supply voltage DC (EF007534) -V
Supporting protocol for DeviceNet Safety (EF007520) -
Radio standard UMTS (EF008525) -
Number of HW-interfaces serial TTY (EF003024) -
Short-circuit protection, outputs available (EF003203) -
Rack-assembly possible (EF007018) -
Supporting protocol for PROFIsafe (EF007526) -
Supporting protocol for LON (EF003017) -
Supporting protocol for KNX (EF003055) -
Supply voltage AC 50 Hz (EF007532) -V
Width (EF000008) -mm
Time delay at signal exchange (EF002382) -ms
Number of HW-interfaces RS-485 (EF003023) -
With optical interface (EF003028) -
Supporting protocol for CAN (EF003053) -
Fieldbus connection over separate bus coupler possible (EF004002) -
Appendant operation agent (Ex ib) (EF004142) -
Supporting protocol for Foundation Fieldbus (EF007522) -
Supporting protocol for PROFINET IO (EF007525) -
Supply voltage AC 60 Hz (EF007533) -V
Type of output voltage (EF008222) -
Digital inputs configurable (EF008516) -
Radio standard GPRS (EF008523) -
Appendant operation agent (Ex ia) (EF004141) -
Category according to EN 954-1 (EF006782) -
Supporting protocol for SERCOS (EF006657) -
