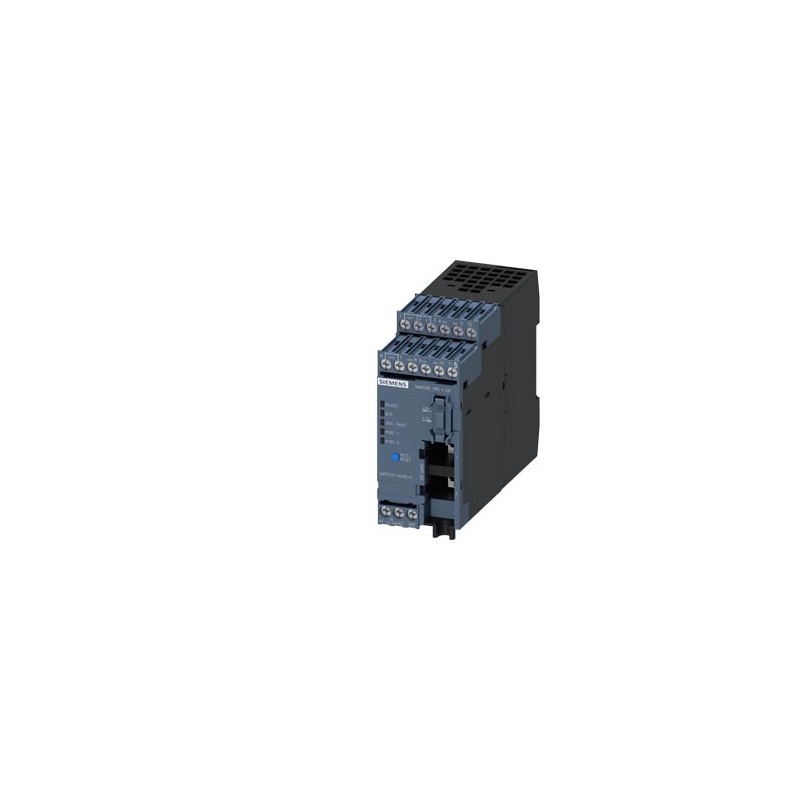

3UF7013-1AU00-0 SIEMENS Basic unit SIMOCODE pro V EIP, EtherNet/IP, medium redundancy DLR, Web server, trans.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3UF7013-1AU00-0 SIEMENS Basic unit SIMOCODE pro V EIP, EtherNet/IP, medium redundancy DLR, Web server, trans..

3UF7013-1AU00-0

SIEMENS

Basic unit SIMOCODE pro V EIP, EtherNet/IP, medium redundancy DLR, Web server, transmission rate 100 Mbps, 2 x bus connection via RJ45, 4I/3O freely parameterizable, Us: 110...240 V AC/DC, input for thermistor connection Monostable relay outputs, expandable by extension modules

More details


Low-voltage industrial components > Motor management device

CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $1,145.91
Unit price: $1,145.91
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Basic unit SIMOCODE pro V EIP, EtherNet/IP, medium redundancy DLR, Web server, transmission rate 100 Mbps, 2 x bus connection via RJ45, 4I/3O freely parameterizable, Us: 110...240 V AC/DC, input for thermistor connection Monostable relay outputs, expandable by extension modules
product brand nameSIRIUS
product designationMotor management system
design of the productbasic unit 3
product type designationSIMOCODE pro V EIP
General technical data
product function
● bus communicationYes
● data acquisition functionYes
● diagnostics functionYes
● password protectionYes
● test functionYes
● maintenance functionYes
product component
● input for thermistor connectionYes
● digital inputYes
● input for analog temperature sensorsNo
● input for ground fault detectionNo
● relay outputYes
product extension
● temperature monitoring moduleYes
● current measuring moduleYes
● current/voltage measuring moduleYes
● fail-safe digital I/O moduleYes
● ground-fault monitoring moduleYes
● control unit with displayYes
● control unitYes
● analog I/O moduleYes
apparent power consumption8.3 VA
consumed active power4.8 W
insulation voltage with degree of pollution 3 at AC rated value300 V
surge voltage resistance rated value4 000 V
protection class IPIP20
shock resistance
● according to IEC 60068-2-2715g / 11 ms
● vibration resistance1-6 Hz / 15 mm; 6-500 Hz / 2 g
switching capacity current of the NO contacts of the relay outputs at AC-15
● at 24 V6 A
● at 120 V6 A
● at 230 V3 A
switching capacity current of the NO contacts of the relay outputs at DC-13
● at 24 V2 A
● at 60 V0.55 A
● at 125 V0.25 A
mechanical service life (switching cycles) typical10 000 000
electrical endurance (switching cycles) typical100 000
buffering time in the event of power failure0.02 s
reference code according to IEC 81346-2F
continuous current of the NO contacts of the relay outputs
● at 50 °C6 A
● at 60 °C5 A
type of input characteristicType 1 in accordance with EN 61131-2
Substance Prohibitance (Date)03/01/2017
certificate of suitability
● IECExYes; IECEx PTB 18.0004X
● according to ATEX directive 2014/34/EUBVS 06 ATEX F001, PTB 18 ATEX 5003 X
explosion device group and category according to ATEX directive 2014/34/EUII (2) G, II (2 ) D, I (M2) / I (1G/M2), II (1/2) G, II (1G/2D)
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1class A
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
conducted interference
● due to burst according to IEC 61000-4-42 kV (power ports) / 1 kV (signal ports)
● due to conductor-earth surge according to IEC 61000-4-52 kV
● due to conductor-conductor surge according to IEC 61000-4-51 kV
● due to high-frequency radiation according to IEC 61000-4-610 V
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
conducted HF interference emissions according to CISPR11corresponds to degree of severity A
field-bound HF interference emission according to CISPR11corresponds to degree of severity A
Inputs/ Outputs
product function
● parameterizable inputsYes
● parameterizable outputsYes
number of inputs4
● for thermistor connection1
number of digital inputs with a common reference potential4
digital input version type 1 acc. to IEC 61131Yes
input voltage at digital input at DC rated value24 V
number of outputs3
number of semiconductor outputs0
number of outputs as contact-affected switching element3
switching behaviormonostable
type of relay outputsMonostable
wire length for digital signals maximum300 m
wire length for thermistor connection
● with conductor cross-section = 0.5 mm² maximum50 m
● with conductor cross-section = 1.5 mm² maximum150 m
● with conductor cross-section = 2.5 mm² maximum250 m
Protective and monitoring functions
product function
● asymmetry detectionYes
● blocking current evaluationYes
● power factor monitoringYes
● ground fault detectionYes
● phase failure detectionYes
● phase sequence recognitionYes
● voltage detectionYes
● monitoring of number of start operationsYes
● overvoltage detectionYes
● overcurrent detection 1 phaseYes
● undervoltage detectionYes
● undercurrent detection 1 phaseYes
● active power monitoringYes
product function
● current detectionYes
● overload protectionYes
● evaluation of thermistor motor protectionYes
total cold resistance number of sensors in series maximum1.5 kΩ
response value of thermoresistor3 400 ... 3 800 Ω
● of the short-circuit control9 Ω
release value of thermoresistor1 500 ... 1 650 Ω
Motor control functions
product function
● parameterizable overload relayYes
● circuit breaker controlYes
● direct startYes
● reverse startingYes
● star-delta circuitYes
● star-delta reversing circuitYes
● Dahlander circuitYes
● Dahlander reversing circuitYes
● pole-changing switch circuitYes
● pole-changing switch reversing circuitYes
● slide controlYes
● valve controlYes
Communication/ Protocol
● protocol is supported PROFIBUS DP protocolNo
● protocol is supported PROFINET IO protocolNo
● protocol is supported PROFIsafe protocolNo
● protocol is supported Modbus RTUNo
● protocol is supported EtherNet/IPYes
● protocol is supported OPC UA ServerNo
● protocol is supported LLDPYes
● protocol is supported Address Resolution Protocol (ARP)Yes
● protocol is supported SNMPYes
● protocol is supported HTTPSNo
● protocol is supported NTPYes
● protocol is supported Media Redundancy Protocol (MRP)No
● product function is supported Device Level Ring (DLR)Yes
number of interfaces
● according to PROFINET0
● according to PROFIBUS0
● according to Ethernet/IP2
product function
● web serverYes
● shared deviceNo
● at the Ethernet interface AutocrossoverYes
● at the Ethernet interface AutonegotiationYes
● at the Ethernet interface AutosensingYes
● is supported PROFINET system redundancyNo
● supports PROFIenergy measured valuesNo
● supports PROFIenergy shutdownNo
transfer rate maximum100 Mbit/s
identification & maintenance function
● I&M0 - device-specific informationNo
● I&M1 – higher level designation/location designationNo
● I&M2 - installation dateNo
● I&M3 - commentNo
type of electrical connection of the communication interface2x RJ45
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew and snap-on mounting
height111 mm
width45 mm
depth124 mm
required spacing
● top40 mm
● bottom40 mm
● left0 mm
● right0 mm
Connections/ Terminals
product component removable terminal for auxiliary and control circuitYes
type of connectable conductor cross-sections
● solid1x (0.5 ... 4.0 mm²), 2x (0.5 ... 2.5 mm²)
● finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)
● at AWG cables solid1x (20 ... 12), 2x (20 ... 14)
● at AWG cables stranded1x (20 ... 14), 2x (20 ... 16)
tightening torque with screw-type terminals0.8 ... 1.2 N·m
tightening torque [lbf·in] with screw-type terminals7 ... 10.3 lbf·in
Ambient conditions
installation altitude at height above sea level
● 1 maximum2 000 m
● 2 maximum3 000 m; max. +50 °C (no protective separation)
● 3 maximum4 000 m; max. +40 °C (no protective separation)
ambient temperature
● during operation-25 ... +60 °C
● during storage-40 ... +80 °C
● during transport-40 ... +80 °C
environmental category
● during operation according to IEC 607213K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
● during storage according to IEC 607211K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4
● during transport according to IEC 607212K2, 2C1, 2S1, 2M2
relative humidity
● during operation5 ... 95 %
contact rating of auxiliary contacts according to ULB300 / R300
Short-circuit protection
design of short-circuit protection per outputFuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit-breaker C char.: 1.6 A (IEC 60947-5-1) or 6 A (I_K < 500 A)
Safety related data
touch protection against electrical shockfinger-safe
Galvanic isolation
(electrically) protective separation according to IEC 60947-1All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information)
Control circuit/ Control
product function soft starter controlYes
type of voltage of the control supply voltageAC/DC
control supply voltage at AC
● at 50 Hz rated value110 ... 240 V
● at 60 Hz rated value110 ... 240 V
control supply voltage frequency
● 1 rated value50 Hz
● 2 rated value60 Hz
relative symmetrical tolerance of the control supply voltage frequency5 %
control supply voltage at DC
● rated value110 ... 240 V
operating range factor control supply voltage rated value at DC
● initial value0.85
● full-scale value1.1
operating range factor control supply voltage rated value at AC at 50 Hz
● initial value0.85
● full-scale value1.1
operating range factor control supply voltage rated value at AC at 60 Hz
● initial value0.85
● full-scale value1.1
inrush current peak
● at 240 V5 A
duration of inrush current peak
● at 240 V1 ms
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMC

CSA

Confirmation

CCC

UL

EAC

RCM

For use in hazardous locationsDeclaration of ConformityTest Certificates

ATEX-EC-Type-Examination-Certificate

IECEx

IECEx

ATEX-EC-Type-Examination-Certificate

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

Test CertificatesMarine / Shipping

Special Test Certificate

Special Test Certificate

ABS (American Bureau of Shipping)

LR (Lloyds Register)

RMRS / Russian Maritime Register

DNV-GL

other

Confirmation

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Test report No. A0258, protective separation
last modified:4/8/2022
Date
5/12/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3UF7013-1AU00-0
Product DescriptionBasic unit SIMOCODE pro V EIP, EtherNet/IP, medium redundancy DLR, Web server, transmission rate 100 Mbps, 2 x bus connection via RJ45, 4I/3O freely parameterizable, Us: 110...240 V AC/DC, input for thermistor connection Monostable relay outputs, expandable by extension modules
Product familySIMOCODE pro 3UF7 motor management and control devices
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42J / 42J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works1 Day/Days
Net Weight (kg)0,336 Kg
Packaging Dimension131,00 x 134,00 x 55,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621014869
UPC804766405136
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group5836
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.03.2017
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead titanium zirconium oxide

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-08-04
eClass7.127-37-08-04
eClass827-37-08-04
eClass927-37-08-04
eClass9.127-37-08-04
ETIM5EC002572
ETIM6EC002572
ETIM7EC002572
ETIM8EC002572
IDEA44776
UNSPSC1539-12-15-52

ETIM data

ETIM: EC002572 - Motor management device

Value Unit
Number of analogue inputs (EF001994) -
Degree of protection (NEMA) (EF011959) -
Number of analogue outputs (EF001995) -
Input for analogue temperature sensor (EF007114) -
Rated voltage Ue at AC 50 Hz (EF007029) ['-', '-']V
Rated voltage Ue at AC 60 Hz (EF007030) ['-', '-']V
Rated voltage Ue at DC (EF007031) ['-', '-']V
Current detection module (EF007501) true
Voltage detection module (EF007492) true
Type of connection system (EF008220) None
Rated control supply voltage Us at AC 50HZ (EF003978) ['110.0', '240.0']V
Rated control supply voltage Us at AC 60HZ (EF003979) ['110.0', '240.0']V
Rated control supply voltage Us at DC (EF003980) ['110', '240']V
Voltage type for actuating (EF008242) AC/DC
Number of outputs, with contact (EF006936) 3
Number of electronic outputs (EF006929) 0
Number of binary inputs (EF003817) 4
Input for thermistor connection (EF007116) true
Input for earth fault detection (EF007115) false
Switching function (EF000189) Mono stable
Type of electrical connection for auxiliary- and control current circuit (EF006979) Screw connection
Type of interface (EF006977) -
Degree of protection (IP) (EF005474) IP20
Rated operation frequency (EF007024) -Hz
Rated operation current Ie (EF006781) -A



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3UF7013-1AU00-0 3UF7013-1AU00-0 EN_3UF7013-1AU00-0.pdf 473 Kbytes 3UF7013-1AU00-0 3UF7013-1AU00-0 EN_3UF7013-1AU00-0.pdf

Reviews (0) ▲

No customer reviews for the moment.

Add Review
Add Review
hide form
Rating:
Name:
Email:
Subject:
Text:
Do you recommend this product to buy?
  Captcha
  Add review

Latest Customer Reviews

All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.

Newsletter
Follow us
My account
