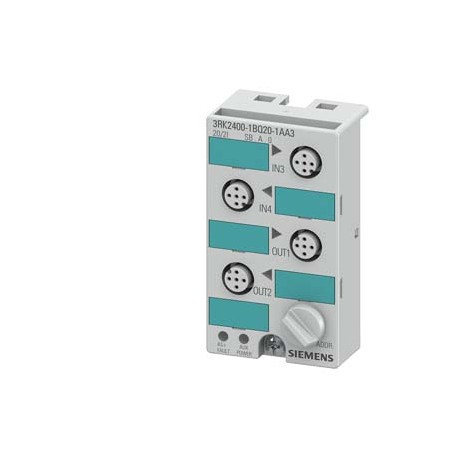

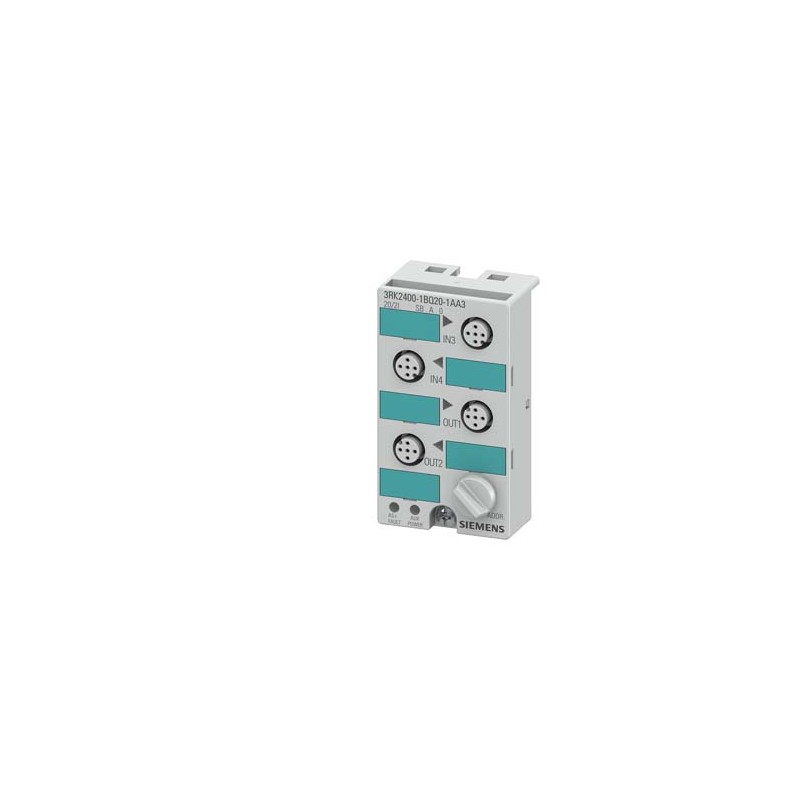

3RK2400-1BQ20-1AA3 SIEMENS AS-i compact module K45 digital A/B slave, 2 DI/2 DQ, IP67 2 x input, max. 200 mA.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RK2400-1BQ20-1AA3 SIEMENS AS-i compact module K45 digital A/B slave, 2 DI/2 DQ, IP67 2 x input, max. 200 mA..

3RK2400-1BQ20-1AA3

SIEMENS

AS-i compact module K45 digital A/B slave, 2 DI/2 DQ, IP67 2 x input, max. 200 mA 2 x output, 2 A 24 V DC max. 3 A for all outputs Special version without watchdog 4 x M12 socket Mounting plate 3RK1901-2EA00 or 3RK1901-2DA00 is to be ordered separately

More details


PLC's > Fieldbus, decentr. periphery - digital I/O module

CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


ETIM: EC001599 - Fieldbus, decentr. periphery - digital I/O module

Value Unit
SIL according to IEC 61508 (EF009889) -
Supply voltage AC 50 Hz (EF007532) ['-', '-']V
Supply voltage AC 60 Hz (EF007533) ['-', '-']V
Supply voltage DC (EF007534) ['-', '-']V
Voltage type of supply voltage (EF002991) DC
Number of digital inputs (EF001992) 2
Number of digital outputs (EF001993) 2
Digital inputs configurable (EF008516) FALSE
Digital outputs configurable (EF008520) false
Input current at signal 1 (EF001428) 6.0mA
Permitted voltage at input (EF007554) ['-', '-']V
Type of voltage (input voltage) (EF003033) DC / DC
Type of digital output (EF003601) Other
Output current (EF003202) 2.0A
Permitted voltage at output (EF007553) ['-', '-']V
Type of output voltage (EF008222) DC / DC
Short-circuit protection, outputs available (EF003203) true
Number of HW-interfaces industrial Ethernet (EF003020) 0
Number of interfaces PROFINET (EF006932) 0
Number of HW-interfaces RS-232 (EF003021) 0
Number of HW-interfaces RS-422 (EF003022) 0
Number of HW-interfaces RS-485 (EF003023) 0
Number of HW-interfaces serial TTY (EF003024) 0
Number of HW-interfaces parallel (EF003026) 0
Number of HW-interfaces Wireless (EF006933) 0
Number of HW-interfaces USB (EF003025) 0
Number of HW-interfaces other (EF003027) 0
With optical interface (EF003028) false
Supporting protocol for TCP/IP (EF003050) false
Supporting protocol for PROFIBUS (EF003052) false
Supporting protocol for CAN (EF003053) false
Supporting protocol for INTERBUS (EF003054) false
Supporting protocol for ASI (EF003051) true
Supporting protocol for KNX (EF003055) false
Supporting protocol for Modbus (EF003057) false
Supporting protocol for Data-Highway (EF003058) false
Supporting protocol for DeviceNet (EF003059) false
Supporting protocol for SUCONET (EF003060) false
Supporting protocol for LON (EF003017) false
Supporting protocol for PROFINET IO (EF007525) false
Supporting protocol for PROFINET CBA (EF007524) false
Supporting protocol for SERCOS (EF006657) false
Supporting protocol for Foundation Fieldbus (EF007522) false
Supporting protocol for EtherNet/IP (EF007521) false
Supporting protocol for AS-Interface Safety at Work (EF007519) false
Supporting protocol for DeviceNet Safety (EF007520) false
Supporting protocol for INTERBUS-Safety (EF006662) false
Supporting protocol for PROFIsafe (EF007526) false
Supporting protocol for SafetyBUS p (EF007527) false
Supporting protocol for other bus systems (EF003062) false
Radio standard Bluetooth (EF007178) false
Radio standard WLAN 802.11 (EF007179) false
Radio standard GPRS (EF008523) false
Radio standard GSM (EF008524) false
Radio standard UMTS (EF008525) false
IO link master (EF007298) false
System accessory (EF004118) true
Degree of protection (IP) (EF005474) IP67
Type of electric connection (EF003961) Screw connection
Time delay at signal exchange (EF002382) ['-', '-']ms
Fieldbus connection over separate bus coupler possible (EF004002) -
Rail mounting possible (EF003972) FALSE
Wall mounting/direct mounting (EF007020) FALSE
Front build in possible (EF007016) false
Rack-assembly possible (EF007018) false
Suitable for safety functions (EF001597) false
Category according to EN 954-1 (EF006782) -
Performance level according to EN ISO 13849-1 (EF007399) -
Appendant operation agent (Ex ia) (EF004141) -
Appendant operation agent (Ex ib) (EF004142) -
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 45.0mm
Height (EF000040) 80.0mm
Depth (EF000049) 30.0mm


AS-i compact module K45 digital A/B slave, 2 DI/2 DQ, IP67 2 x input, max. 200 mA 2 x output, 2 A 24 V DC max. 3 A for all outputs Special version without watchdog 4 x M12 socket Mounting plate 3RK1901-2EA00 or 3RK1901-2DA00 is to be ordered separately
General technical data
Design of the productdigital I/O modules for operation in the field, IP67 - K45
Type2 outputs / 2 inputs
Design of the slave typeA/B slave
I/O configurationB
ID/ID2 codeA/0
Number I/O sockets4
Type of electrical connection of the inputs and outputsM12 screw-type terminals
AS interface total current input max270 mA
operating voltage according to AS-Interface spezification26.5 ... 31.6 V
Ground terminalUsing PIN5 on the M12 sockets. Outgoing via flat tab sleeve (2.8 x 0.8 mm form A)
Addressingfront addressing socket
AS interface Connection Polarity reversal protectionbuilt-in
Delivery notethe modules are delivered without mounting plate
Note 1An external additional supply (AUX POWER) of 20 to 30 V DC is required for the supply of the output circuits. The additional supply must comply with VDE 0106 (PELV), protection class III.
Sensor supply
Type of voltage supply for power supplyusing AS-Interface
Input voltage16.5 ... 30 V
Property of the sensor supply Short-circuit and overload resistantYes
Ampacity of the sensor supply for all inputs
● at ambient temperature 40 °C200 mA
Inputs
Number of digital inputs2
Type of connection2- and 3-wire technology
Input circuitPNP transistor
Type of voltage of the input voltagesDC
Inputs switching level High min10 V
Input current at digital input
● for signal <1> minimum6 mA
● with signal <0> maximum1.5 mA
Inputs sensor supply using AS-Interfaceshort-circuit and overload resistant
Inputs socket assignment
● PIN 1sensor supply L+
● PIN 2data input
● PIN 3sensor supply L-
● PIN 4data input
● PIN 5ground terminal
Design of the pin assignment of the inputsstandard assignement
Outputs
Number of digital outputs2
Type of voltage of output voltagesDC
Outputs external power supply 24 V DCusing black AS-Interface flat cable
Ampacity of the semiconductor output at DC-13 at 24 V2 A
Outputs aggregate current
● max3 A
Type of switching outputPNP transistor
Design of the pin assignment of the outputsstandard assignement
Outputs socket assignment3 = "-", 4 = output, 5 = ground terminal
Property of the output Short-circuit proofYes
Outputs
● short-ciruit protectionbuilt-in
● induction protectionbuilt-in
● watchdogwithout
Display
Status display
● display of I/Osyellow LED
● display of Uauxgreen LED
● display of AS-Interface/diagnosticsgreen/red dual LED
Assignment of the data bits
Assignment of data bits
● socketPIN 4/2 = IN3 (D2)
● socket 2PIN 4/2 = IN4 (D3)
● socket 3PIN 4 = OUT1 (D0)
● socket 4PIN 4 = OUT2 (D1)
Ambient conditions
Ambient temperature
● during operation-25 ... +85 °C
● during storage-40 ... +85 °C
Protection class IPIP67
Mechanical data
Width45 mm
Height80 mm
Depth30 mm
Mounting typestandard rail mounting/wall mounting using mounting plate for K45 compact module
Certificates/ approvals
General Product ApprovalEMCDeclaration of Conformity

CSA

UL

EAC

RCM

EC/EU-Declaration of Conformity

Miscellaneous

Shipping Approvalother

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RMRS / Russian Maritime Register

ASI-Certification

Confirmation

other

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:05/15/2020


Product
Article Number (Market Facing Number)3RK2400-1BQ20-1AA3
Product DescriptionAS-i compact module K45 digital A/B slave, 2 DI/2 DQ, IP67 2 x input, max. 200 mA 2 x output, 2 A 24 V DC max. 3 A for all outputs Special version without watchdog 4 x M12 socket Mounting plate 3RK1901-2EA00 or 3RK1901-2DA00 is to be ordered separately
Product familyNot available
Product Lifecycle (PLM)PM300:Active Product
Price data
Price Group42C
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsECCN : EAR99 / AL : N
Standard lead time ex-works20 Day/Days
Net Weight (kg)0,087 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension46,00 x 106,00 x 50,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209775053
UPC804766165726
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group3720
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
Not available
