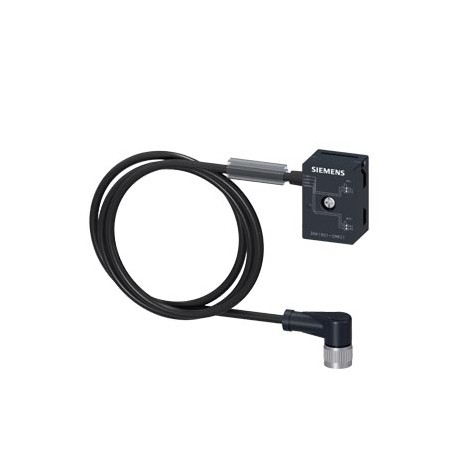

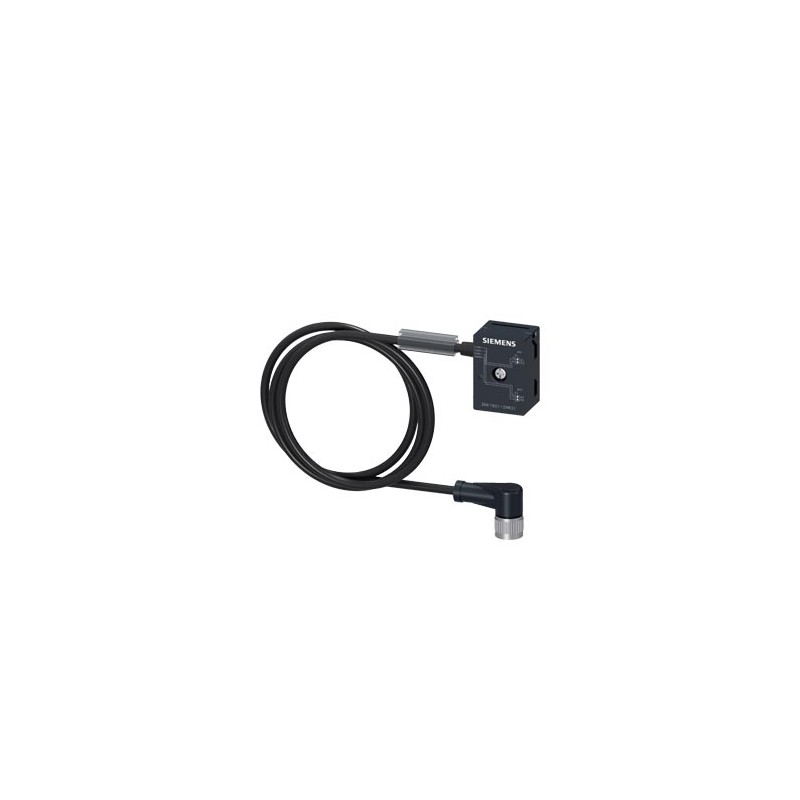

3RK1901-2NR21 SIEMENS AS-Interface M12 branch U ASI and Uaux, 1 m cable with M12 cable socket angled IP67/68.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RK1901-2NR21 SIEMENS AS-Interface M12 branch U ASI and Uaux, 1 m cable with M12 cable socket angled IP67/68..

3RK1901-2NR21

SIEMENS

AS-Interface M12 branch U_ASI and Uaux, 1 m cable with M12 cable socket angled IP67/68/69K, max. 4 A

AS-Interface derivation M12 U_ASI and Uaux, 1 m cable with M12 aerial female connector layered IP67/68/69K, maximum 4 A

More details


CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $87.61
Unit price: $87.61
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

AS-Interface M12 branch U_ASI and Uaux, 1 m cable with M12 cable socket angled IP67/68/69K, max. 4 A
General technical data
Type of deviceAS-Interface accessories
FunctionAS-i flat cable transition to M12
operating voltage according to AS-Interface spezificationV26.5 ... 31.6
operational current rated valueA3
Notecable must not end in the feeder
Connections/ Terminals
type of electrical connectioninsulation piercing method for AS-Interface flat cable
Inputs
Inputs socket assignment1 = ASI + 2 = AUX - 3=ASI - 4 = AUX +
Mechanical data
Type of mountingscrew fixing
tightening torque of fixing screwN·m1.65 ... 1.65
Contacts Load rating maxA4
Ambient conditions
ambient temperature°C-25 ... +75
ambient temperature during storage°C-25 ... +85
degree of protectionIP67/68/69K
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

Confirmation

UL

EAC

RCM

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Marine / Shippingother

ABS (American Bureau of Shipping)

PRS / Polski Rejestr Statkow

RMRS / Russian Maritime Register

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/23/2020
Date
5/5/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RK1901-2NR21
Product DescriptionAS-Interface M12 branch U_ASI and Uaux, 1 m cable with M12 cable socket angled IP67/68/69K, max. 4 A
Product familyMiscellaneous accessories
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42C / 42C
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,084 Kg
Packaging Dimension161,00 x 185,00 x 38,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621060095
UPC804766819544
Commodity Code85444290
LKZ_FDB/ CatalogIDCC-IC10
Product Group3721
Group CodeR711
Country of originVietnam
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-92-01
eClass7.127-37-92-01
eClass827-37-92-01
eClass927-37-92-01
eClass9.127-37-92-01
ETIM5EC002498
ETIM6EC002498
ETIM7EC002498
ETIM8EC002498

ETIM data

ETIM: EC002584 - Accessories/spare parts for controls

Value Unit
Type of mechanical accessory/spare part (EF005994) -
Type of electrical accessory/spare part (EF005722) -
