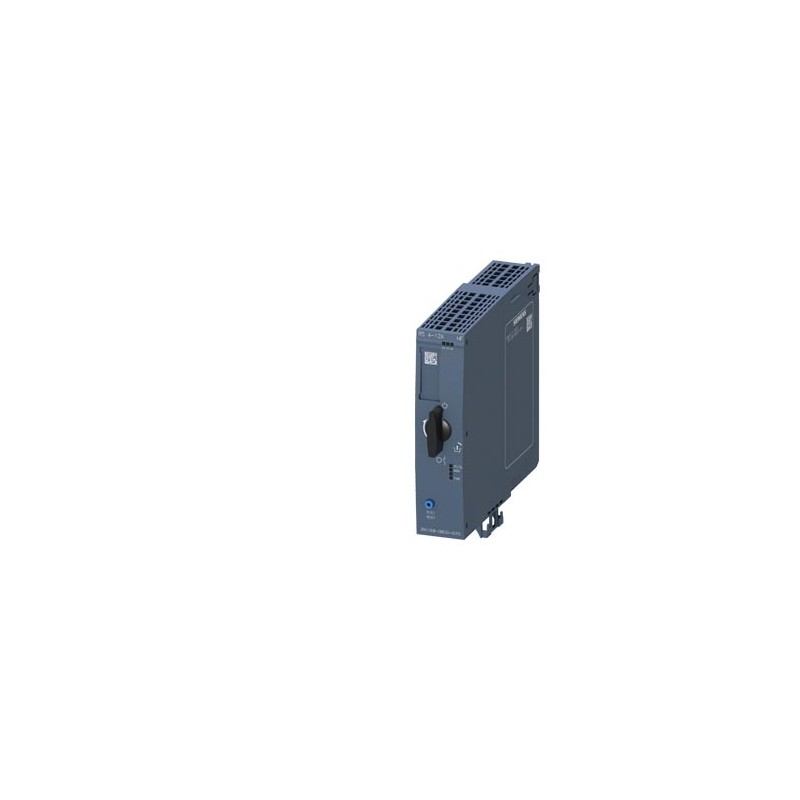

3RK1308-0BE00-0CP0 SIEMENS Reversing starter High Feature Incl. fan (3RW4928-8VB00) Electronic switching Ele.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

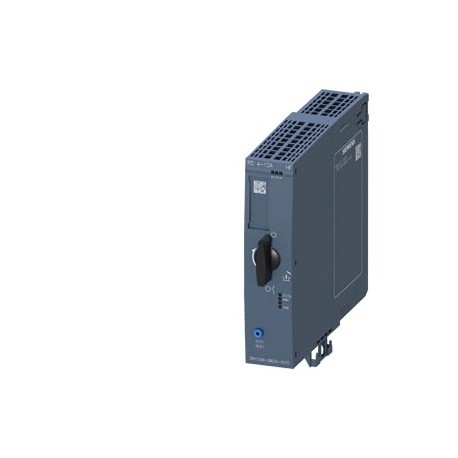

3RK1308-0BE00-0CP0 SIEMENS Reversing starter High Feature Incl. fan (3RW4928-8VB00) Electronic switching Ele..

3RK1308-0BE00-0CP0

SIEMENS

Reversing starter High Feature; Incl. fan (3RW4928-8VB00); Electronic switching; Electronic overload protection up to 5.5 kW / 400 V; Adjustment range 4.0 .. 12 A; PROFIenergy; Option: 3DI/LC module

More details


Low-voltage industrial components > Motor starter/Motor starter combination

CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $706.23
Unit price: $706.23
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Reversing starter High Feature; Incl. fan (3RW4928-8VB00); Electronic switching; Electronic overload protection up to 5.5 kW / 400 V; Adjustment range 4.0 .. 12 A; PROFIenergy; Option: 3DI/LC module
product brand nameSIMATIC
product categoryMotor starter
product designationReversing starter
product type designationET 200SP
General technical data
trip classCLASS OFF / 5 / 10 adjustable
equipment variant according to IEC 60947-4-23
product functionReversing starter
● on-site operationYes
● intrinsic device protectionYes
● remote firmware updateYes
● for power supply reverse polarity protectionYes
insulation voltage rated value500 V
degree of pollution2
overvoltage categoryIII
surge voltage resistance rated value6 kV
maximum permissible voltage for safe isolation
● between main and auxiliary circuit500 V
shock resistance6g / 11 ms
vibration resistance15 mm to 6 Hz; 2g to 500 Hz
operating frequency maximum1 1/s
mechanical service life (switching cycles) of the main contacts typical30 000 000
type of assignment1
utilization category
● according to IEC 60947-4-2AC-53a: 12 A: (8-0,5: 72-32)
reference code according to IEC 81346-2Q
Substance Prohibitance (Date)04/15/2016
product function
● direct startYes
● reverse startingYes
product component motor brake outputNo
product function short circuit protectionYes
design of short-circuit protectionfuse
breaking capacity maximum short-circuit current (Icu)
● at 400 V rated value55 kA
● at 500 V rated value55 kA
● at 500 V according to UL 60947 rated value100 kA
breaking capacity maximum short-circuit current (Icu) in the IT network
● at 400 V rated value55 kA
● at 500 V rated value55 kA
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1class A
EMC immunity according to IEC 60947-1Class A
conducted interference
● due to burst according to IEC 61000-4-42 kV
● due to conductor-earth surge according to IEC 61000-4-52 kV
● due to conductor-conductor surge according to IEC 61000-4-51 kV
● due to high-frequency radiation according to IEC 61000-4-6Class A
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-28 kV air discharge
conducted HF interference emissions according to CISPR11Class A for industrial environment
field-bound HF interference emission according to CISPR11Class A for industrial environment
Safety related data
MTBF46 y
safe stateLoad circuit open
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe
Main circuit
number of poles for main current circuit3
design of the switching contactHybrid
adjustable current response value current of the current-dependent overload release4 ... 12 A
minimum load [%]50 %; from smallest adjustable rated current
type of the motor protectionsolid-state
operating voltage rated value48 ... 500 V
relative symmetrical tolerance of the operating voltage10 %
operating frequency 1 rated value50 Hz
operating frequency 2 rated value60 Hz
relative symmetrical tolerance of the operating frequency5 %
relative positive tolerance of the operating frequency5 %
relative negative tolerance of the operating frequency5 %
operational current at AC at 400 V rated value12 A
ampacity when starting maximum100 A
operating power for 3-phase motors at 400 V at 50 Hz2.2 ... 5.5 kW
Inputs/ Outputs
number of digital inputs4
● note4 via 3DI/LC module
Supply voltage
type of voltage of the supply voltageDC
supply voltage 1 at DC rated value
● minimum permissible20.4 V
● maximum permissible28.8 V
supply voltage at DC rated value24 V
consumed current for rated value of supply voltage
● in standby mode of operation85 mA
● during operation140 mA
● at switching on of motor230 mA
power loss [W] for rated value of supply voltage
● in switching state OFF with bypass circuit2 W
● in switching state ON with bypass circuit3.4 W
inrush current peak at 24 V25 A; Observe the manual for group configuration
duration of inrush current peak at 24 V0.145 ms
Response times
ON-delay time20 ms
OFF-delay time35 ... 50 ms
Power Electronics
operational current
● at 40 °C rated value12 A
● at 50 °C rated value10 A
● at 55 °C rated value9 A
● at 60 °C rated value7 A
Installation/ mounting/ dimensions
mounting positionVertical, horizontal (observe derating)
fastening methodpluggable in BaseUnit
height142 mm
width30 mm
depth150 mm
required spacing with side-by-side mounting
● upwards50 mm
● downwards50 mm
Ambient conditions
installation altitude at height above sea level maximum4 000 m; For derating see manual
ambient temperature
● during operation-25 ... +60 °C; For derating see manual
● during storage-40 ... +70 °C
● during transport-40 ... +70 °C
environmental category during operation according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices)
relative humidity during operation10 ... 95 %
air pressure according to SN 31205900 ... 1 060 hPa
Communication/ Protocol
protocol is supported
● PROFIBUS DP protocolYes
● PROFINET protocolYes
product function bus communicationYes
protocol is supported AS-Interface protocolNo
product function
● supports PROFIenergy measured valuesYes
● supports PROFIenergy shutdownYes
address space memory of address range
● of the inputs4 byte
● of the outputs2 byte
type of electrical connection of the communication interfacePlug contact to Base Unit
Connections/ Terminals
type of electrical connection
● 1 for digital input signalsPluggable module - accessory
type of electrical connection
● for main energy infeedPlug contact to Base Unit
● for load-side outgoing feederPlug contact to Base Unit
● for supply voltage line-sidePlug contact to Base Unit
wire length for motor unshielded maximum200 m
UL/CSA ratings
full-load current (FLA) for 3-phase AC motor at 480 V rated value12 A
yielded mechanical performance [hp]
● for single-phase AC motor
— at 110/120 V rated value0.5 hp
— at 230 V rated value2 hp
● for 3-phase AC motor
— at 200/208 V rated value2 hp
— at 220/230 V rated value3 hp
— at 460/480 V rated value7.5 hp
operating voltage at AC at 60 Hz according to CSA and UL rated value480 V
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMC

CSA

CCC

Confirmation

UL

EAC

RCM

Declaration of ConformityTest CertificatesMarine / Shipping

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

BV / Bureau Veritas

DNV / Det Norske Veritas

LR (Lloyds Register)

otherDangerous Good

Confirmation

PROFIBUS-Certification

Transport Information

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:10/22/2021
Date
5/8/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RK1308-0BE00-0CP0
Product DescriptionReversing starter High Feature; Incl. fan (3RW4928-8VB00); Electronic switching; Electronic overload protection up to 5.5 kW / 400 V; Adjustment range 4.0 .. 12 A; PROFIenergy; Option: 3DI/LC module
Product familyET 200SP motor starters
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42D / 42D
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works60 Day/Days
Net Weight (kg)0,590 Kg
Packaging Dimension80,00 x 181,00 x 172,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621031545
UPC804766407703
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group3724
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 15.04.2016
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

4,4'-isopropylidenediphenol (Bisphenol A, BPA)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-09-05
eClass7.127-37-09-05
eClass827-37-09-05
eClass927-37-09-05
eClass9.127-37-09-05
ETIM5EC001037
ETIM6EC001037
ETIM7EC001037
ETIM8EC001037

ETIM data

ETIM: EC001037 - Motor starter/Motor starter combination

Value Unit
Suitable for emergency stop (EF001433) -
Supporting protocol for CAN (EF003053) -
Rated conditional short-circuit current, type 1, 600 Y/347 V (EF009608) -A
Rated power, 460 V, 60 Hz, 3-phase (EF009600) -kW
Rated operation power at AC-3, 230 V, 3-phase (EF009599) -kW
Supporting protocol for PROFINET CBA (EF007524) -
Supporting protocol for INTERBUS-Safety (EF006662) -
Supporting protocol for TCP/IP (EF003050) -
Number of auxiliary contacts as normally open contact (EF001376) -
Rated conditional short-circuit current, type 2, 230 V (EF009606) -A
External reset possible (EF003426) -
Degree of protection (NEMA) (EF011959) -
Type of motor starter (EF009598) -
Supporting protocol for AS-Interface Safety at Work (EF007519) -
Rated conditional short-circuit current, type 1, 480 Y/277 V (EF009607) -A
Supporting protocol for DeviceNet Safety (EF007520) -
Type of electrical connection for auxiliary- and control current circuit (EF006979) -
With fuse (EF006693) -
Supporting protocol for LON (EF003017) -
Number of auxiliary contacts as normally closed contact (EF001377) -
Temperature compensated overload protection (EF009604) -
Supporting protocol for INTERBUS (EF003054) -
Supporting protocol for SUCONET (EF003060) -
Supporting protocol for SERCOS (EF006657) -
Supporting protocol for Data-Highway (EF003058) -
Supporting protocol for DeviceNet (EF003059) -
Supporting protocol for other bus systems (EF003062) -
Type of electrical connection of main circuit (EF006819) -
Supporting protocol for EtherNet/IP (EF007521) -
Supporting protocol for SafetyBUS p (EF007527) -
Rated power, 575 V, 60 Hz, 3-phase (EF009601) -kW
Ambient temperature, upper operating limit (EF009603) -°C
Rated conditional short-circuit current, type 2, 400 V (EF009605) -A
Number of command positions (EF001372) -
Number of indicator lights (EF001965) -
Supporting protocol for PROFIBUS (EF003052) -
Rail mounting possible (EF003972) -
Supporting protocol for Foundation Fieldbus (EF007522) -
Supporting protocol for Modbus (EF003057) -
Supporting protocol for PROFINET IO (EF007525) -
Supporting protocol for PROFIsafe (EF007526) -
Rated operation current at AC-3, 400 V (EF009602) -A
With short-circuit release (EF006691) true
Rated control supply voltage Us at DC (EF003980) ['-', '-']V
Voltage type for actuating (EF008242) DC
Rated operation current Ie (EF001443) 12A
Overload release current setting (EF002336) ['4', '12']A
Release class (EF006668) Other
With transformer (EF000278) false
Coordination class according to IEC 60947-4-3 (EF012390) Class 1
Degree of protection (IP) (EF005474) IP20
Supporting protocol for ASI (EF003051) false
Width (EF000008) 30.0mm
Height (EF000040) 142.0mm
Depth (EF000049) 150.0mm
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Rated control supply voltage Us at AC 60HZ (EF003979) -V
Rated operation power at AC-3, 400 V (EF001364) -kW



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RK1308-0BE00-0CP0 3RK1308-0BE00-0CP0 EN_3RK1308-0BE00-0CP0.pdf 358 Kbytes 3RK1308-0BE00-0CP0 3RK1308-0BE00-0CP0 EN_3RK1308-0BE00-0CP0.pdf

Reviews (0) ▲

No customer reviews for the moment.

Add Review
Add Review
hide form
Rating:
Name:
Email:
Subject:
Text:
Do you recommend this product to buy?
  Captcha
  Add review

Latest Customer Reviews

All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.

Newsletter
Follow us
My account
