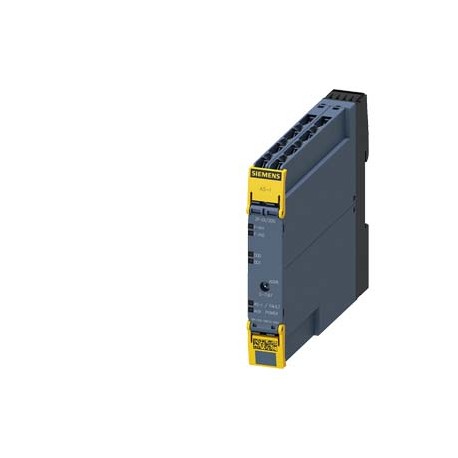

3RK1405-2BE00-2AA2 SIEMENS ASIsafe SlimLine Compact module SC17.5F digital safety 2 F-DI/2 DQ, IP20 2 x inpu.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RK1405-2BE00-2AA2 SIEMENS ASIsafe SlimLine Compact module SC17.5F digital safety 2 F-DI/2 DQ, IP20 2 x inpu..

3RK1405-2BE00-2AA2

SIEMENS

ASIsafe SlimLine Compact module SC17.5F digital safety 2 F-DI/2 DQ, IP20 2 x input for mechanical sensors 2 x standard output 24 V DC Output supply can be switched Screw terminals Overall width 17.5 mm

COMP MODULE. ASISAFE SLIMLINE IP20, SLAVE SEC., 2F-DI/2DQ SCREW TERMINALS, 17.5 MM FOR MECHANICAL SENSORS 2 STANDARD OUTPUTS.

More details


PLC's > Fieldbus, decentr. periphery - digital I/O module

CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $328.67
Unit price: $328.67
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

ASIsafe SlimLine Compact module SC17.5F digital safety 2 F-DI/2 DQ, IP20 2 x input for mechanical sensors 2 x standard output 24 V DC Output supply can be switched Screw terminals Overall width 17.5 mm
product designationSlimline Compact I/O module for use in the control cabinet
design of the productAS-i SC17.5F, 2F-DI/2DQ
General technical data
protection class IPIP20
design of the slave typestandard slave
AS-Interface slave profileS-7.B.F
ID1 codeF; Factory setting, changeable
operating voltage according to AS-Interface specification18 ... 31.6 V
product function suitable for AS-i Power24VYes
protocol is supported AS-Interface protocolYes
consumed current from profile conductors of the AS-Interface
● at 30 V maximum270 mA
● at 24 V with AS-i Power24V maximum270 mA
type of address setting of AS-i slavesvia front addressing socket
display version
● as status display of the inputs/outputsLED yellow/red
● for AS-InterfaceLED green/red
reference code
● according to EN 61346-2K
● according to DIN 40719 extended according to IEC 204-2 according to IEC 750A
shock resistance15g / 11 ms (modules) or 10g / 11 ms (modules with device connector)
other informationAn auxiliary external feed (AUX POWER) of between 20 and 30 V DC is necessary for supplying the output circuits. The auxiliary feed must comply with IEC 60990 (PELV), protection class III.
Digital Inputs
number of digital inputs0
number of digital inputs safety-related2
type of input characteristicmechanical contacts
Digital Outputs
number of digital outputs2
type of switching outputPNP transistor
product function for power supply reverse polarity protectionYes
property of the output short-circuit proofYes
product functionBuilt-in induction protection
total current of digital outputs per module maximum0.5 A
● note0.2 A with supply via AS interface / 0.5 A with supply via Uaux
type of voltage supply at the outputsAS interface / U_AUX switchable
ampacity of the semiconductor output at DC-13 at 24 V0.5 A; 0.15 A with supply via AS interface / 0.5 A with supply via Uaux
Analog inputs
number of analog inputs0
Analog outputs
number of analog outputs0
Safety related data
Safety Integrity Level (SIL) according to IEC 615083
performance level (PL) according to EN ISO 13849-1e
category according to EN ISO 13849-1up to Category 4
Safe failure fraction (SFF)99 %
PFHD with high demand rate according to EN 620610.0000000045 1/h
PFDavg with low demand rate according to IEC 615080.000005
T1 value for proof test interval or service life according to IEC 6150820 y
Device connector
ampacity of the interface to the device connector
● for AS-Interface2 A
● for external auxiliary voltage4 A
Installation/ mounting/ dimensions
fastening methodscrew and snap-on mounting
height100 mm
width17.5 mm
depth120 mm
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +85 °C
Connections/ Terminals
type of electrical connection of the inputs and outputsScrew terminals
type of connectable conductor cross-sections
● solid1x (0.5 ... 2.5 mm²), 2x ( 0.5 ... 1.5 mm²)
● finely stranded with core end processing1x (0.25 ... 2.5 mm²), 2x (0.25 ... 1.0 mm²)
● finely stranded without core end processingNot permitted
● at AWG cables solid1x (20 ... 14), 2x (18 ... 16)
● at AWG cables strandedNot permitted
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCFunctional Safety/Safety of Machinery

CSA

Confirmation

UL

EAC

RCM

Miscellaneous

Declaration of ConformityTest CertificatesMarine / Shipping

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

Marine / Shippingother

RMRS / Russian Maritime Register

DNV-GL

ASI-Certification

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/18/2021
Date
5/10/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RK1405-2BE00-2AA2
Product DescriptionASIsafe SlimLine Compact module SC17.5F digital safety 2 F-DI/2 DQ, IP20 2 x input for mechanical sensors 2 x standard output 24 V DC Output supply can be switched Screw terminals Overall width 17.5 mm
Product familySlimLine Compact
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42C / 42C
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works10 Day/Days
Net Weight (kg)0,192 Kg
Packaging Dimension111,00 x 158,00 x 38,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209974562
UPC804766359699
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group3720
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-24-26-04
eClass7.127-24-26-04
eClass827-24-26-04
eClass927-24-26-04
eClass9.127-24-26-04
ETIM5EC001599
ETIM6EC001599
ETIM7EC001599
ETIM8EC001599
IDEA43566
UNSPSC1532-15-17-05

ETIM data

ETIM: EC001599 - Fieldbus, decentr. periphery - digital I/O module

Value Unit
Height (EF000040) -mm
Time delay at signal exchange (EF002382) -ms
Number of HW-interfaces USB (EF003025) -
Appendant operation agent (Ex ib) (EF004142) -
Number of HW-interfaces Wireless (EF006933) -
Supporting protocol for PROFINET CBA (EF007524) -
Type of output voltage (EF008222) -
SIL according to IEC 61508 (EF009889) -
Supporting protocol for SERCOS (EF006657) -
Input current at signal 1 (EF001428) -mA
Fieldbus connection over separate bus coupler possible (EF004002) -
Number of interfaces PROFINET (EF006932) -
Rack-assembly possible (EF007018) -
Radio standard WLAN 802.11 (EF007179) -
Supporting protocol for PROFIsafe (EF007526) -
Supply voltage AC 60 Hz (EF007533) -V
Permitted voltage at output (EF007553) -V
Digital inputs configurable (EF008516) -
Radio standard Bluetooth (EF007178) -
Voltage type of supply voltage (EF002991) -
Number of HW-interfaces serial TTY (EF003024) -
Supporting protocol for CAN (EF003053) -
Front build in possible (EF007016) -
Supporting protocol for SUCONET (EF003060) -
Appendant operation agent (Ex ia) (EF004141) -
Supporting protocol for SafetyBUS p (EF007527) -
Permitted voltage at input (EF007554) -V
Number of HW-interfaces other (EF003027) -
Supporting protocol for KNX (EF003055) -
Depth (EF000049) -mm
Number of digital outputs (EF001993) -
Supporting protocol for ASI (EF003051) -
Degree of protection (IP) (EF005474) -
Supporting protocol for AS-Interface Safety at Work (EF007519) -
Digital outputs configurable (EF008520) -
IO link master (EF007298) -
Number of HW-interfaces RS-485 (EF003023) -
Number of HW-interfaces parallel (EF003026) -
Type of voltage (input voltage) (EF003033) -
Output current (EF003202) -A
Short-circuit protection, outputs available (EF003203) -
Explosion safety category for dust (EF003998) -
Supporting protocol for DeviceNet Safety (EF007520) -
Supply voltage AC 50 Hz (EF007532) -V
Width (EF000008) -mm
Suitable for safety functions (EF001597) -
Number of HW-interfaces industrial Ethernet (EF003020) -
Number of HW-interfaces RS-232 (EF003021) -
Supporting protocol for Modbus (EF003057) -
Supporting protocol for DeviceNet (EF003059) -
Supporting protocol for other bus systems (EF003062) -
System accessory (EF004118) -
Supporting protocol for INTERBUS-Safety (EF006662) -
Wall mounting/direct mounting (EF007020) -
Supporting protocol for LON (EF003017) -
Supporting protocol for PROFIBUS (EF003052) -
Supporting protocol for INTERBUS (EF003054) -
Supporting protocol for Data-Highway (EF003058) -
Type of electric connection (EF003961) -
Explosion safety category for gas (EF003997) -
Performance level according to EN ISO 13849-1 (EF007399) -
Supporting protocol for Foundation Fieldbus (EF007522) -
Supporting protocol for PROFINET IO (EF007525) -
Supply voltage DC (EF007534) -V
Radio standard GPRS (EF008523) -
Type of digital output (EF003601) -
Number of digital inputs (EF001992) -
Number of HW-interfaces RS-422 (EF003022) -
With optical interface (EF003028) -
Supporting protocol for TCP/IP (EF003050) -
Supporting protocol for EtherNet/IP (EF007521) -
Radio standard GSM (EF008524) -
Rail mounting possible (EF003972) -
Category according to EN 954-1 (EF006782) -
Radio standard UMTS (EF008525) -
