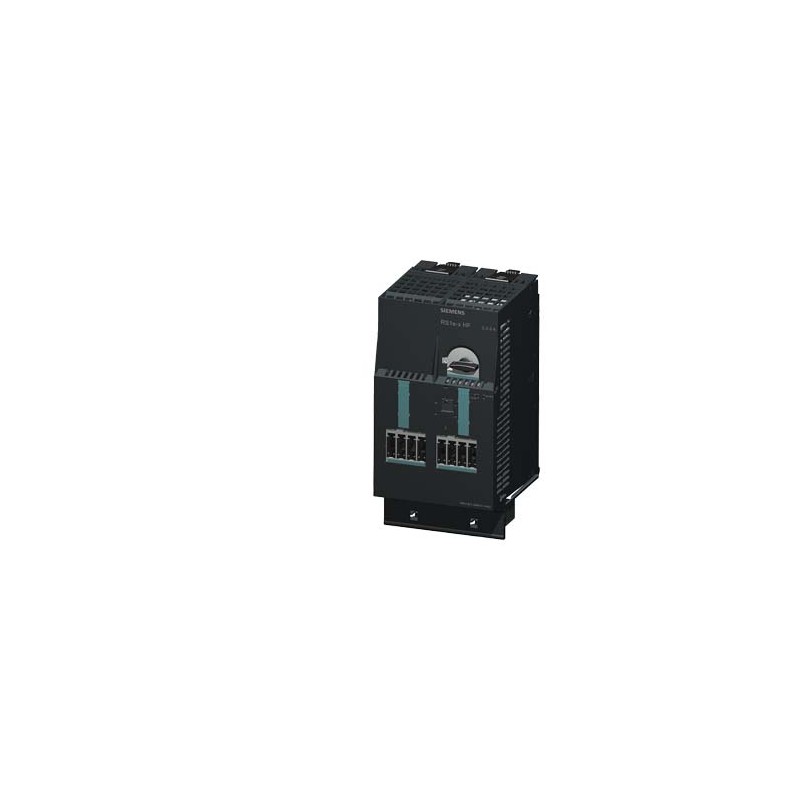

3RK1301-0CB10-1AB4 SIEMENS RS1E-X for ET200S High Feature reversing starter Setting range 2.4...16 A Mechani.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

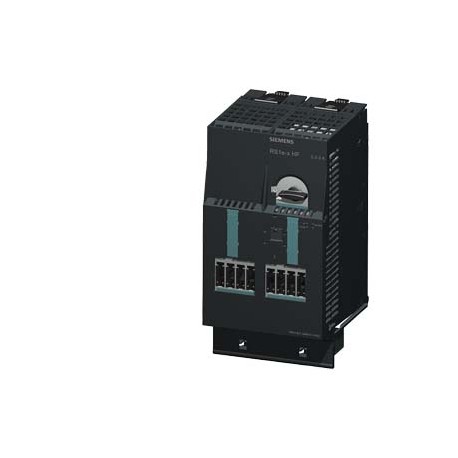

3RK1301-0CB10-1AB4 SIEMENS RS1E-X for ET200S High Feature reversing starter Setting range 2.4...16 A Mechani..

3RK1301-0CB10-1AB4

SIEMENS

RS1E-X for ET200S High Feature reversing starter Setting range 2.4...16 A Mechanical switching Electronic protection AC-3, up to 7.5 kW / 400 V expandable for Brake control module 2DI module 2DI module Motor starter ES Circuit breaker signaling parameterizable DPV 1-capable PROFIENERGY-capable to PN

RS1E-X FOR ET200S INVERSES STARTER. HIGH FEATURE RANGE OF REGULATION 2,4...16A MECHANICAL MANEUVER ELECTRONIC PROTECTION AC-3/UP TO 7,5KW/400V EXPANDABLE FOR MODULE BRAKE CONTROL 2DI MODULO MODULO MODULO 2DI MOTOR STARTER IS SENALIZ. PARAMETERIZABLE AUTOMATIC SWITCH SUITABLE FOR DPV 1 SUITABLE FOR PROFIENERGY IN PN. Manufactured to order. Non-Cancelable Non-Returnable.

More details


CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

RS1E-X for ET200S High Feature reversing starter Setting range 2.4...16 A Mechanical switching Electronic protection AC-3, up to 7.5 kW / 400 V expandable for Brake control module 2DI module 2DI module Motor starter ES Circuit breaker signaling parameterizable DPV 1-capable PROFIENERGY-capable to PN
product brand nameSIMATIC
product designationMotor starters
design of the productreversing starter
product type designationET 200S
General technical data
trip classCLASS 5, 10, 15, 20
product function on-site operationYes
power loss [W] for rated value of the current without load current share typical5.28 W
insulation voltage rated value500 V
degree of pollution3 at 400 V, 2 at 500 V according to IEC60664 (IEC61131)
surge voltage resistance rated value6 kV
maximum permissible voltage for safe isolation between main and auxiliary circuit400 V
shock resistance5g / 11 ms
vibration resistance2g
mechanical service life (switching cycles) of the main contacts typical100 000
type of assignment2
reference code according to IEC 81346-2Q
Substance Prohibitance (Date)07/01/2006
product function
● direct startNo
● reverse startingYes
product component motor brake outputYes
product feature
● brake control with 230 V ACNo
● brake control with 24 V DCNo
● brake control with 180 V DCNo
● brake control with 500 V DCNo
product extension braking module for brake controlYes
product function short circuit protectionYes
design of short-circuit protectioncircuit-breakers
breaking capacity maximum short-circuit current (Icu)
● at 400 V rated value50 kA
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1CISPR11, ambience A (industrial sector)
EMC immunity according to IEC 60947-1corresponds to degree of severity 3, ambience A (industrial sector)
conducted interference
● due to burst according to IEC 61000-4-42 kV on voltage supply, inputs and outputs
● due to conductor-earth surge according to IEC 61000-4-52 kV (U > 24 V DC)
● due to conductor-conductor surge according to IEC 61000-4-51 kV (U > 24 V DC)
field-based interference according to IEC 61000-4-380 MHz ... 1 GHz 10 V/m, 1.4 GHz ...2 Hz 3 V/m, 2 GHz ... 2.7 GHz 1 V/m
Safety related data
B10 value with high demand rate according to SN 319201 000 000
proportion of dangerous failures
● with low demand rate according to SN 3192050 %
● with high demand rate according to SN 3192075 %
failure rate [FIT]
● with low demand rate according to SN 31920100 FIT
T1 value for proof test interval or service life according to IEC 6150820 y
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe
Main circuit
number of poles for main current circuit3
design of the switching contactelectromechanical
adjustable current response value current of the current-dependent overload release2.4 ... 16 A
type of the motor protectionsolid-state
operating voltage rated value200 ... 400 V
operating frequency 1 rated value50 Hz
operating frequency 2 rated value60 Hz
relative positive tolerance of the operating frequency10 %
relative negative tolerance of the operating frequency10 %
operating range relative to the operating voltage at AC at 50 Hz200 ... 440 V
operational current
● at AC-3 at 400 V rated value16 A
operating power at AC-3 at 400 V rated value7.5 kW
operating power for 3-phase motors at 400 V at 50 Hz1.1 ... 7.5 kW
Inputs/ Outputs
product function
● digital inputs parameterizableYes
● digital outputs parameterizableNo
number of digital inputs2
number of sockets
● for digital output signals0
● for digital input signals0
Supply voltage
type of voltage of the supply voltageDC
supply voltage 1 at DC24 ... 24 V
supply voltage 1 at DC rated value
● minimum permissible20.4 V
● maximum permissible28.8 V
Control circuit/ Control
type of voltage of the control supply voltageDC
control supply voltage at DC rated value20.4 ... 28.8 V
control supply voltage 1
● at DC rated value20.4 ... 28.8 V
● at DC24 ... 24 V
Installation/ mounting/ dimensions
mounting positionvertical, horizontal
fastening methodpluggable on terminal module
height290 mm
width130 mm
depth150 mm
Ambient conditions
installation altitude at height above sea level maximum2 000 m
ambient temperature
● during operation0 ... 60 °C
● during storage-40 ... +70 °C
● during transport-40 ... +70 °C
relative humidity during operation5 ... 95 %
Communication/ Protocol
protocol is supported
● PROFIBUS DP protocolYes
● PROFINET protocolYes
design of the interface PROFINET protocolYes
product function bus communicationYes
protocol is supported AS-Interface protocolNo
product function
● supports PROFIenergy measured valuesYes
● supports PROFIenergy shutdownYes
address space memory of address range
● of the inputs2 byte
● of the outputs2 byte
type of electrical connection
● of the communication interfacevia backplane bus
● for communication transmissionvia backplane bus
Connections/ Terminals
type of electrical connection for main current circuitscrew-type terminals
type of electrical connection
● 1 for digital input signalsusing control module
● 2 for digital input signalsusing control module
type of electrical connection
● at the manufacturer-specific device interfaceplug
● for main energy infeedscrew-type terminals
● for load-side outgoing feederScrew-type terminals
● for main energy transmissionvia energy bus
● for supply voltage line-sidevia backplane bus
● for supply voltage transmissionvia backplane bus
UL/CSA ratings
operating voltage at AC at 60 Hz according to CSA and UL rated value600 V
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMC

CSA

Confirmation

CCC

UL

EAC

RCM

Declaration of ConformityTest CertificatesotherDangerous Good

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Type Test Certificates/Test Report

Confirmation

PROFIBUS-Certification

Transport Information

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/15/2020
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RK1301-0CB10-1AB4
Product DescriptionRS1E-X for ET200S High Feature reversing starter Setting range 2.4...16 A Mechanical switching Electronic protection AC-3, up to 7.5 kW / 400 V expandable for Brake control module 2DI module 2DI module Motor starter ES Circuit breaker signaling parameterizable DPV 1-capable PROFIENERGY-capable to PN
Product familyHigh Feature motor starters
Product Lifecycle (PLM)PM400:Phase Out Started
PLM Effective DateProduct phase-out since: 01.10.2020
Notes
Sucessor:The successor is the ET 200SP system with its compact motor starter modules.
Price data
Region Specific PriceGroup / Headquarter Price Group42D / 42D
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works10 Day/Days
Net Weight (kg)2,450 Kg
Packaging Dimension229,00 x 333,00 x 197,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209890275
UPC040892920581
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group4962
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead titanium zirconium oxide

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-09-05
eClass7.127-37-09-05
eClass827-37-09-05
eClass927-37-09-05
eClass9.127-37-09-05
ETIM5EC001037
ETIM6EC001037
ETIM7EC001037
ETIM8EC001037
UNSPSC1439-12-15-21
UNSPSC1539-12-15-21

ETIM data

ETIM: EC001037 - Motor starter/Motor starter combination

Value Unit
Type of electrical connection for auxiliary- and control current circuit (EF006979) -
Rated operation power at AC-3, 230 V, 3-phase (EF009599) -kW
Supporting protocol for DeviceNet Safety (EF007520) -
Supporting protocol for INTERBUS-Safety (EF006662) -
Supporting protocol for other bus systems (EF003062) -
Suitable for emergency stop (EF001433) -
Supporting protocol for PROFIBUS (EF003052) -
Number of indicator lights (EF001965) -
Rated power, 460 V, 60 Hz, 3-phase (EF009600) -kW
Supporting protocol for PROFIsafe (EF007526) -
Number of auxiliary contacts as normally open contact (EF001376) -
Rated conditional short-circuit current, type 1, 600 Y/347 V (EF009608) -A
Supporting protocol for PROFINET IO (EF007525) -
Rated power, 575 V, 60 Hz, 3-phase (EF009601) -kW
Supporting protocol for PROFINET CBA (EF007524) -
External reset possible (EF003426) -
Supporting protocol for SUCONET (EF003060) -
Supporting protocol for Data-Highway (EF003058) -
Supporting protocol for INTERBUS (EF003054) -
Supporting protocol for AS-Interface Safety at Work (EF007519) -
Supporting protocol for Modbus (EF003057) -
Rated conditional short-circuit current, type 2, 230 V (EF009606) -A
Ambient temperature, upper operating limit (EF009603) -°C
Supporting protocol for CAN (EF003053) -
Rail mounting possible (EF003972) -
Supporting protocol for EtherNet/IP (EF007521) -
Degree of protection (NEMA) (EF011959) -
Temperature compensated overload protection (EF009604) -
Supporting protocol for LON (EF003017) -
Supporting protocol for TCP/IP (EF003050) -
Rated conditional short-circuit current, type 1, 480 Y/277 V (EF009607) -A
Supporting protocol for Foundation Fieldbus (EF007522) -
Rated conditional short-circuit current, type 2, 400 V (EF009605) -A
Number of command positions (EF001372) -
Number of auxiliary contacts as normally closed contact (EF001377) -
Supporting protocol for DeviceNet (EF003059) -
Supporting protocol for SERCOS (EF006657) -
With fuse (EF006693) -
Supporting protocol for SafetyBUS p (EF007527) -
Type of motor starter (EF009598) Reversing starter
With short-circuit release (EF006691) true
Rated control supply voltage Us at DC (EF003980) ['20.4', '28.8']V
Voltage type for actuating (EF008242) DC
Rated operation power at AC-3, 400 V (EF001364) 7.5kW
Rated operation current Ie (EF001443) -A
Rated operation current at AC-3, 400 V (EF009602) -A
Overload release current setting (EF002336) ['2.4', '16']A
Release class (EF006668) Other
Type of electrical connection of main circuit (EF006819) Screw connection
With transformer (EF000278) false
Coordination class according to IEC 60947-4-3 (EF012390) Class 2
Degree of protection (IP) (EF005474) IP20
Supporting protocol for ASI (EF003051) false
Width (EF000008) 130.0mm
Height (EF000040) 290.0mm
Depth (EF000049) 150.0mm
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Rated control supply voltage Us at AC 60HZ (EF003979) -V



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RK1301-0CB10-1AB4 3RK1301-0CB10-1AB4 EN_3RK1301-0CB10-1AB4.pdf 193 Kbytes 3RK1301-0CB10-1AB4 3RK1301-0CB10-1AB4 EN_3RK1301-0CB10-1AB4.pdf

Reviews (0) ▲

No customer reviews for the moment.

Add Review
Add Review
hide form
Rating:
Name:
Email:
Subject:
Text:
Do you recommend this product to buy?
  Captcha
  Add review

Latest Customer Reviews

All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.

Newsletter
Follow us
My account
