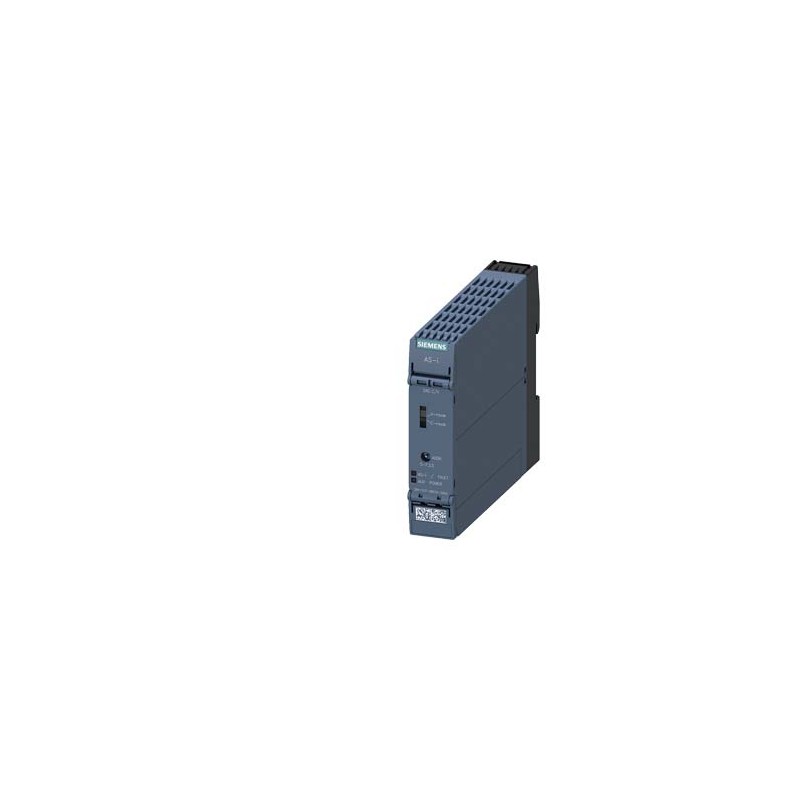

3RK1107-0BE00-2AA2 SIEMENS AS-i SlimLine Compact module SC22.5, IP20, analog, 2AQ-C/V Screw terminals 4 x an.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RK1107-0BE00-2AA2 SIEMENS AS-i SlimLine Compact module SC22.5, IP20, analog, 2AQ-C/V Screw terminals 4 x an..

3RK1107-0BE00-2AA2

SIEMENS

AS-i SlimLine Compact module SC22.5, IP20, analog 2AQ-C/V screw terminals 2 x analog output outputs switchable C/V overall width 22.5 mm

More details


PLC's > Fieldbus, decentr. periphery - analogue I/O module

CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $325.49
Unit price: $325.49

Quantity Price
1+$325.49
2+$306.24
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

AS-i SlimLine Compact module SC22.5, IP20, analog 2AQ-C/V screw terminals 2 x analog output outputs switchable C/V overall width 22.5 mm
product designationSlimline Compact I/O module for use in the control cabinet
design of the productAS-i SC22.5, 2AQ voltage/current
General technical data
protection class IPIP20
design of the slave typestandard slave
AS-Interface slave profileS-7.3.5
ID1 codeF; Factory setting, changeable
operating voltage according to AS-Interface specification18 ... 31.6 V
product function suitable for AS-i Power24VYes
protocol is supported AS-Interface protocolYes
consumed current from profile conductors of the AS-Interface
● at 30 V maximum200 mA
● at 24 V with AS-i Power24V maximum200 mA
type of address setting of AS-i slavesvia front addressing socket
display version
● for AS-InterfaceLED green/red
reference code
● according to EN 61346-2K
● according to DIN 40719 extended according to IEC 204-2 according to IEC 750A
shock resistance15g / 11 ms (modules) or 10g / 11 ms (modules with device connector)
other informationAn auxiliary external feed (AUX POWER) of between 20 and 30 V DC is necessary for supplying the output circuits. The auxiliary feed must comply with IEC 60990 (PELV), protection class III.
Digital Inputs
number of digital inputs0
number of digital inputs safety-related0
Digital Outputs
number of digital outputs0
type of voltage supply at the outputsAS interface or U_AUX
Analog inputs
number of analog inputs0
A/D resolution for analog inputs/outputs12 bit
Analog outputs
number of analog outputs2
signal range at analog output0 ... 20 mA; 4 ... 20 mA; +/- 20 mA; 1 ... 5 V; 0 ... 10 V; +/- 10 V
product function parameterizable output variableYes
Errors/ accuracies
relative symmetrical operational limit relating to input range/output range1 %; full sclae
relative symmetrical basic error limit relating to input range/output range at 25 °C0.8 %
symmetrical temperature error per K relating to input range/output range0.01 %/K
relative symmetrical linearity error relating to input range/output range0.08 %
relative symmetrical repeat accuracy relating to input range/output range in settled state 25 °C0.1 %
Device connector
ampacity of the interface to the device connector
● for AS-Interface2 A
● for external auxiliary voltage4 A
Installation/ mounting/ dimensions
fastening methodscrew and snap-on mounting
height100 mm
width22.5 mm
depth120 mm
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +85 °C
Connections/ Terminals
type of electrical connection of the inputs and outputsScrew terminals
type of connectable conductor cross-sections
● solid1x (0.5 ... 2.5 mm²), 2x ( 0.5 ... 1.5 mm²)
● finely stranded with core end processing1x (0.25 ... 2.5 mm²), 2x (0.25 ... 1.0 mm²)
● finely stranded without core end processingNot permitted
● at AWG cables solid1x (20 ... 14), 2x (18 ... 16)
● at AWG cables strandedNot permitted
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

CSA

Confirmation

UL

EAC

RCM

EC/EU-Declaration of Conformity

Test CertificatesMarine / Shipping

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

Marine / Shippingother

DNV-GL

ASI-Certification

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/18/2021
Date
5/10/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RK1107-0BE00-2AA2
Product DescriptionAS-i SlimLine Compact module SC22.5, IP20, analog 2AQ-C/V screw terminals 2 x analog output outputs switchable C/V overall width 22.5 mm
Product familySlimLine Compact
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42C / 42C
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works10 Day/Days
Net Weight (kg)0,201 Kg
Packaging Dimension111,00 x 159,00 x 38,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209974586
UPC804766359637
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group3720
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Dicyclohexyl phthalate (DCHP)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-24-26-01
eClass7.127-24-26-01
eClass827-24-26-01
eClass927-24-26-01
eClass9.127-24-26-01
ETIM5EC001596
ETIM6EC001596
ETIM7EC001596
ETIM8EC001596
IDEA43562
UNSPSC1532-15-17-05

ETIM data

ETIM: EC001596 - Fieldbus, decentr. periphery - analogue I/O module

Value Unit
Input, thermocouple (EF003208) -
Input, current (EF003204) -
Output, current (EF003212) -
Input, resistor (EF003206) -
Number of HW-interfaces USB (EF003025) -
Output, voltage (EF003213) -
Degree of protection (NEMA) (EF011959) -
Input, voltage (EF003205) -
Supply voltage AC 50 Hz (EF007532) ['-', '-']V
Supply voltage AC 60 Hz (EF007533) ['-', '-']V
Supply voltage DC (EF007534) ['-', '-']V
Voltage type of supply voltage (EF002991) -
Input, resistance thermometer (EF003207) -
Input signal, configurable (EF003209) -
Resolution of the analogue inputs (EF003575) 12Bit
Output signal configurable (EF003214) true
Resolution of the analogue outputs (EF003577) 12Bit
Number of analogue inputs (EF001994) 0
Number of analogue outputs (EF001995) 2
Analogue inputs configurable (EF008518) -
Analogue outputs configurable (EF008519) true
Number of HW-interfaces industrial Ethernet (EF003020) 0
Number of interfaces PROFINET (EF006932) 0
Number of HW-interfaces RS-232 (EF003021) 0
Number of HW-interfaces RS-422 (EF003022) 0
Number of HW-interfaces RS-485 (EF003023) 0
Number of HW-interfaces serial TTY (EF003024) 0
Number of HW-interfaces parallel (EF003026) 0
Number of HW-interfaces Wireless (EF006933) 0
Number of HW-interfaces other (EF003027) 0
Supporting protocol for TCP/IP (EF003050) false
Supporting protocol for PROFIBUS (EF003052) false
Supporting protocol for CAN (EF003053) false
Supporting protocol for INTERBUS (EF003054) false
Supporting protocol for ASI (EF003051) true
Supporting protocol for KNX (EF003055) false
Supporting protocol for Modbus (EF003057) false
Supporting protocol for Data-Highway (EF003058) false
Supporting protocol for DeviceNet (EF003059) false
Supporting protocol for SUCONET (EF003060) false
Supporting protocol for LON (EF003017) false
Supporting protocol for PROFINET IO (EF007525) false
Supporting protocol for PROFINET CBA (EF007524) false
Supporting protocol for SERCOS (EF006657) false
Supporting protocol for Foundation Fieldbus (EF007522) false
Supporting protocol for EtherNet/IP (EF007521) false
Supporting protocol for AS-Interface Safety at Work (EF007519) false
Supporting protocol for DeviceNet Safety (EF007520) false
Supporting protocol for INTERBUS-Safety (EF006662) false
Supporting protocol for PROFIsafe (EF007526) false
Supporting protocol for SafetyBUS p (EF007527) false
Supporting protocol for other bus systems (EF003062) false
Radio standard Bluetooth (EF007178) false
Radio standard WLAN 802.11 (EF007179) false
Radio standard GPRS (EF008523) false
Radio standard GSM (EF008524) false
Radio standard UMTS (EF008525) false
IO link master (EF007298) false
System accessory (EF004118) true
Degree of protection (IP) (EF005474) IP20
Type of electric connection (EF003961) Other
Fieldbus connection over separate bus coupler possible (EF004002) -
Rail mounting possible (EF003972) FALSE
Wall mounting/direct mounting (EF007020) FALSE
Front build in possible (EF007016) FALSE
Rack-assembly possible (EF007018) FALSE
Suitable for safety functions (EF001597) false
Category according to EN 954-1 (EF006782) -
SIL according to IEC 61508 (EF009889) None
Performance level according to EN ISO 13849-1 (EF007399) -
Appendant operation agent (Ex ia) (EF004141) -
Appendant operation agent (Ex ib) (EF004142) -
Explosion safety category for gas (EF003997) FALSE
Explosion safety category for dust (EF003998) FALSE
Width (EF000008) 22.5mm
Height (EF000040) 100.0mm
Depth (EF000049) 120.0mm


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG SIEMENS SIRIUS INDUSTRIAL CONTROLS EN.pdf 279 Mbytes
3RK1107-0BE00-2AA2 3RK1107-0BE00-2AA2 EN_3RK1107-0BE00-2AA2.pdf 256 Kbytes 3RK1107-0BE00-2AA2 3RK1107-0BE00-2AA2 EN_3RK1107-0BE00-2AA2.pdf
