644.0350-SS SCAME CONTROL STATION EX 220x120x90 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

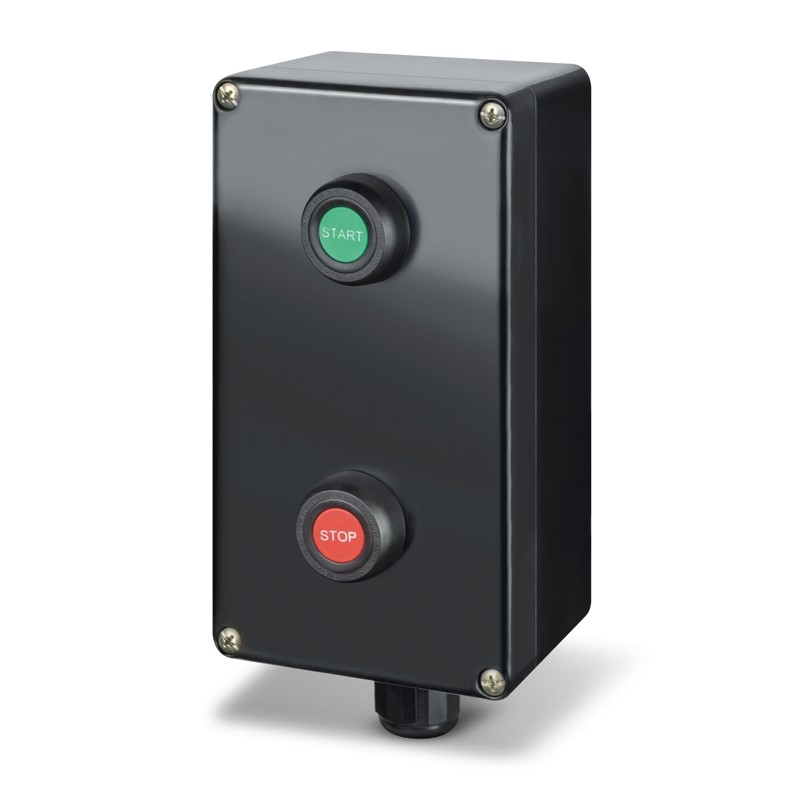

644.0350-SS SCAME CONTROL STATION EX 220x120x90

644.0350-SS

SCAME

CONTROL STATION EX 220x120x90

IP66 220x120x90mm WALL ENCLOSURE

220x120x90mm IP66 GW 960°C TERMINAL BOX 1xSTART 2NO + 1xSTOP 2NC BLACK THERMOSETTING

More details


Connection devices > Box/housing for surface mounting on the wall/ceiling

Distribution assemblies - SCAME > ZENITH-P Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $420.33
Unit price: $420.33
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ZENITH-P Series
Synthetical description
SURFACE MOUNTING BOX
Protection degree
Splash proof
Protection degree IP
IP66
Material
THERMOSETTING
Impact resistance
7J
Equipment
Control station
Function
1xSTART 2NO + 1xSTOP 2NC
GLOW WIRE
GW 960°C
Colour
BLACK
Dimensions
220x120x90mm
Cable entry
1xM25
Cable size
ø12-18mm
Rated current (value)
16,0 A
Category of use
AC12
Rated Sizing Voltage (Value)
250 V
Maximum power dissipation
3,330 W
Group and categories EX
II 2GD
Modo protezione gas
Ex db eb IIC T6 Gb
Dust protection
Ex tb IIIC T80°C Db IP66
Ambient temperature Ta min
-30 °C
Ambient temperature Ta max
40 °C
Catalogue notes
The enclosures in heat-hardening material of the ZENITH-P Series are mainly used for the following purpose:<br> - Command and control of equipment such as motors, fans, pumps, lighting systems, etc.<br> - Reading of physical quantities such as flow rate, level, pressure, temperature, current, voltage, frequency, number of revolutions, etc.<br><br> The arrangement of ATEX-certified accessories, terminals and actuators of the ZENITH-P enclosure can be made according to different configurations, based on the customer’s specific needs and always in compliance with the limits of the ATEX & IECEx certification.<br><br> SCAME can rely on an in-house design department (CIT) to perform quick feasibility analyses at the customer’s request. It also has equipment and qualified personnel for the construction and assembly of the ZENITH-P Series control stations.<br><br> The components and actuators found on the cover are suited for use in these enclosures and are covered by relevant component certificate; they were selected depending on brand and model based on the ATEX certification in force for the European Community, and IEC-Ex for the international market.
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
Download general catalog Download general catalog
