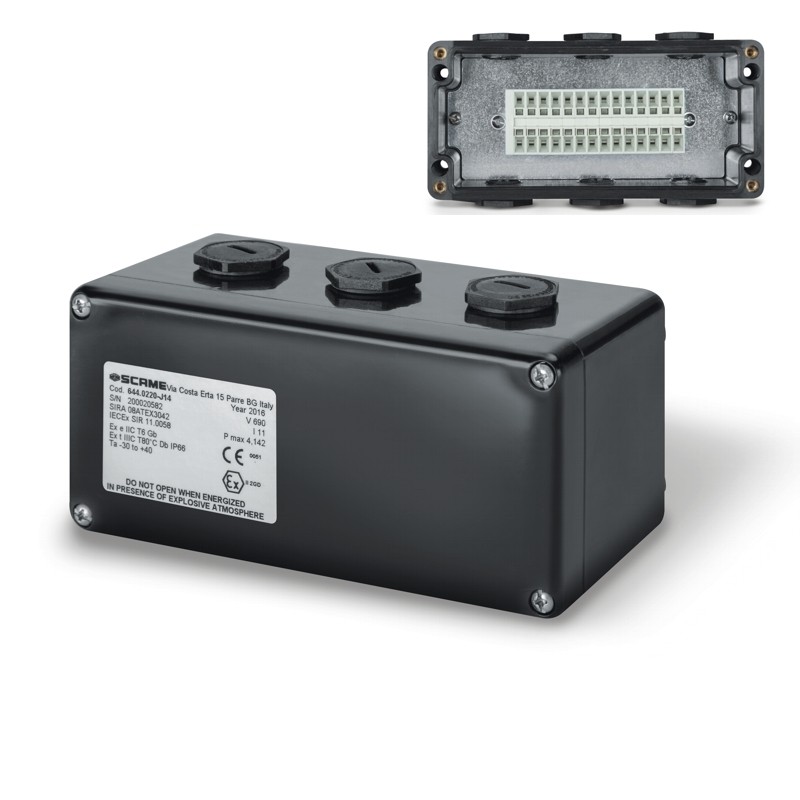

644.0220-J14 SCAME EX ENCLOSURE 160x75x75 14WAGO View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

644.0220-J14 SCAME EX ENCLOSURE 160x75x75 14WAGO

644.0220-J14

SCAME

EX ENCLOSURE 160x75x75 14WAGO

EX BOX 160x75x75mm 14WAGO

160x75x75mm IP66 GW 960°C TERMINAL BOX BLACK THERMOSETTING

More details


Connection devices > Box/housing for surface mounting on the wall/ceiling

Distribution assemblies - SCAME > ZENITH-P Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $164.71
Unit price: $164.71
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

Best sellers

More info



Commercial Series
ZENITH-P Series
Synthetical description
SURFACE MOUNTING BOX
Protection degree
Splash proof
Protection degree IP
IP66
Material
THERMOSETTING
Impact resistance
7J
Equipment
Junction box
Terminal block
14x2,5mm² CAGE TERMINAL
GLOW WIRE
GW 960°C
Colour
BLACK
Dimensions
160x75x75mm
Cable entry
6xM20 PLUGGED
Cable size
plugged
Rated current (value)
12,0 A
Rated Sizing Voltage (Value)
690 V
Maximum power dissipation
4,780 W
Group and categories EX
II 2GD
Modo protezione gas
Ex eb IIC T6 Gb
Dust protection
Ex tb IIIC T80°C Db IP66
Ambient temperature Ta min
-30 °C
Ambient temperature Ta max
40 °C
Catalogue notes
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.


Datasheet - PDF
