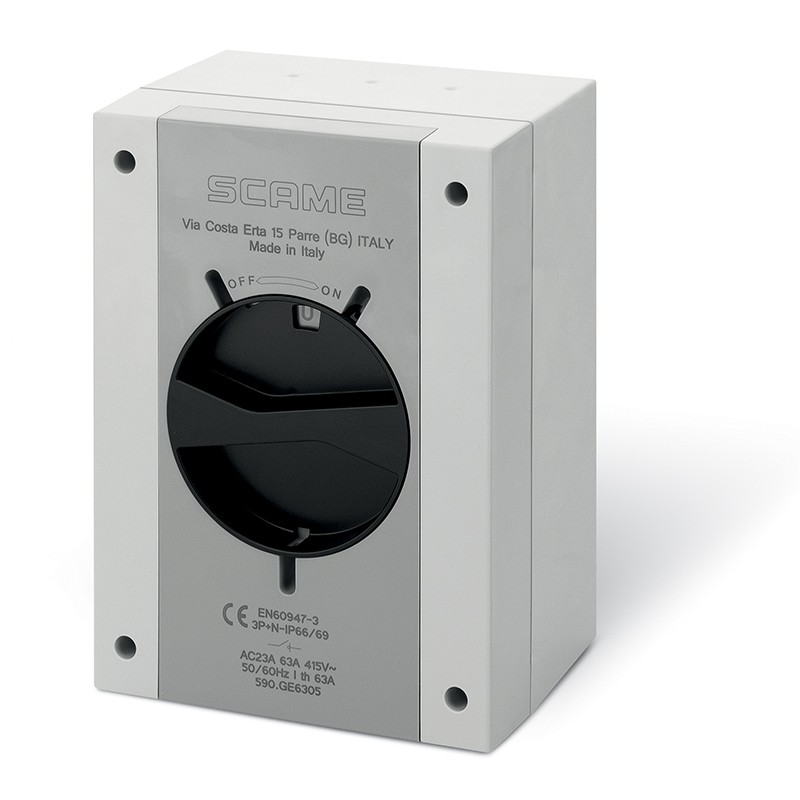

590.DCGE0825 SCAME ISOLATORS Series 800V dc 25A View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.DCGE0825 SCAME ISOLATORS Series 800V dc 25A

590.DCGE0825

SCAME

ISOLATORS Series 800V dc - 25A

SWITCHING INT. 25A DC 800V DC IP65

25A DC IP66/IP69 160x220x115mm D3 IK09 GENERAL GREY/BLACK GW 650°C

More details


Low-voltage industrial components > Switch disconnector

Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Commercial Series
ISOLATORS-PV Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
ENGINEERING PLASTIC
Protection degree IP
IP66/IP69
Installation temperature
-25°C/+60°C
Type
GENERAL
Colour
GREY/BLACK
Rated current
25A
Poles
DC
Poles in series
6
Switch size
D3
Rated voltage
800V
Dimensions
160x220x115mm
GLOW WIRE
GW 650°C
Protection degree IK
IK09
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Equipped with door interlock
Break-through cable entries on bottom side base
Reversible base
Blank side with drilling point marks on top side base


Datasheet - PDF
