> SCAME>Switches - SCAME>590.HEL3206 SCAME SWITCH DISCONNECTOR 32A 6P IP65
Previous Product Next Product

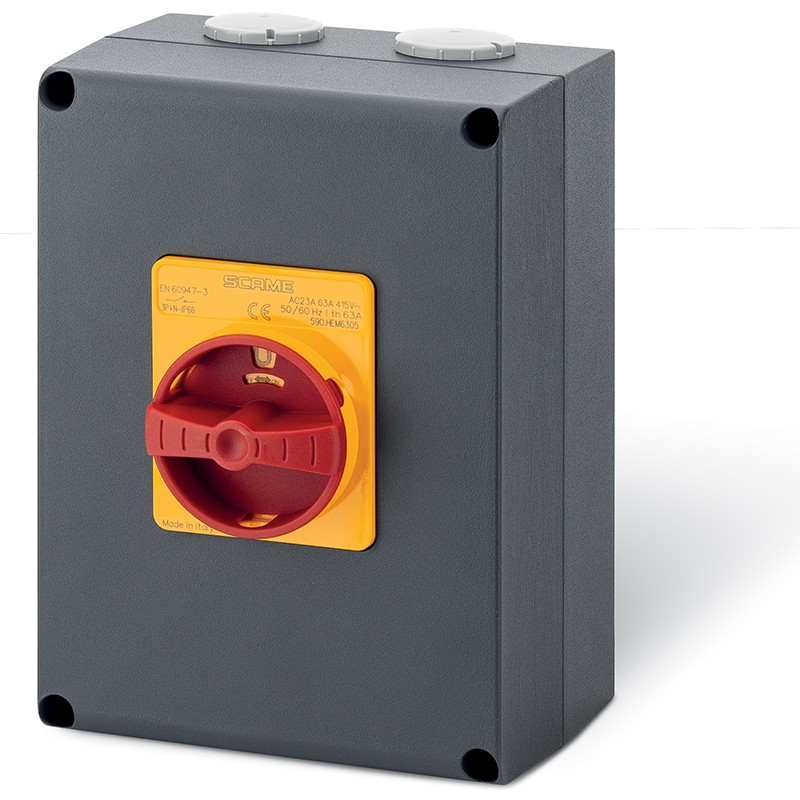

590.HEL3206 SCAME SWITCH DISCONNECTOR 32A 6P IP65 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.HEL3206 SCAME SWITCH DISCONNECTOR 32A 6P IP65

590.HEL3206

SCAME

SWITCH DISCONNECTOR 32A 6P IP65

MANOEUVRING INT. 32A 6P IP66 GENERAL

32A 6P IP66 150x210x107mm Y3 IK10 GENERAL YELLOW/RED LOCKABLE ON-OFF

More details


Low-voltage industrial components > Switch disconnector

Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-AL Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
DIE-CAST ALUMINIUM
Protection degree IP
IP66
Installation temperature
-25°C/+60°C
Type
GENERAL
Colour
YELLOW/RED
Rated current
32A
Poles
6P
Switch size
Y3
Rated voltage
690V
Dimensions
150x210x107mm
Notes1
LOCKABLE ON-OFF
Protection degree IK
IK10
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
40A
Current (Ie) in AC21A (415V)
40A
Current (Ie) in AC21A (500V)
40A
Current (Ie) in AC21A (690V)
40A
Current (Ie) in AC22A (415V)
32A
Current (Ie) in AC22A (500V)
32A
Current (Ie) in AC22A (690V)
32A
Current (Ie) in AC23A (415V)
32A
Current (Ie) in AC23A (500V)
32A
Current (Ie) in AC23A (690V)
25A
Power AC23A (415V)
15kW
Short-time current
1,1kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
32A
Terminals - Flexible wires
2.5-16mm²
Terminals - Rigid wires
2.5-16mm²
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Equipped with door interlock
Blank sides


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
Download general catalog Download general catalog
