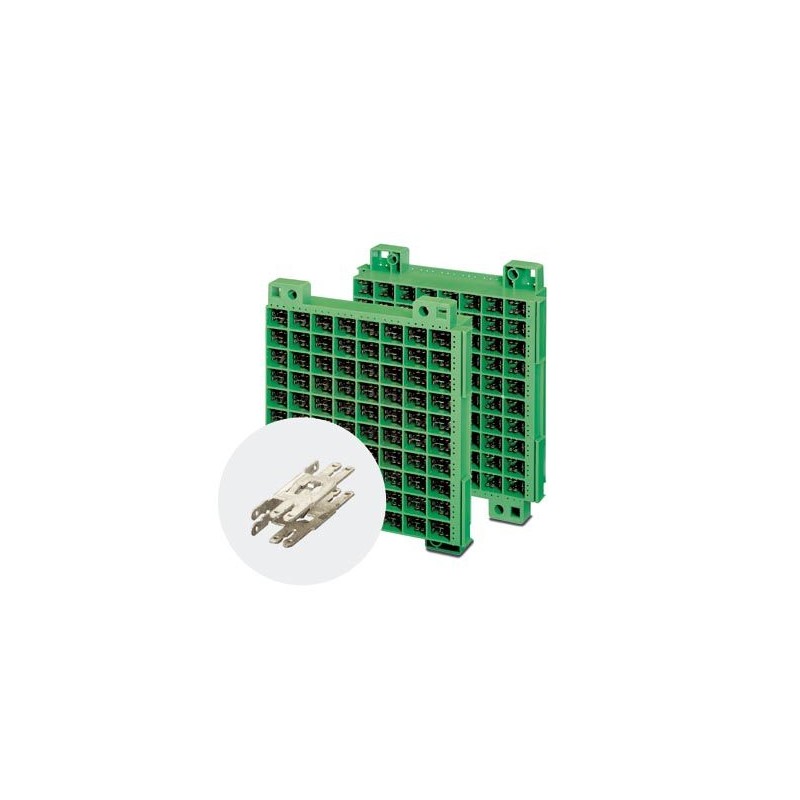

W 80/ 80-FS/FS(12-2,8-0,8) 0611017 PHOENIX CONTACT Connection honeycomb
W 80/ 80-FS/FS(12-2,8-0,8)
0611017
PHOENIX_CONTACT
Connection honeycomb
Enclosures connectivity
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 0611017 |
|---|---|
| Packing unit | 5 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 350 (CL-2005) |
| GTIN | 4017918003104 |
| Weight per Piece (excluding packing) | 541.980 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 960 |
| Color | green |
| Insulating material | PA/F |
| Flammability rating according to UL 94 | HB |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| Connection in acc. with standard | IEC / EN |
| Nominal current IN | 16 A (current data for slip-on connections in acc. with EN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.) |
| Maximum load current | 16 A |
| Nominal voltage UN | 1000 V (voltage data for slip-on connections in acc. with EN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.) |
| Open side panel | No |
| Number of positions | 80 |
Standards and Regulations
| Connection in acc. with standard | IEC / EN |
|---|---|
| Flammability rating according to UL 94 | HB |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141124eCl@ss 4.127141124eCl@ss 5.027141124eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141120eCl@ss 8.027141120
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX TERMINAL BLOCKS EN.pdf | 69 Mbytes |
|
