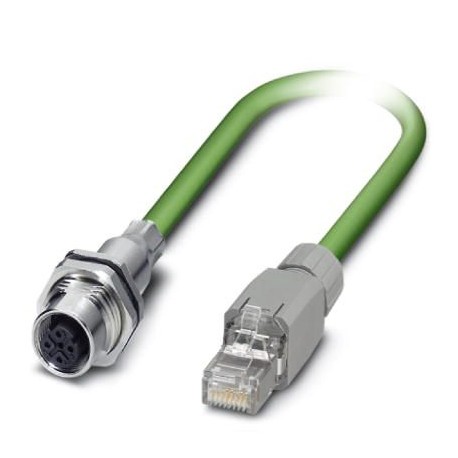

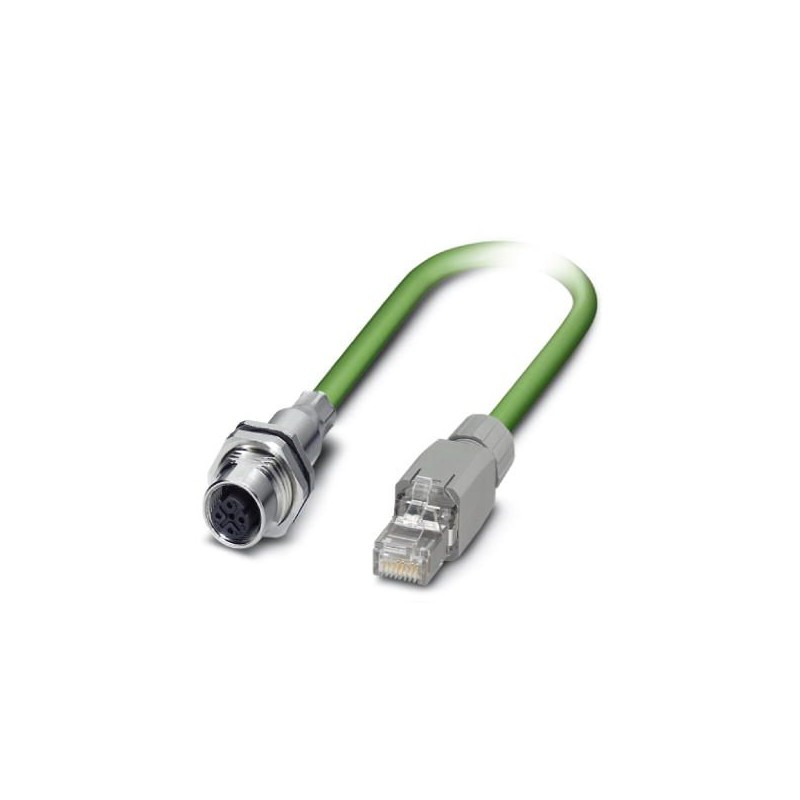

VS-M12FSBPS-IP20-93B/0,5
1404367
PHOENIX_CONTACT
1
Cable
Data and telecommunication > Patch cord copper (twisted pair)
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1404367 |
---|---|
Packing unit | 1 pc |
GTIN | 4046356692366 |
Weight per Piece (excluding packing) | 69.100 g |
Custom tariff number | 85444290 |
Country of origin | PL (Poland) |
Degree of protection | IP20 |
---|---|
Ambient temperature (operation) | -40 °C ... 70 °C (cable, fixed installation) |
-5 °C ... 50 °C (cable, flexible installation) | |
Plug / socket |
Note | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 10.1 Cord Sets for Balanced Cabling |
---|---|
Rated voltage | 50 V |
Number of positions | 4 |
Overvoltage category | I |
Degree of pollution | 1 |
Alternative short product description | PROFINET cable |
Locking type | Locking clips |
Rated voltage (III/2) | 50 V |
Rated voltage (III/3) | 50 V |
Housing material | CuZn/PA |
Cable type | PROFINET PVC stranded CAT5 |
---|---|
Cable type (abbreviation) | 93B |
UL AWM style | 21694 |
Signal type/category | PROFINET CAT5 (IEC 11801), 100 Mbps |
EtherCAT®CAT5 (IEC 11801), 100 Mbps | |
Cable structure | 1x4xAWG22/7; SF/TQ |
Conductor cross section | 4x 0.34 mm² |
AWG signal line | 22 |
Conductor structure signal line | 7x 0.25 mm |
Core diameter including insulation | 1.55 mm |
Wire colors | White, yellow, blue, orange |
Overall twist | Star quad |
Shielding | Aluminum-coated foil, tinned copper braided shield |
Optical shield covering | 85 % |
External sheath, color | green RAL 6018 |
Outer sheath thickness | approx. 0.9 mm |
External cable diameter D | 6.5 mm ±0.2 mm |
Minimum bending radius, fixed installation | 3 x D |
Minimum bending radius, flexible installation | 7 x D |
Cable weight | 67 kg/km |
Outer sheath, material | PVC |
Material, inner sheath | PVC |
Material conductor insulation | PE |
Conductor material | Tin-plated Cu litz wires |
Insulation resistance | ≥ 500 MΩ*km |
Loop resistance | ≤ 120.00 Ω/km |
Wave impedance | 100 Ω ±15 Ω (at 100 MHz) |
Near end crosstalk attenuation (NEXT) | 80 dB (with 1 MHz) |
76 dB (at 4 МHz) | |
70 dB (at 10 MHz) | |
65 dB (at 16 MHz) | |
63 dB (at 20 МHz) | |
60 dB (at 31.25 МHz) | |
55 dB (at 62.5 МHz) | |
50 dB (at 100 MHz) | |
Attenuation | 2.1 dB (with 1 MHz) |
4 dB (at 4 МHz) | |
6.3 dB (at 10 MHz) | |
8 dB (at 16 MHz) | |
9 dB (at 20 МHz) | |
11.4 dB (at 31.25 МHz) | |
16.5 dB (at 62.5 МHz) | |
21.3 dB (at 100 MHz) | |
Signal speed | 0.66 c |
Signal runtime | 5.3 ns/m |
Coupling resistance | ≤ 20.00 mΩ/m (at 10 MHz) |
Nominal voltage, cable | 600 V |
Test voltage Core/Core | 2000 V (50 Hz, 1 min.) |
Test voltage Core/Shield | 2000 V (50 Hz, 1 min.) |
Flame resistance | according to UL 1685 (CSA FT 4) |
Resistance to oil | Resistant to oil to a limited extent |
Other resistance | UV resistant According to UL 1581, Section 1200 |
Ambient temperature (operation) | -40 °C ... 70 °C (cable, fixed installation) |
-40 °C ... 70 °C (cable, flexible installation) | |
Ambient temperature (installation) | -20 °C ... 60 °C |
Ambient temperature (storage/transport) | -50 °C ... 70 °C |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 50 |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
