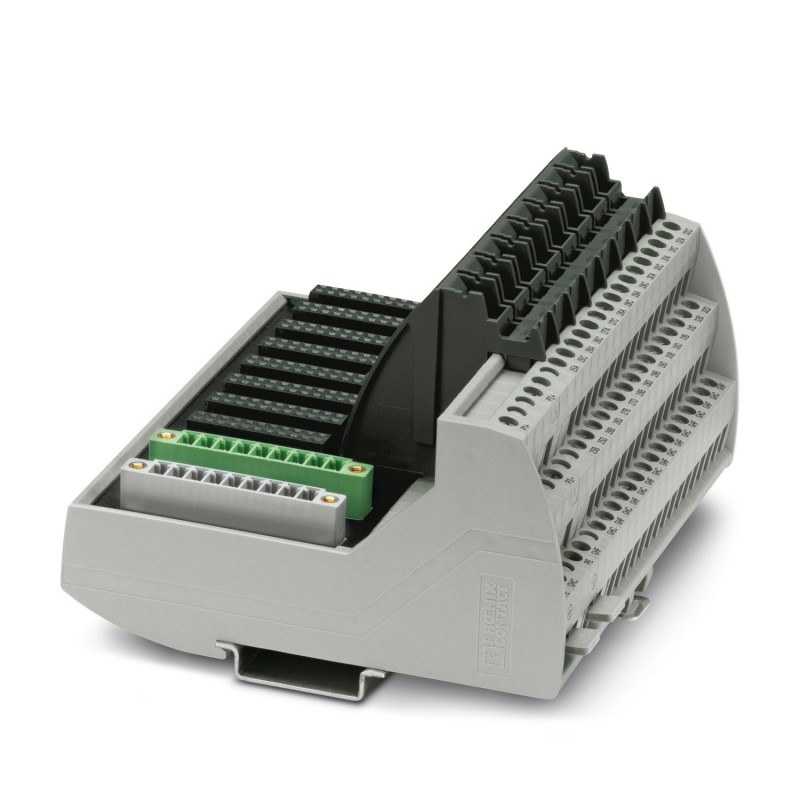

VIP/S/MC/BASE 25-32/L/C/EX
2907210
PHOENIX_CONTACT
1
Base module
INTERFACE Components (IF)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 2907210 |
---|---|
Packing unit | 1 pc |
Note | Made to Order (non-returnable) |
Catalog page | Page 553 (C-5-2017) |
GTIN | 4055626239521 |
Weight per Piece (excluding packing) | 449.200 g |
Custom tariff number | 85366990 |
Country of origin | US (United States) |
Ambient temperature (operation) | -40 °C ... 75 °C |
---|---|
Ambient temperature (storage/transport) | -40 °C ... 75 °C |
Max. operating voltage Umax | 30 V DC (P2 and field terminals) |
---|---|
Max. operating voltage | 30 V DC (P2 and field terminals) |
230 V AC (P2 and field terminals) | |
30 V DC (P1 terminals) | |
30 V (X30 and X31 connectors) | |
Max. perm. current (per branch) | 3 A (field signal) |
1 A (control contacts) | |
Max. permissible current | 15 A () |
Max. permissible total current | 15 A (per module) |
Status display | No |
Mounting position | As desired on 35 mm DIN rail in acc. with EN 60715 |
Degree of protection | IP20 |
Connection name | Field level |
---|---|
Connection in acc. with standard | IEC / EN |
Connection method | Screw connection |
Stripping length | 8 mm |
Screw thread | M 3 |
Conductor cross section solid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 |
Torque | 0.5 Nm ... 0.6 Nm |
Connection name | Controller level |
---|---|
Connection method | Pluggable screw connection |
Number of connections | 2 |
Number of positions | 9 |
Input voltage Ui | 30 V (per channel) |
---|---|
Input current Ii | 1 A (per channel) |
Inductance Li | 0 mH |
Capacitance Ci | 0 µF |
ATEX | Sira 16ATEX4260X; Ex II 3G Ex nA ic IIC T4 Gc; Ex nA IIC T4 Gc |
IECEx | IECEx SIR 16.0088X Ex nA ic IIC T4 Gc; Ex nA IIC T4 Gc |
FM approval | Class I, Zone 2, AEx nA ic IIC T4 Gc; AEx nA IIC T4 Gc Nonincendive: Class I, Div. 2, Groups A, B, C, D T4 With connection to Class I, II, and III, Div. 2, Groups A, B, C, D, E, F, G |
Standards/regulations | IEC 60664 |
---|---|
DIN EN 50178 | |
Conformance | ANSI/ISA 60079-0; 60079-11; 60079-15 |
ANSI/IEC 60529 | |
FM 3600; 3611; 3810 | |
ATEX | Sira 16ATEX4260X; Ex II 3G Ex nA ic IIC T4 Gc; Ex nA IIC T4 Gc |
IECEx | IECEx SIR 16.0088X Ex nA ic IIC T4 Gc; Ex nA IIC T4 Gc |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 50 |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
