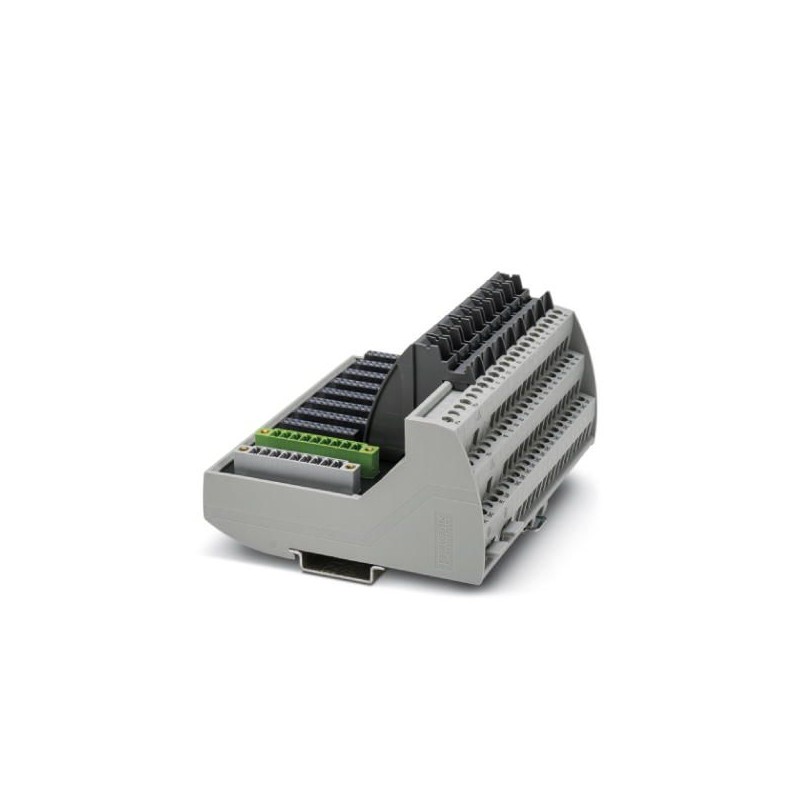

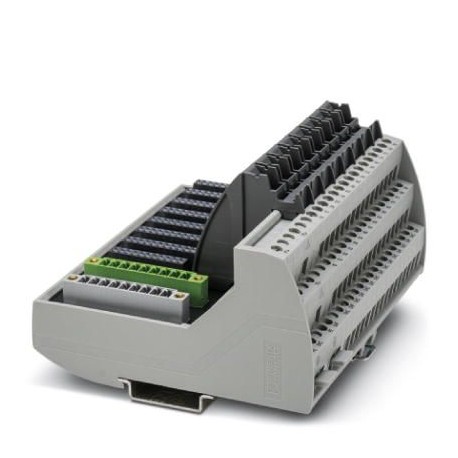

VIP/S/MC/BASE 1-8/L/EX 2906596 PHOENIX CONTACT Base module
VIP/S/MC/BASE 1-8/L/EX
2906596
PHOENIX_CONTACT
Base module
INTERFACE Components (IF)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2906596 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 553 (C-5-2017) |
| GTIN | 4055626184616 |
| Weight per Piece (excluding packing) | 406.700 g |
| Custom tariff number | 85366990 |
| Country of origin | US (United States) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 75 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
General
| Max. operating voltage Umax | 30 V DC (P2 and field terminals) |
|---|---|
| Max. operating voltage | 30 V DC (P2 and field terminals) |
| 230 V AC (P2 and field terminals) | |
| 30 V DC (P1 terminals) | |
| 30 V (X30 and X31 connectors) | |
| Max. perm. current (per branch) | 3 A (field signal) |
| 1 A (control contacts) | |
| Max. permissible current | 15 A () |
| Max. permissible total current | 15 A (per module) |
| Status display | No |
| Mounting position | As desired on 35 mm DIN rail in acc. with EN 60715 |
| Degree of protection | IP20 |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection in acc. with standard | IEC / EN |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Torque | 0.5 Nm ... 0.6 Nm |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | Pluggable screw connection |
| Number of connections | 2 |
| Number of positions | 9 |
Safety data
| Input voltage Ui | 30 V (per channel) |
|---|---|
| Input current Ii | 1 A (per channel) |
| Inductance Li | 0 mH |
| Capacitance Ci | 0 µF |
| ATEX | Sira 16ATEX4260X; Ex II 3G Ex nA ic IIC T4 Gc; Ex nA IIC T4 Gc |
| IECEx | IECEx SIR 16.0088X Ex nA ic IIC T4 Gc; Ex nA IIC T4 Gc |
| FM approval | Class I, Zone 2, AEx nA ic IIC T4 Gc; AEx nA IIC T4 Gc Nonincendive: Class I, Div. 2, Groups A, B, C, D T4 With connection to Class I, II, and III, Div. 2, Groups A, B, C, D, E, F, G |
Standards and Regulations
| Standards/regulations | IEC 60664 |
|---|---|
| DIN EN 50178 | |
| Conformance | ANSI/ISA 60079-0; 60079-11; 60079-15 |
| ANSI/IEC 60529 | |
| FM 3600; 3611; 3810 | |
| ATEX | Sira 16ATEX4260X; Ex II 3G Ex nA ic IIC T4 Gc; Ex nA IIC T4 Gc |
| IECEx | IECEx SIR 16.0088X Ex nA ic IIC T4 Gc; Ex nA IIC T4 Gc |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127250313eCl@ss 6.027242600eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
