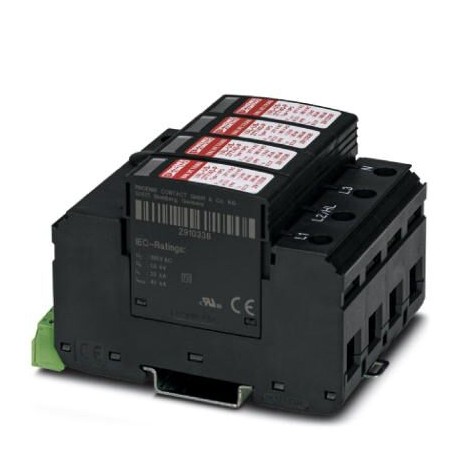

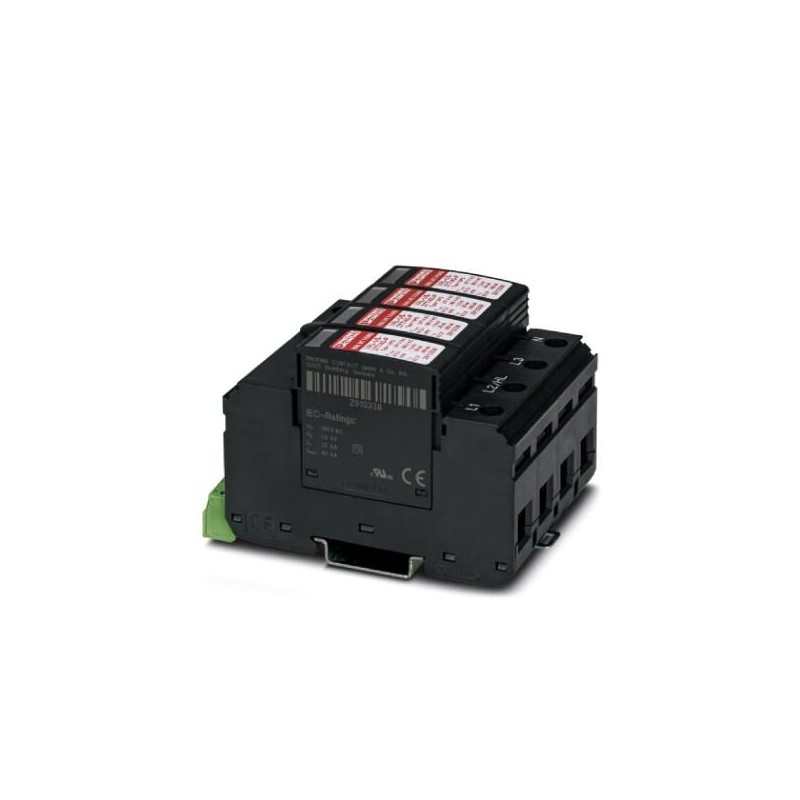

VAL-US-347/30/3+1V-FM 1079099 PHOENIX CONTACT Surge protective device, four channel with remote indicator co..
VAL-US-347/30/3+1V-FM
1079099
PHOENIX_CONTACT
Surge protective device, four channel with remote indicator contact for 347/600 and 400/690 V AC Wye, 4-wire plus ground.
Four-channel surge protection device with remote indication contact for 347/600 and 400/690 V AC star connection, 4 wires plus ground.
Earthing, lightning and surge protection > Surge protection device for power supply systems
Trabtech (TT)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Surge protective device, four channel with remote indicator contact for 347/600 and 400/690 V AC Wye, 4-wire plus ground.
Key Commercial Data
| Orderkey | 1079099 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 97 (C-4-2019) |
| GTIN | 4055626796789 |
| Weight per Piece (excluding packing) | 455.540 g |
| Custom tariff number | 85363030 |
| Country of origin | DE (Germany) |
| Feature Name | Feature Value |
|---|---|
| System configuration DC (EF009926) | No |
| System configuration IT (EF009927) | No |
| System configuration TN (EF009928) | No |
| System configuration TN-C (EF009929) | No |
| System configuration TN-C-S (EF009933) | No |
| System configuration TN-S (EF009930) | Yes |
| System configuration TT (EF009931) | No |
| System configuration other (EF009932) | No |
| Nominal discharge surge current (8/20) (EF004214) | 15 kA |
| Max. discharge surge current (8/20) (EF012274) | 30 kA |
| Max. continuous voltage AC (EF004198) | 580 V |
| Voltage protection level L-N (EF004236) | 2.5 kV |
| Max. overcurrent protection device, parallel connection (fuse) (EF015962) | 125 A |
| Short-circuit breaking capacity (Isccr) (EF012627) | 25 kA |
| Integrated backup fuse (EF008797) | Yes |
| Leakage-current free (EF016002) | No |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Construction size (EF002566) | Other |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 1.5 mm² |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 25 mm² |
| With remote signalling contact (EF000422) | Yes |
| Signalling at the device (EF004241) | Optic |
| Category type 2 (EF004230) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PROTECTION EN .pdf | 27 Mbytes |
|
