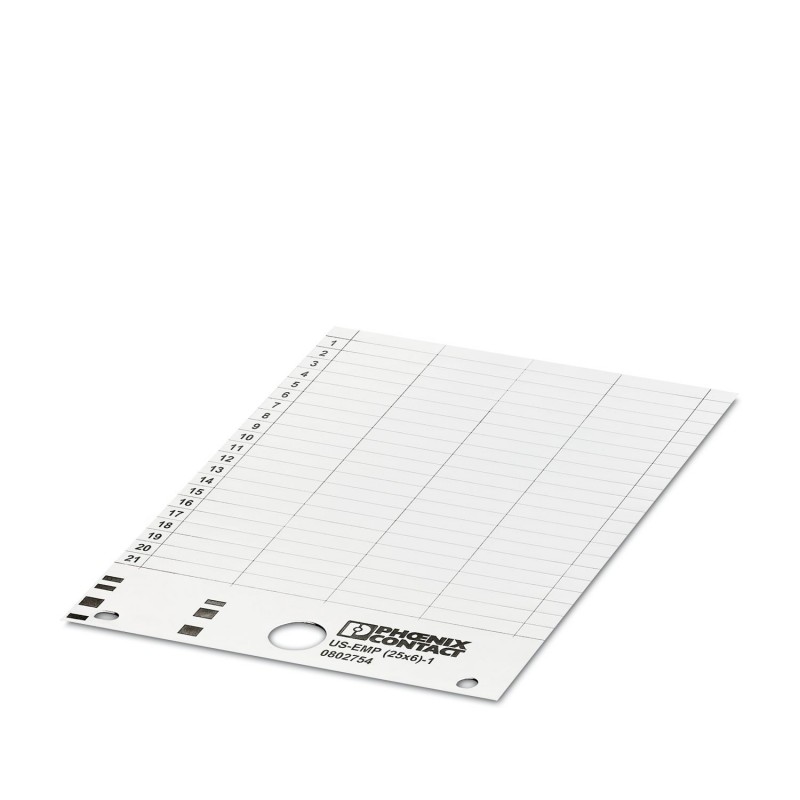

US-EMP (25X6)-1 CUS 0802755 PHOENIX CONTACT Snap-in markers
US-EMP (25X6)-1 CUS
0802755
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
Snap-in markers
Snap-in label, available: per card, white, labelled according to customer specifications, labelled with: BLUEMARKIDCOLOR, BLUEMARKID, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting class: snap onto signage stand, usable surface: 25 mm x 6 mm, Number of individual indexes: 84
Snap-in sign, Card, available: per card, white, labelled according to customer specifications, labelled with: BLUEMARK ID COLOUR, BLUEMARK ID, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting class: snap onto signage stand, Number of individual indexes: 84, text field height: 6 mm, text field width: 25 mm
Auxiliary material > Labelling material
CABINET add-on
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 0802755 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 263 (C-5-2013) |
| GTIN | 4046356858472 |
| Weight per Piece (excluding packing) | 10.000 g |
| Custom tariff number | 49119900 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 80 °C |
|---|---|
| Recommended storage conditions | 10-25 °C / 35-65 % relative humidity. Storage in a cool and dry place is recommended. |
General
| Color | white |
|---|---|
| Components | Silicone-free |
| Flammability rating according to UL 94 | V0 |
| Material | PVC |
| RoHS compliant | Yes |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 84 |
| Number of individual labels per row | 4 |
| Printability | Thermal transfer |
| Device | 5146464 THERMOMARK CARD |
| 5146451 THERMOMARK CARD-US-MAG1 | |
| Ink ribbon | 0801371 THERMOMARK-RIBBON 110-TC |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Test duration | 96 h |
| Wipe resistance test result | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Alternating condensation climate with SO2 test specification | following DIN 50018:2013-05 |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
| Condensation test result | Test passed |
| Wipe resistance of test specification inscriptions | IEC 61010-1:2010-06 |
| Result | Test passed |
| Foil strength | 300 µm |
| Marking mounting type | snapped into marker carrier |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
|---|---|
| Flammability rating according to UL 94 | V0 |
Classifications
eCl@ss 10.0.1 27400629 eCl@ss 4.0 24190219 eCl@ss 4.1 24190219 eCl@ss 5.0 27141137 eCl@ss 5.1 27141100 eCl@ss 6.0 27141100 eCl@ss 7.0 27141137 eCl@ss 8.0 27141137 eCl@ss 9.0 27400629
UNSPSC 6.01 30211811 UNSPSC 7.0901 39121410 UNSPSC 11 39121410 UNSPSC 12.01 39121410 UNSPSC 13.2 39131505
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MARKING SYSTEMS PHOENIX EN.pdf | 41 Mbytes |
|
