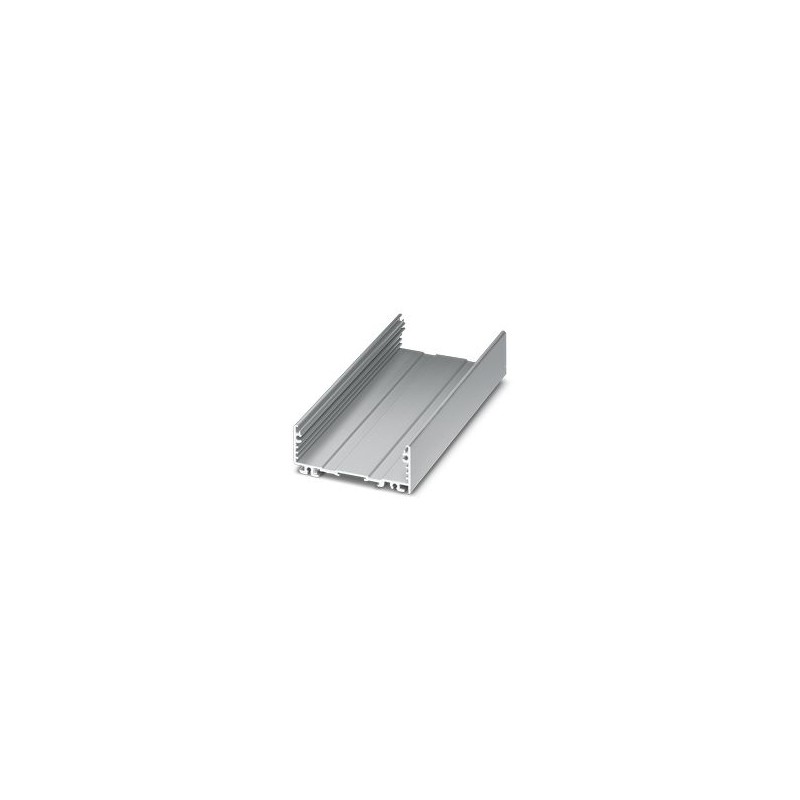

UM-ALU 4-72 PROFILE 170 1497993 PHOENIX CONTACT Extruded profile housings, Bolted mounting, Basic profile, p..
UM-ALU 4-72 PROFILE 170
1497993
PHOENIX_CONTACT
10
Extruded profile housings, Bolted mounting, Basic profile, profile width (inside): 72 mm, profile width (outside): 75 mm, length: 170 mm, depth: 29.4 mm
Extruded Profile Boxes, Bolt-On Mounting, Basic Profile
Press-drawn section housings, Screw mounting, Basic profile, color: aluminum color, profile width (internal): 72 mm, profile width (external): 75 mm, length: 170 mm, depth: 29.4 mm
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Component housing lower part |
| Product family | UM-ALU 4-72 |
| Type | Basic profile |
| Housing type | Press-drawn section housings |
| Ventilation openings present | no |
| Housing series | UM-ALU |
| Dimensional drawing |  |
| Depth | 29.4 mm |
| Depth from top edge of DIN rail | 25.5 mm |
| Length | 170 mm |
| External dimensions | |
| Profile width (external) | 75 mm |
| Internal dimensions | |
| Profile width (internal) | 72 mm |
| PCB design | |
| PCB thickness | 1.44 mm ... 2 mm |
| Color | aluminum color |
| Color (Housing) | aluminum |
| Surface characteristics | anodized |
| Housing material | Aluminum |
| Ambient conditions | |
| Max. IP code to attain | IP40 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Number of PCB holders | 3 |
| Type of PCB mount | Slot |
| Thickness of the PCB | 1.44 mm ... 2 mm |
| Mounting type | Screw mounting |
| Mounting position | parallel to the DIN rail |
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Aluminium |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Other |
| Width (EF000008) | 170 mm |
| Height (EF000040) | 72 mm |
| Depth (EF000049) | 29.4 mm |
