UCS-KIT-125-87-RPI4B-7035 1311024 PHOENIX CONTACT Complete housing for Raspberry Pi printed circuit boards. ..
UCS-KIT-125-87-RPI4B-7035
1311024
PHOENIX_CONTACT

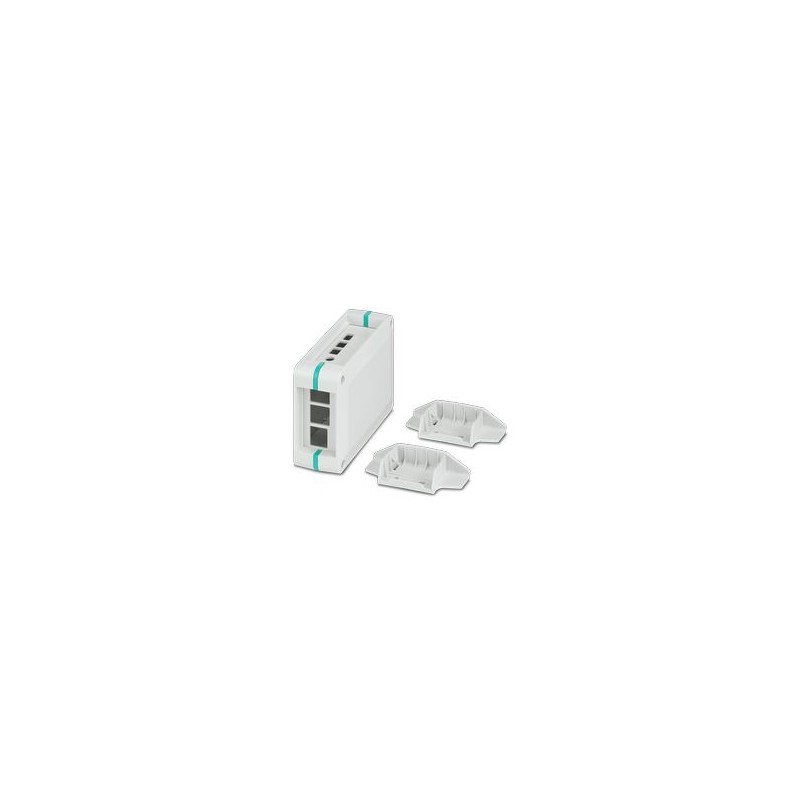

Complete housing for Raspberry Pi printed circuit boards. It includes the halves of the housing, sidewalls with holes for all relevant connections, adhesive supports for fixing the Raspberry Pi model B4 computer, screws for the housing and fixing of the printed circuit board; light grey housing colour with turquoise blue angular inserts
Cabinet enclosures > Electronic enclosure
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | You can open the case a maximum of 10 times. |
| General | Attaching the adhesive backings: Make sure the surface of the housing is clean, dry and free of grease. Temperature range +18 °C ... +30 °C / Pressure force 60 N / Pressure duration 3 s |
| Product Type | Shell Set |
| Product Family | UCS 125-87-F |
| Execution | Flat design |
| Type of housing | Universal Housings |
| Available ventilation hole | No |
| Housing Series | UCS |
| Dimension Scheme |  |
| Width | 125 mm |
| Height | 87 mm |
| Depth | 47 mm |
| Dimensions | 100 mm x 62 mm (Maximum Printed Circuit Board Dimensions) |
| Printed circuit board design | |
| Printed Circuit Board Thickness | 0.8 mm ... 3 mm |
| Colour | Luminous Grey (7035) |
| Flammability class according to UL 94 | V0 |
| CTI according to IEC 60112 | 2 |
| Insulating material | PC |
| Surface Characteristics | Not Treated |
| Shell material | PC |
| Power dissipated single housing with 20 °C | |
| Ambient Temperature | 20 °C |
| Reduction Fact | 1 |
| Position for mounting | vertical |
| Dissipated Power | 9.7 W |
| Power dissipated single housing with 30 °C | |
| Ambient Temperature | 30 °C |
| Reduction Fact | 0,85 |
| Position for mounting | vertical |
| Dissipated Power | 8.3 W |
| Power dissipated single housing with 40 °C | |
| Ambient Temperature | 40 °C |
| Reduction Fact | 0,68 |
| Position for mounting | vertical |
| Dissipated Power | 6.5 W |
| Power dissipated single housing with 50 °C | |
| Ambient Temperature | 50 °C |
| Reduction Fact | 0,55 |
| Position for mounting | vertical |
| Dissipated Power | 5.4 W |
| Power dissipated individual housing with 60 °C | |
| Ambient Temperature | 60 °C |
| Reduction Fact | 0,4 |
| Position for mounting | vertical |
| Dissipated Power | 3.9 W |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Acceleration | 2g (58.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test Directions | X, Y, and Z axes |
| Essay filam. incandescent | |
| Test Specification | DIN EN 60695-2-11 (VDE 0471-2-11):2014-11 |
| Temperature | 850 °C |
| Performance Time | 30 sec |
| Heat Resistance/Spherical Pressure Check | |
| Test Specification | DIN EN 60695-10-2 (VDE 0471-10-2):2016-01 |
| Temperature | 125 °C |
| Duration of the trial | 1 h |
| Strength | 20 N |
| Mechanical Strength/Descending Drum | |
| Test Specification | DIN EN 60068-2-31 (VDE 0468-2-31):2009-04 |
| Drop Height | 50 cm |
| frequency | 50 |
| Crash | |
| Test Specification | DIN EN 60068-2-27 (VDE 0468-2-27):2010-02 |
| Shock Type | Semi-sinusoid |
| Acceleration | 35% |
| Duration of the crash | 11 ms |
| Number of collisions per steering | 3 |
| Test Directions | X, Y, and Z axes (pos. and neg.) |
| Testing for substances that are harmful to varnish wetting | |
| Test Specification | VW PV 3.10.7:2005-02 |
| Result | Approved Test |
| Protection rating (IP code) | |
| Test Specification | DIN EN 60529 (VDE 0470-1):2014-09 |
| Result: Degree of protection IP Code | IP20 |
| Environmental conditions | |
| Maximum achievable IP code | IP20 |
| Ambient Temperature (Service) | -40 °C ... 105 °C (depending on dissipation) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 55 °C |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
| Relative humidity of the air (storage/transport) | 80 % |
| Number of PCB Housings | 1 |
| Printed Circuit Board Attachment Type | Screw connection |
| Total PCB Surface | 6000 mm² |
| Printed Circuit Board Thickness | 0.8 mm ... 3 mm |
| Supported Form Factors | Raspberry Pi |
| A Note on Printed Circuit Board Housings | This article has been prepared for a printed circuit board. Other printed circuit boards can be attached with the help of adhesive holders (accessory). |
| Position for mounting | discretionary |
| Torque / Speed | Screw connection of housing halves: 1.2 Nm-1.4 Nm / 500 rpm-1000 rpm |
| Printed circuit board fixation: 0.4 Nm-0.5 Nm / 500 rpm-1000 rpm |
| Type of packaging | Packing in carton box |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Other |
| Colour (EF000007) | Grey |
