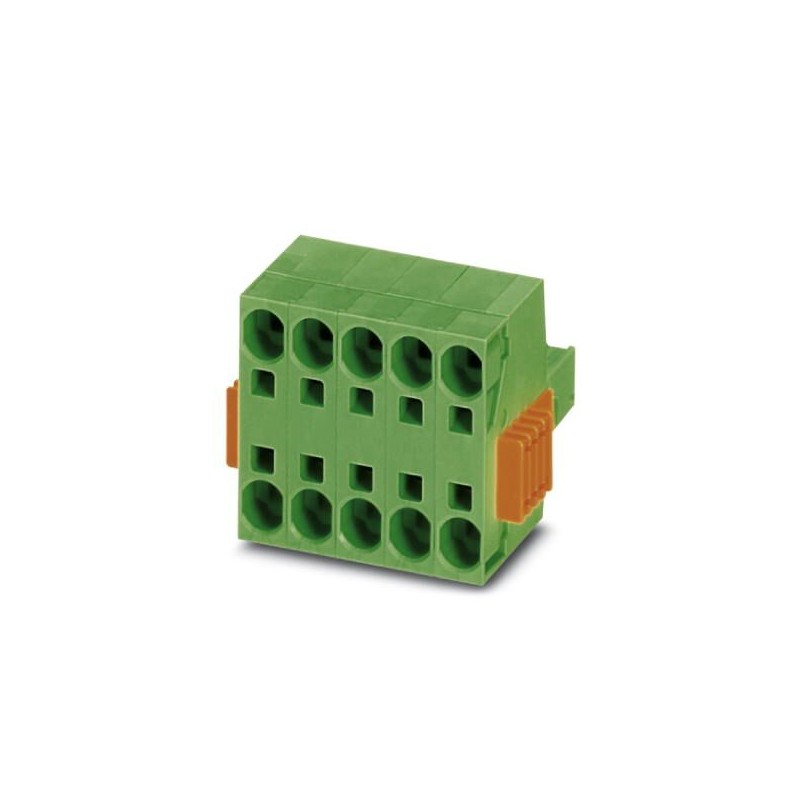

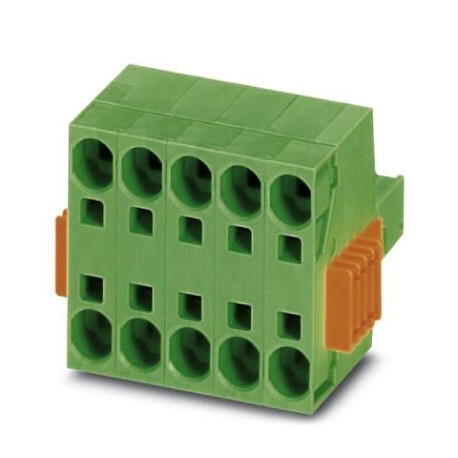

TSPC 5/ 3-STCL-7,62BKCPBDWH-93 1018040 PHOENIX CONTACT Printed-circuit board connector TSPC 5/ 3-STCL-7,62BK..
TSPC 5/ 3-STCL-7,62BKCPBDWH-93
1018040
PHOENIX_CONTACT
10
Printed-circuit board connector - TSPC 5/ 3-STCL-7,62BKCPBDWH-93 - 1018040
PCB connector, nominal current: 41 A, rated voltage (III/2): 1000 V, nominal cross section: 6 mm², number of positions: 3, pitch: 7.62 mm, connection method: Push-in spring connection, color: black, contact surface: Tin
Connectors > Cable connector
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Item properties
| Brief article description | Printed-circuit board connector |
|---|---|
| Plug-in system | POWER COMBICON 5 |
| Type of contact | Female connector |
| Range of articles | TSPC 5/..-STCL |
| Pitch | 7.62 mm |
| Number of positions | 3 |
| Connection method | Push-in spring connection |
| Number of levels | 1 |
| Number of connections | 6 |
| Number of potentials | 3 |
Electrical parameters
| Nominal current | 41 A |
|---|---|
| Nom. voltage | 1000 V |
| Rated voltage | 1000 V |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (II/2) | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (II/2) | 6 kV |
Connection capacity
| Connection method | Push-in spring connection |
|---|---|
| pluggable | Yes |
| Conductor cross section solid | 0.2 mm² ... 10 mm² |
| Conductor cross section flexible | 0.2 mm² ... 6 mm² |
| Conductor cross section AWG / kcmil | 24 ... 8 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 6 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 4 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.25 mm² ... 1.5 mm² |
| Stripping length | 15 mm |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Contact material | Cu alloy |
| Surface characteristics | hot-dip tin-plated |
| Metal surface terminal point (top layer) | Tin (4 - 8 µm Sn) |
| Metal surface contact area (top layer) | Tin (4 - 8 µm Sn) |
Material data - housing
| Housing color | black (9005) |
|---|---|
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Dimensions for the product
| Dimensional drawing |  |
|---|---|
| Length [ l ] | 41.45 mm |
| Width [ w ] | 30.86 mm |
| Height [ h ] | 35.05 mm |
| Pitch | 7.62 mm |
| Dimension a | 15.24 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 10 |
| Denomination packing units | Pcs. |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 4.0 | 27260700 |
|---|---|
| eCl@ss 4.1 | 27260700 |
| eCl@ss 5.0 | 27260700 |
| eCl@ss 5.1 | 27260700 |
| eCl@ss 6.0 | 27260700 |
| eCl@ss 7.0 | 27440309 |
| eCl@ss 8.0 | 27440309 |
| eCl@ss 9.0 | 27440309 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
