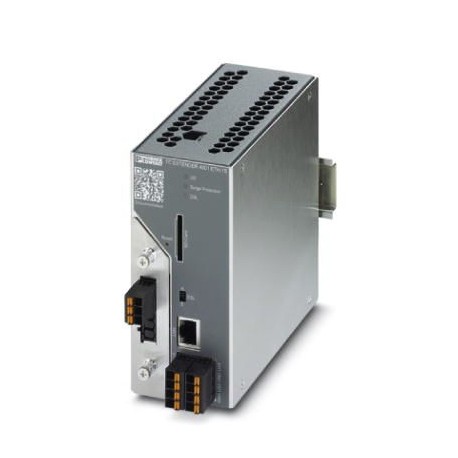

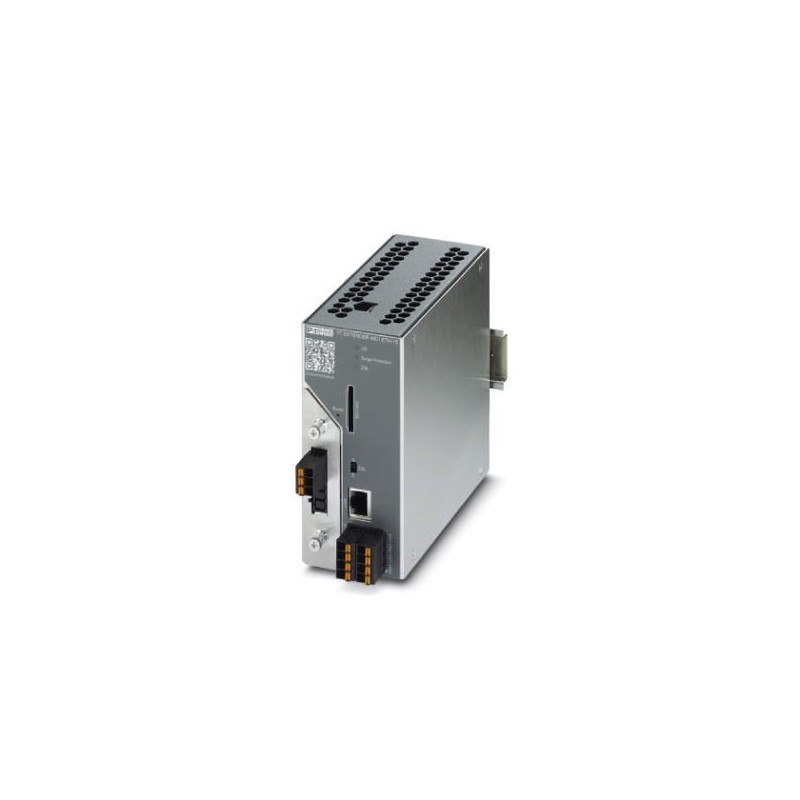

TC EXTENDER 4001 ETH-1S 2702253 PHOENIX CONTACT Modem
TC EXTENDER 4001 ETH-1S
2702253
PHOENIX_CONTACT
Modem
Managed Ethernet extender, point-to-point connections, data rate rates up to 15.3 MBit/s, distances up to 20 km on company-owned copper cables, interchangeable surge protection, 1 SHDSL port, 1 LAN port, Ethernet diagnostics
Safety
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2702253 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 361 (C-6-2017) |
| GTIN | 4055626055558 |
| Weight per Piece (excluding packing) | 258.700 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Altitude | 2500 m (For restrictions see manufacturer's declaration) |
| Degree of protection | IP20 |
General
| Electrical isolation | VCC // Ethernet // DSL (A/B) // FE |
|---|---|
| Test voltage data interface/power supply | 1.5 kV AC (50 Hz, 1 min.) |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Net weight | 258.7 g |
| Housing material | Aluminum / steel sheet DC01 |
| MTTF | 577 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day)) |
| 300 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day)) | |
| 128 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day)) | |
| Conformance | CE-compliant |
| ATEX | II 3 G Ex nA IIC T4 Gc X (Please follow the special installation instructions in the documentation!) |
| UL, USA/Canada | 508 Listed |
Power supply
| Nominal supply voltage | 24 V DC ±5 % |
|---|---|
| Supply voltage range | 10 V DC ... 60 V DC |
| Typical current consumption | 80 mA (60 V DC) |
| 200 mA (24 V DC) | |
| 380 mA (10 V DC) | |
| Connection method | Push-in spring connection |
Serial interface
| Interface 1 | Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u |
|---|---|
| Interface | Ethernet |
| No. of ports | 1 |
| Connection method | RJ45 socket |
| 1 port 10/100Base-T(X), auto negotiation | |
| Transmission length | < 100 m (shielded twisted pair) |
| Protocols supported | IPv4, IPv6, TCP/IP, HTTP, HTTPS |
| Auxiliary protocols | ARP, DHCP (Client), PING, SNMP |
| Serial transmission speed | 10/100 Mbps, auto negotiation |
| Interface 2 | SHDSL interface according to ITU-T G.991.2.bis |
| No. of ports | 1 (2-wire operation) |
| Connection method | Push-in spring connection |
| Transmission length | < 20 km (Depending on data rate and cable cross section) |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 16 |
| Serial transmission speed | 2-wire operation: 32 kbps ... 15.3 Mbps |
Function
| Web-based management | yes |
|---|---|
| Management | Web-based management: Diagnostics, log book, customized configuration |
| Status and diagnostic indicators | LEDs for warning, status, and device information |
Digital outputs
| Output name | Digital output |
|---|---|
| Number of outputs | 1 |
| Voltage output signal | depending on the operating voltage |
| Current output signal | ≤ 500 mA (Short-circuit-proof) |
| Connection method | Push-in spring connection |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|---|
| Type of test | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 |
| Test result | 5g, 10...150 Hz, 2.5 h, in XYZ direction |
| Type of test | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
| Test result | 15g |
| Standards/regulations | EN 61000-4-2 |
| Contact discharge | ± 6 kV |
| Indirect discharge | ± 6 kV |
| Standards/regulations | EN 61000-4-3 |
| Frequency range | 80 MHz ... 3 GHz |
| Standards/regulations | EN 61000-4-4 |
| Comments | Criterion B |
| Standards/regulations | EN 61000-4-5 |
| Signal | ± 1 kV (asymmetrical, shielded Ethernet cable) |
| ± 4 kV (asymmetrical: line to ground, unshielded SHDSL cable) | |
| ± 2 kV (symmetrical: line to line, unshielded SHDSL cable) | |
| Standards/regulations | EN 55011 |
| EN 61000-4-6 | |
| Frequency range | 0.15 MHz ... 80 MHz |
| Standards/regulations | EN 50121-4 |
| Conformance | CE-compliant |
| ATEX | II 3 G Ex nA IIC T4 Gc X |
| UL, USA/Canada | 508 Listed |
| Noxious gas test | ISA-S71.04-1985 G3 Harsh Group A |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
