ST-REL3-SG 24/21 2822011 PHOENIX CONTACT Relay connectors
ST-REL3-SG 24/21
2822011
PHOENIX_CONTACT
Relay connectors

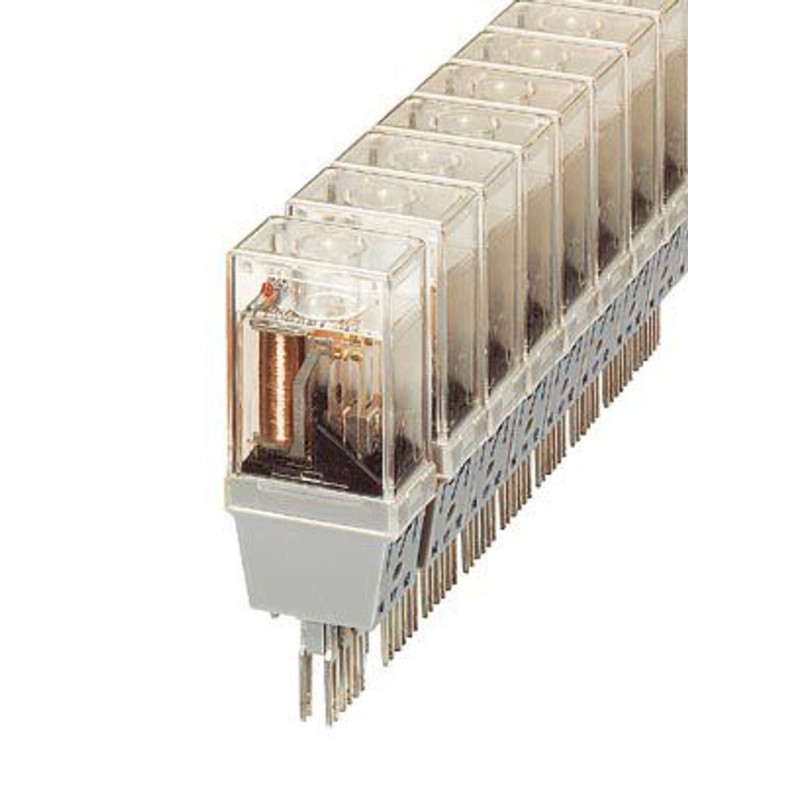

Plug-in relay bracket, equipped with Siemens-KAMMRELAIS®, contacts (Ag): Medium powers, 1 switched contact, input voltage 24 V DC, with light display, pluggable into base terminal blocks
Relay connector, equipped Siemens KAMMRELAIS®, contacts (Ag): medium loads, 1 changeover contact, input voltage 24 V DC, with LED display, pluggable into basic terminal blocks
Industrial Relays
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Relay Module |
| Operating mode | 100% operating factor |
| Mechanical service life | approx. 107cycles (approx. 106with AC relay) |
| Data management status | |
| Date of last data management | 20.04.2023 |
| Article revision | 05 |
| Maximum power dissipation for nominal condition | 0.77 W |
| Test voltage (Winding/contact) | 1 kV AC (50 Hz, 1 min., winding/contact) |
| Coil side | |
| Nominal input voltage UN | 24 V DC |
| Input voltage range | 19.2 V DC ... 26.4 V DC (20 °C) |
| Drive and function | monostable |
| Typical input current at UN | 32 mA |
| Typical response time | 8 ms (with DC) |
| Typical release time | 15 ms (with DC) |
| Protective circuit | Damping diode, polarity protection; Damping diode, polarity protection diode |
| Operating voltage display | yes |
| Switching | |
| Contact switching type | Single contact, 1 changeover contact |
| Type of switch contact | Single contact |
| Contact material | Ag, gold-flashed |
| Maximum switching voltage | 250 V AC/DC |
| Limiting continuous current | 5 A |
| Maximum inrush current | 5 A |
| Interrupting rating (ohmic load) max. | 120 W (at 24 V DC) |
| 60 W (at 48 V DC) | |
| 50 W (at 60 V DC) | |
| 50 W (at 110 V DC) | |
| 70 W (at 220 V DC) | |
| 500 VA (for 250 V AC) | |
| Width | 20.8 mm |
| Height | 33 mm |
| Depth | 66.5 mm |
| Color | transparent |
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Standards/regulations | DIN VDE 0110b, Gr. C for 250 V DC |
| DIN VDE 0160 (in relevant parts) |
| Mounting type | Plug-in mounting |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN .pdf | 28 Mbytes |
|
