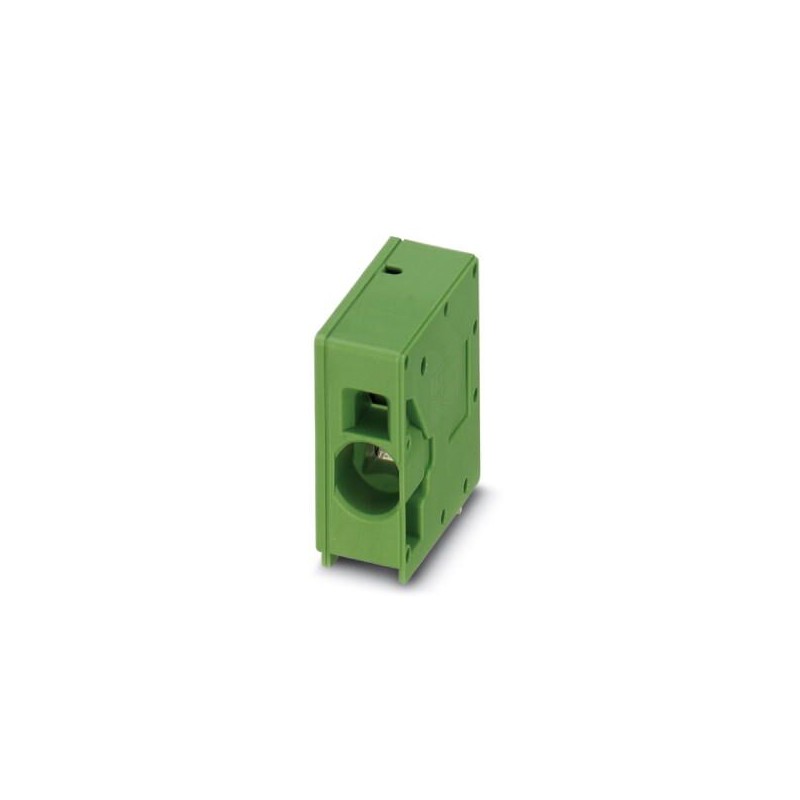

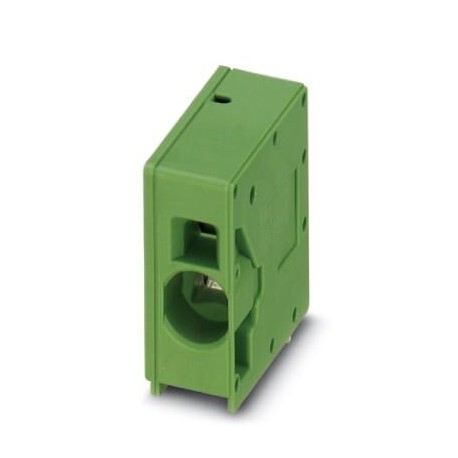

SPT 16/ 1-H-10,0 RD 1822309 PHOENIX CONTACT PCB terminal block, nominal current: 76 A, nom. voltage: 1000 V,..
SPT 16/ 1-H-10,0 RD
1822309
PHOENIX_CONTACT
250
PCB terminal block, nominal current: 76 A, nom. voltage: 1000 V, pitch: 10 mm, number of positions: 1, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: red
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲PCB terminal block, nominal current: 76 A, nom. voltage: 1000 V, pitch: 10 mm, number of positions: 1, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: red
Key Commercial Data
| Orderkey | 1822309 |
|---|---|
| Packing unit | 1 |
| GTIN | 4046356909501 |
| Custom tariff number | 85369010 |
Dimensions
| Length [ l ] | 29 mm |
|---|---|
| Pitch | 10 mm |
| Width [ w ] | 11.8 mm |
| Height | 30 mm |
| Height [ h ] | 34 mm |
| Solder pin [P] | 4 mm |
| Pin spacing | 15 mm |
| Hole diameter | 1.7 mm |
General
| Range of articles | SPT 16/..-H |
|---|---|
| Rated surge voltage (III/3) | 8 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (II/2) | 6 kV |
| Rated voltage (III/3) | 1000 V |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (II/2) | 1000 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 76 A |
| Nominal cross section | 16 mm² |
| Solder pin surface | |
| Stripping length | 18 mm |
| Number of positions | 1 |
Connection data
| Conductor cross section AWG min. | 20 |
|---|---|
| Conductor cross section AWG max. | 4 |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 0.75 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 4 mm² |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 5.1 | 27261100 |
|---|---|
| eCl@ss 6.0 | 27261100 |
| eCl@ss 7.0 | 27440401 |
| eCl@ss 8.0 | 27440401 |
| eCl@ss 9.0 | 27440401 |
ETIM
| ETIM 4.0 | EC002643 |
|---|---|
| ETIM 5.0 | EC002643 |
| ETIM 6.0 | EC002643 |
| ETIM 7.0 | EC002643 |
UNSPSC
| UNSPSC 13.2 | 39121432 |
|---|
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
