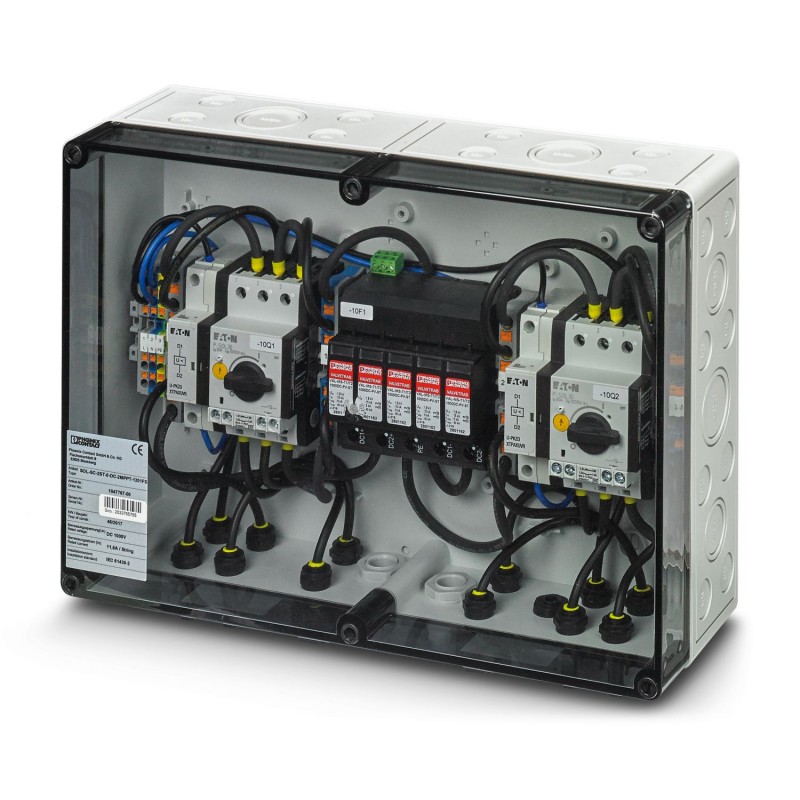

SOL-SC-2ST-0-DC-2MPPT-1201FS 1047767 PHOENIX CONTACT Switching device combination
SOL-SC-2ST-0-DC-2MPPT-1201FS
1047767
PHOENIX_CONTACT
Switching device combination
Connection box of generators for photovoltaic installations up to 1000 V DC for the connection of 2x 2 strings. With surge protection, DC fire disconnector and SUNCLIX DC connector for the input and output side.
String combiner box for photovoltaic systems up to 1000 V DC for connecting 2x 2 strings. With surge protection (type 1/2), DC fire department switch disconnector, and SUNCLIX DC connectors for the input and output side (SUNCLIX mating connectors supplied as standard).
Industry Solutions (IS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product type | String combiner box (SCB) |
| Scope of delivery | SUNCLIX DC connector for connecting the SCB |
| Design | DC fire department switch |
| Insulation characteristics | |
| Protection class | II |
| General | |
| MPP voltage Un | max. 1000 V DC |
| Non-load voltage | max. 1000 V DC |
| Current per string Imax | max. 12.5 A |
| Total current MPP tracker | max. 25 A |
| Fire department switch | |
| Rated operating current DC-21A | 25 A |
| Rated operating current DC-PV1 | 25 A |
| Surge protection | |
| EN type | T1 |
| IEC test classification | T1 |
| Protection level Up | ≤ 3.5 kV |
| Total discharge current Itotal(10/350) µs | 5 kA |
| Total discharge current Itotal(8/20) µs | 40 kA |
| Short-circuit current rating ISCPV | 25 A |
| DC | |
| Number of inputs: Strings | 2 (per MPP tracker) |
| Number of supported MPP trackers | 2 |
| DC | |
| Number of outputs: MPP tracker | 2 |
| Number of outputs: ± | 1 (per MPP tracker) |
| DC input | |
| Type of cable entry | SUNCLIX |
| Cable cross-section range: | 2.5 mm² ... 6 mm² |
| Protective bonding and protective grounding conductor | |
| Type of cable entry | Cable gland |
| Connection method | Screw connection |
| Cable cross-section range: | 16 mm² |
| External cable diameter | 6 mm ... 12 mm |
| Fire department switch (emergency switching off) | |
| Type of cable entry | Cable gland |
| Cable cross-section range: | 3x 0.14 mm² ... 2.5 mm² |
| External cable diameter | 6 mm ... 12 mm |
| DC output | |
| Type of cable entry | SUNCLIX |
| Cable cross-section range: | 2.5 mm² ... 6 mm² |
| Housing | |
| Width | 361 mm |
| Height | 254 mm |
| Depth | 111 mm |
| Material Housing | Polycarbonate |
| Material Cover/door | Polycarbonate (transparent) |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -20 °C ... 40 °C |
| Standard designation | Low-voltage switchgear and controlgear assemblies - Part 2: Power switchgear and controlgear assemblies |
| Standards/specifications | EN 61439-2 |
