View larger

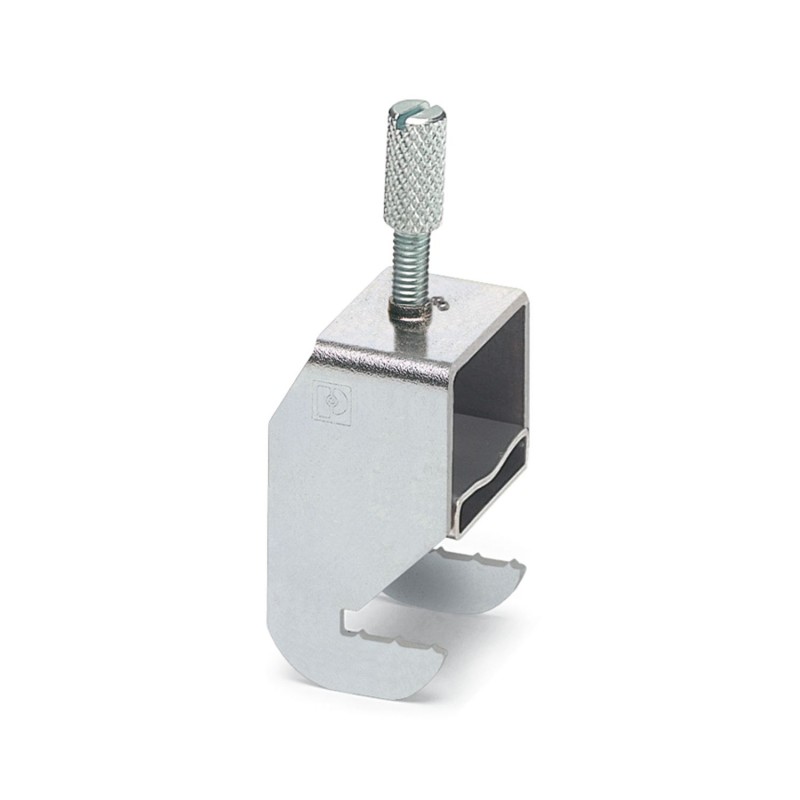

SK 20-D VPE 100/1 1083004 PHOENIX CONTACT Terminal for Connection of screen, support screen direct on mounti..
SK 20-D VPE 100/1
1083004
PHOENIX_CONTACT
100
Terminal for Connection of screen, support screen direct on mounting plates with conductive, sheet thickness 1 ... 2 mm
Terminal for screen connection, for direct screen support on conductive mounting plates, sheet thickness 1 ... 2 mm
Shield connection terminal, for direct shield support on conductive mounting plates, sheet thickness 1 ... 2 mm
Terminal blocks > Shield connection clamp
CABINET add-on
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product Type | Shield Clamp |
| Grid dimension | 24 mm |
| Number of ports | 1 |
| Number of rows | 1 |
| Data maintenance status | |
| Article revision | 00 |
| Maximum power dissipation at nominal condition | 0 W |
| Protective conductor foot | Yes |
| Screw thread | M4 |
| Tightening torque | ... 0.8 Nm |
| Dimensional drawing |  |
| Width | 24 mm |
| Height | 19.5 mm |
| Depth | 73.5 mm |
| Grid dimension | 24 mm |
| External dimensions | |
| Outer Diameter | 5 mm ... 20 mm |
| Color | silver-coloured |
| Material | Steel |
| Pipe outer diameter | 5 mm ... 20 mm |
| Mechanical data | |
| Open sidewall | Yes |
| Feature Name | Feature Value |
|---|---|
| Permitted cable diameter (EF008217) | 5 mm |
| Type of electric connection (EF003961) | Screw connection |
| Width (EF000008) | 24 mm |
| Height (EF000040) | 19.5 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MARKING SYSTEMS PHOENIX EN.pdf | 41 Mbytes |
|
