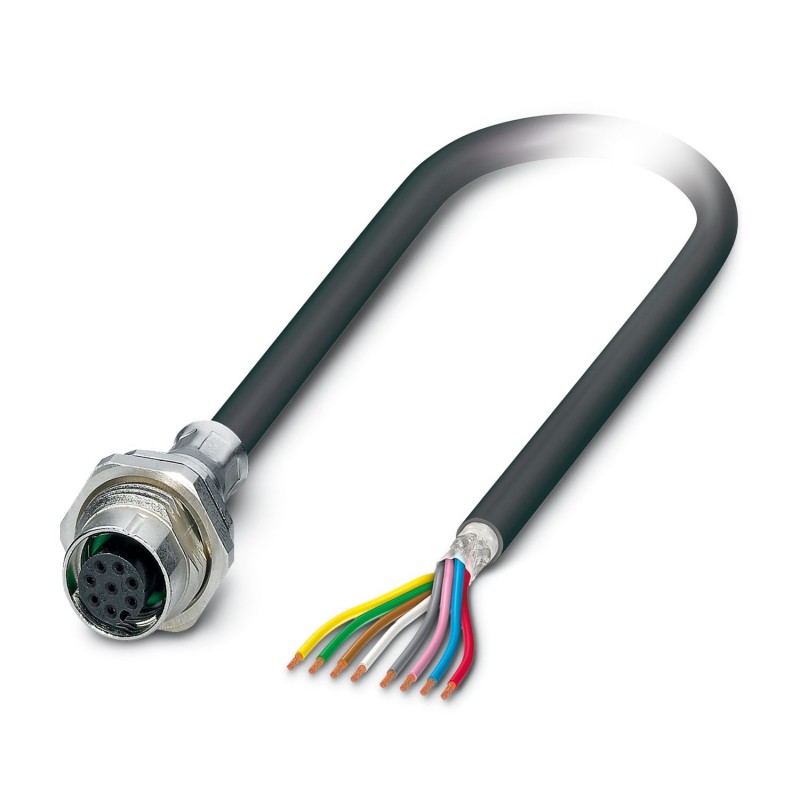

SACCBP-FS-8CON-M16/3,0-PUR SCO 1408786 PHOENIX CONTACT Flush-type connector
SACCBP-FS-8CON-M16/3,0-PUR SCO
1408786
PHOENIX_CONTACT
20
Flush-type connector
Built-in mounting female, shielded, 8-pole, M12, A-coding, rear wall mounting/screwed with M16 thread, with 3 m cable, 8 x 0.25 mm²
Device connector on the back side, 8-pole, PUR, grey-black RAL 7021, female connector, straight, M12-SPEEDCONNEC, encoding: A, on free end, Rear panel mounting, M16 x 1.5, Individual cords, cable length: 3 m, 0.25 mm2, PUR free of black halogen, Replacement product according to RoHS II without exception 6c (Pb < 0.1%) Article no.1238792
Connectors > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1408786 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 20 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356837620 |
| Weight per Piece (excluding packing) | 176.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140815eCl@ss 4.127140815eCl@ss 5.027143423eCl@ss 5.127143423eCl@ss 6.027279200eCl@ss 7.027279218eCl@ss 8.027279218eCl@ss 9.027440103
| Feature Name | Feature Value |
|---|---|
| Cable length (EF000536) | 3 mm |
| Type of plug-in contact, outer side (EF005528) | None |
| Mounting method (EF000003) | Back wall mounting |
| Housing material (EF001596) | Other |
| Material core insulation (EF000061) | Other |
| Material of contact surface (EF004020) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Ambient temperature (EF002386) | 85 °C |
| Operating temperature (EF002393) | -25 °C |
| Rated voltage (EF000228) | 30 V |
| With shield connection (EF002535) | Yes |
| Screw-in thread (EF012303) | M12 |
| Core cross section (EF000018) | 0.25 mm² |
| Min. number of insertion cycles (EF012212) | 100 |
| Degree of protection (IP), mounted (EF007466) | Other |
