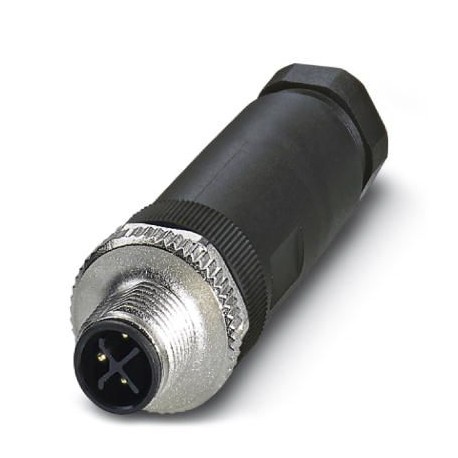

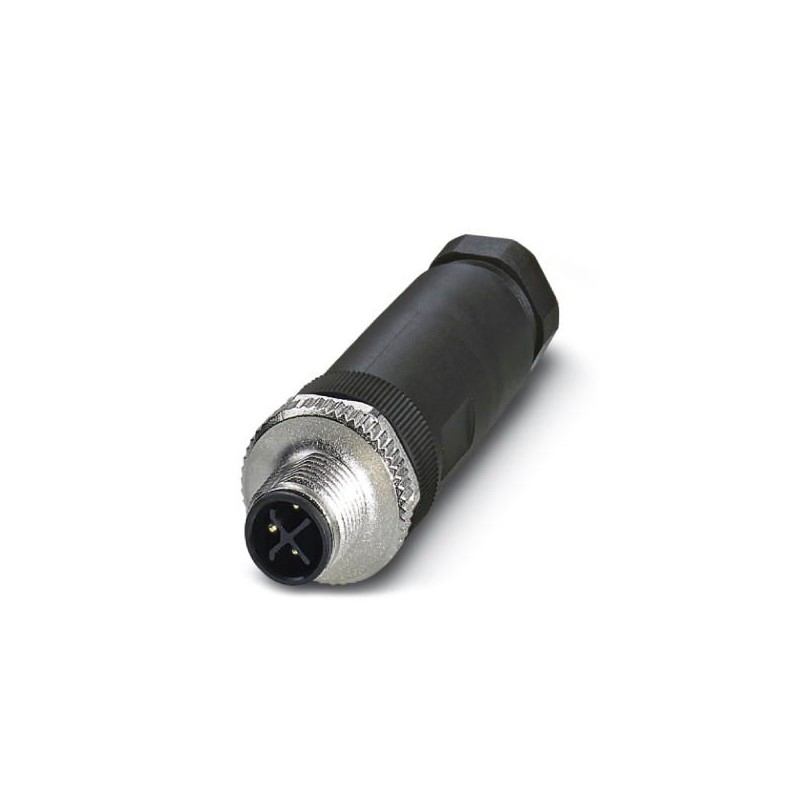

SACC-M12MSS-2PECON-PG 9-M
1419639
PHOENIX_CONTACT
1
Power connectors
Connectors > Circular connector for field assembly (industrial connector)
QUICKON Installation System (QPD)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1419639 |
---|---|
Packing unit | 1 pc |
Catalog page | Page 286 (C-2-2017) |
GTIN | 4055626181776 |
Weight per Piece (excluding packing) | 22.590 g |
Custom tariff number | 85366990 |
Country of origin | DE (Germany) |
Wrench size, union nut | 16 mm |
---|---|
Diameter housing | 20 mm |
Length | 60 mm |
External cable diameter | 6 mm ... 8 mm |
Stripping length of the sheath | 20 mm |
Stripping length of the individual wire | 5 mm |
Ambient temperature (operation) | -40 °C ... 85 °C (Plug / socket) |
---|---|
Degree of protection | IP67 |
Note | Strip 21 mm off the cable sheath, strip 6 mm off the conductor insulation, crimp the ferrule, then shorten this to 5 mm. Conductor length with shortened ferrule: 20 mm. Connect conductors and tighten the mounting screws with 0.2 Nm. |
---|---|
Rated current at 40°C | 16 A (when using 1.5 mm² conductors) |
16 A (at 40 °C) | |
Rated voltage | 230 V AC |
Number of positions | 3 |
Color handle area | black |
Insulation resistance | > 10 GΩ |
Coding | S power |
Standards/regulations | M12 connector IEC 61076-2-111 |
Status display | No |
Overvoltage category | III |
Degree of pollution | 3 |
Connection method | Screw connection |
Conductor cross section | 0.75 mm² ... 1.5 mm² (without ferrule) |
0.75 mm² ... 1.5 mm² (with ferrule) | |
0.75 mm² ... 1.5 mm² (solid) | |
Conductor cross section AWG | 18 ... 16 (without ferrule) |
18 ... 16 (with ferrule) | |
Insertion/withdrawal cycles | > 100 |
Torque | 0.4 Nm (M12 knurl) |
0.8 Nm ... 1 Nm (Pressure screw with sleeve housing) | |
0.4 Nm (Screw plug insert with sleeve housing as far it will go) | |
0.2 Nm (Screw terminal blocks) | |
Assembly instructions | The wires can be connected both with ferrules and without ferrules |
Flammability rating according to UL 94 | V0 |
---|---|
Contact material | CuZn |
Contact surface material | Au |
Contact carrier material | PA |
Material of grip body | PA |
Material, knurls | Zinc die-cast, nickel-plated |
Sealing material | NBR (Cable clamping) |
Standard designation | M12 connector |
---|---|
Standards/regulations | IEC 61076-2-111 |
Flammability rating according to UL 94 | V0 |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 25; |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
