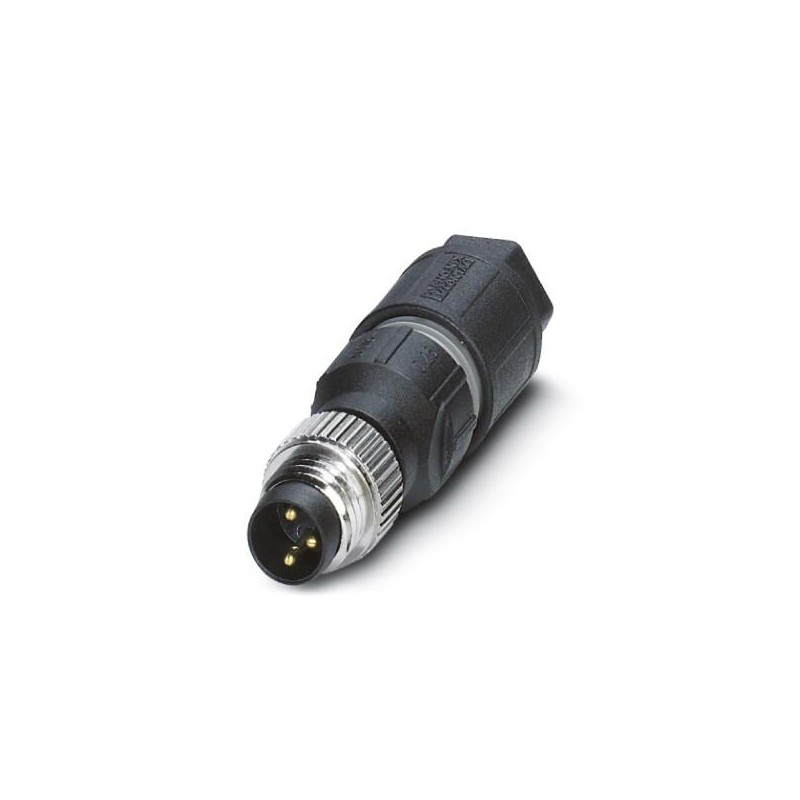

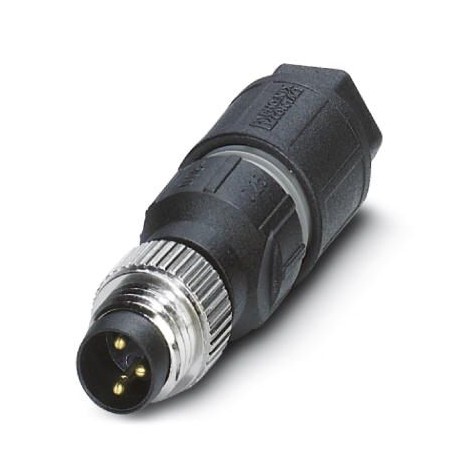

SACC-M 8MS-3QO-0,5-M RM MR 1144510 PHOENIX CONTACT Sensor/actuator connector, Universal, 3-position, Plug st..
SACC-M 8MS-3QO-0,5-M RM MR
1144510
PHOENIX_CONTACT
500
Product on demand only, returns will not be accepted.
Sensor/actuator connector, Universal, 3-position, Plug straight M8, A-coded, knurl material: Nickel-plated brass, Customer version
Connector, Universal, 3-pole, M8 straight male connector, A-coded, knurling material: Brass, nickel-plated, Customer variant
Connectors > Circular connector for field assembly (industrial connector)
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 80 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 |
General
| Note | NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
|---|---|
| Rated current at 40°C | 4 A |
| Rated voltage | 48 V AC |
| 60 V DC | |
| Number of positions | 3 |
| Color handle area | black |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Standards/regulations | M8 connector IEC 61076-2-104 |
| Signal type/category | Universal |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Insertion/withdrawal cycles | ≥ 100 |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | PA 6 |
| Material, knurls | Nickel-plated brass |
| Sealing material | NBR |
Standards and Regulations
| Standards/specifications | M8 connector IEC 61076-2-104 |
|---|---|
| Flammability rating according to UL 94 | HB |
