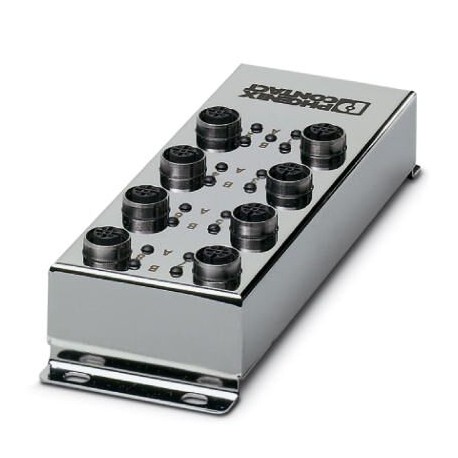

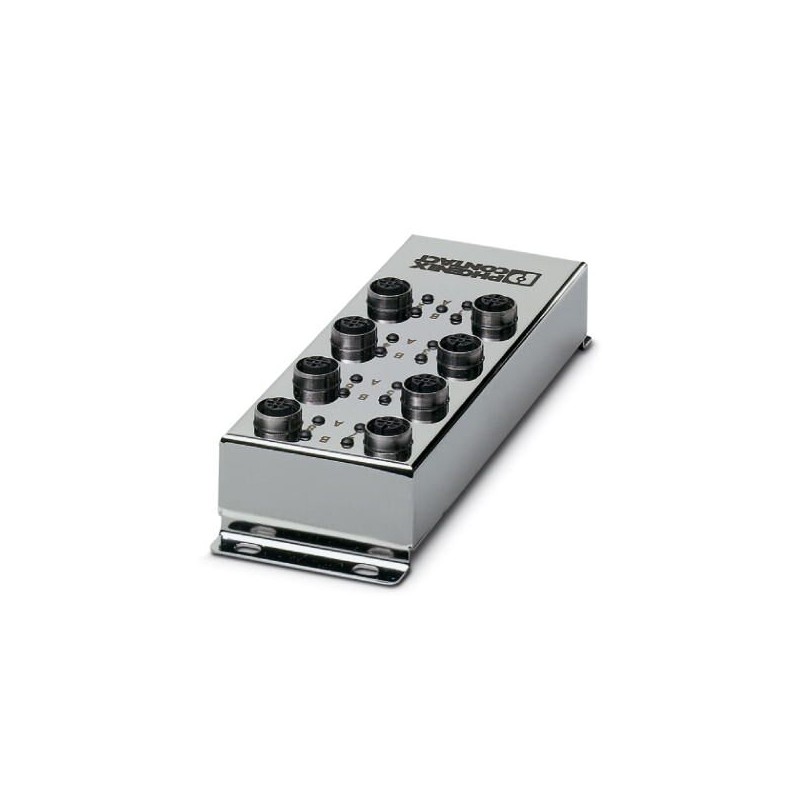

SACB-SH-8 PARA VA MOUNT P-PROT 1407295 PHOENIX CONTACT Sensor/actuator box, connection method: M12 socket St..
SACB-SH-8 PARA VA MOUNT P-PROT
1407295
PHOENIX_CONTACT
Sensor/actuator box, connection method: M12 socket Stainless steel, number of slots: 8, number of positions: 5, coding: A - standard, slot assignment: Parallel, status display: No, Universal, shielding: yes
Distribution box, connection type: M12 female connector Stainless steel, number of plug-in stations: 8, number of poles: 5, coding: A, occupation of plug-in stations: parallel, status indication: No, Universal, shielding: yes
Sensors > Passive sensor-actuator interface (without cable)
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1407295 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 100 pc |
| GTIN | 4046356772273 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
General
| Rated voltage | 48 V AC |
|---|---|
| 60 V DC | |
| Current carrying capacity per I/O signal | 2 A |
| Current carrying capacity per slot | 4 A |
| Total rated current | 4 A |
| Number of positions | 5 |
| Number of slots | 8 |
| Flammability rating according to UL 94 | V0 |
| Sensor/actuator connection system | M12 socket |
| Note | NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
| Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories". |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| IP67 | |
| Ambient temperature (operation) | -30 °C ... 80 °C |
Insulation material
| Housing material | Stainless steel 1.4404 |
|---|---|
| Material of the moulding mass | PUR |
| Contact material | CuSn6 |
| Contact surface material | gold-plated |
| Contact carrier material | PBT |
| Material of threaded sleeve | Stainless steel 1.4404 |
| O-ring material | FKM |
Standards and Regulations
| Standards/specifications | M12 connector IEC 61076-2-101 |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 4.0 | 27250313 |
|---|---|
| eCl@ss 4.1 | 27250313 |
| eCl@ss 5.0 | 27250313 |
| eCl@ss 5.1 | 27061801 |
| eCl@ss 6.0 | 27279200 |
| eCl@ss 7.0 | 27279218 |
| eCl@ss 8.0 | 27279218 |
| eCl@ss 9.0 | 27440108 |
UNSPSC
| UNSPSC 6.01 | 31261501 |
|---|---|
| UNSPSC 7.0901 | 31261501 |
| UNSPSC 11 | 31261501 |
| UNSPSC 12.01 | 31261501 |
| UNSPSC 13.2 | 31251501 |
| UNSPSC 19.0 | 31251501 |
| UNSPSC 20.0 | 31251501 |
| UNSPSC 21.0 | 31251501 |
