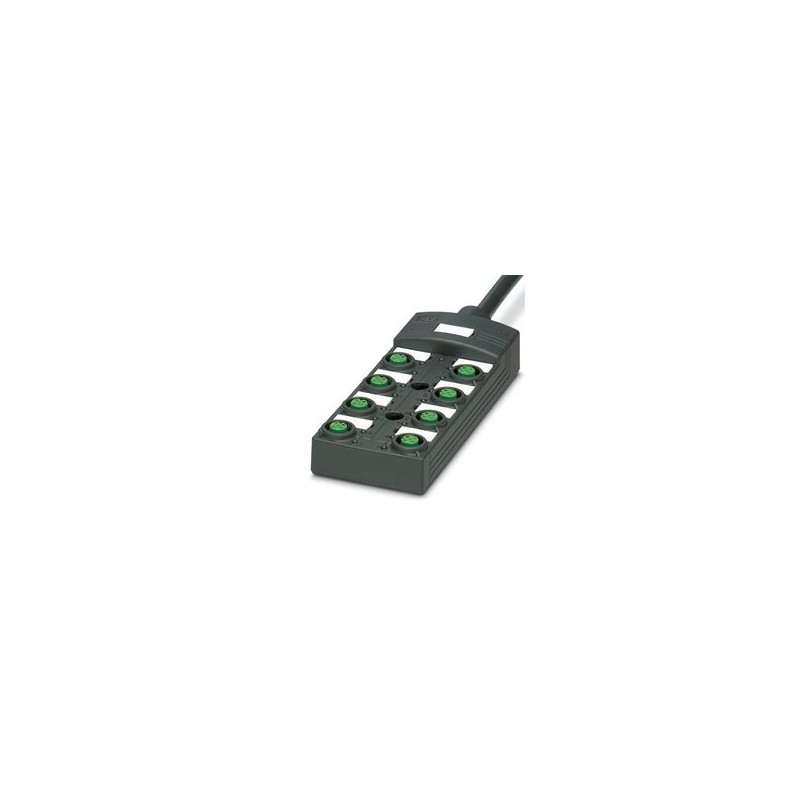

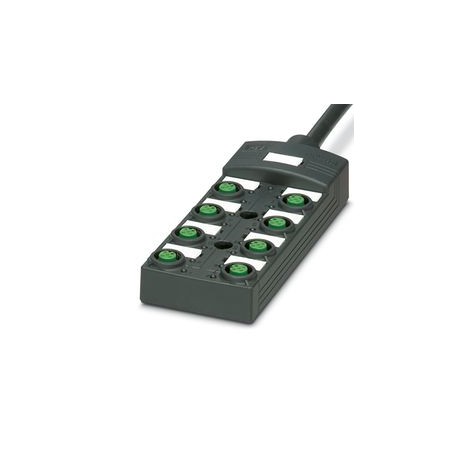

SACB-8/ 8-40,0PUR SCO 1481987 PHOENIX CONTACT Distribution box, application: Standard, number of plug-in sta..
SACB-8/ 8-40,0PUR SCO
1481987
PHOENIX_CONTACT
10
Product on demand only, returns will not be accepted.
Distribution box, application: Standard, number of plug-in stations: 8, number of poles: 4, coding: A, status indication: Yes. Main cable connection: Fixed connection, cable length: 40 m, Customer variant
Distributor box, application: Standard, number of slots: 8, number of positions: 4, coding: A, status display: Yes; master cable connection: Fixed connection, cable length: 40 m, Customer version
Sensors > Passive sensor-actuator interface (with cable)
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | NOTE:Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
| General | Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories". |
| Product type | Distributor boxes with M8 to M12 slots |
| Number of positions | 4 |
| Application | Standard |
| Number of slots | 8 |
| Coding | A |
| Material | PBT |
| PBT | |
| PUR | |
| Flammability rating according to UL 94 | V0 |
| Seal material O-ring | NBR |
| Contact material | Cu alloy |
| Contact surface material | gold-plated |
| Contact carrier material | PA |
| Conductor connection | |
| Connection method | Fixed connection |
| Status display present | Yes |
| Max. operating voltage Umax | 30 V DC |
| Nominal voltage UN | 24 V DC |
| Rated current, total | 12 A |
| Max. current carrying capacity per path | 2 A |
| Current carrying capacity per slot | 4 A |
| Cable length | 40 m |
| PUR/PVC black [PUR] | |
| Dimensional drawing |  |
| Shielded | no |
| UL AWM Style | 20549 (80°C/300 V) |
| Cable weight | 107.4 kg/km |
| Cable type | PUR/PVC black |
| Short symbol | LiYY11Y-HF |
| Cable type (abbreviation) | PUR |
| External cable diameter | 8.5 mm ±0.2 mm |
| Outer sheath, material | PUR |
| External sheath, color | black RAL 9005 |
| Thickness, outer sheath | ≥ 0.38 mm |
| Material, inner sheath | PVC |
| Inner sheath thickness | ≥ 0.15 mm |
| Conductor material | Bare Cu litz wires |
| Conductor structure signal line | 19x 0.15 mm |
| AWG signal line | 22 |
| Conductor structure, voltage supply | 42x 0.15 mm |
| Conductor cross section | 8x 0.34 mm² (Signal line) |
| AWG power supply | 18 |
| Material wire insulation | PVC |
| Wire diameter incl. insulation | 1.3 mm ±0.1 mm (Signal line) |
| 1.8 mm ±0.1 mm (power line) | |
| Single wire, color | brown, blue, green/yellow, white, green, yellow, gray, pink, red, black, violet |
| Overall twist | Wires twisted in layers |
| Nominal voltage, cable | 300 V AC |
| Test voltage Core/Core | 2000 V (50 Hz, 5 min.) |
| Cable resistance | ≤ 53 Ω/km (Signal line) |
| ≤ 26 Ω/km (power line) | |
| Cable insulation resistance | ≥ 5 MΩ*km |
| Minimum bending radius, fixed installation | 7.5 x D |
| Minimum bending radius, flexible installation | 10 x D |
| Number of bending cycles | 1500000 |
| Minimum bending radius, drag chain applications | 10 x D |
| Traversing path | 2 m |
| Traversing rate | 2 m/s |
| Resistance to oil | according to VDE 0472 Part 803 |
| Flame resistance | DIN EN 50265 |
| Other resistance | Highly resistant to acids, alkaline solutions and solvents |
| Special properties | Silicone-free |
| Ambient temperature (operation) | -5 °C ... 80 °C (Cable, flexible installation) |
| -40 °C ... 90 °C (cable, fixed installation) | |
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Ambient temperature (operation) | -25 °C ... 80 °C |
| Feature Name | Feature Value |
|---|---|
| Length of the preassembled cable (EF007300) | 40 m |
| Cable length configurable (EF007301) | No |
| Number of sensor-/actuator-slots (EF006939) | 8 |
| Number of channels per connector slot (EF006885) | 2 |
| Number of poles sensor/actuator slots (EF007402) | 4 |
| Rated voltage (EF000228) | 24 V |
| Operating voltage (EF003983) | 24 V |
| Max. current carrying capacity per socket (EF004038) | 2 A |
| Max. total current (EF004039) | 12 A |
| Material of contact surface (EF004020) | Gold |
| Material insulation body (EF007543) | Polyamide (PA) |
| With LED indication (EF005950) | Yes |
| With potential separation (EF003272) | No |
| Connection for NPN-sensors (EF006817) | No |
| Fix cable version suitable for cable guide chain (EF007461) | No |
| Housing colour (EF000136) | Other |
| Operating temperature (EF002393) | -25 °C |
| Degree of protection (IP) (EF005474) | IP65 |
| Explosion safety category for gas (EF003997) | Other |
| Explosion safety category for dust (EF003998) | Other |
