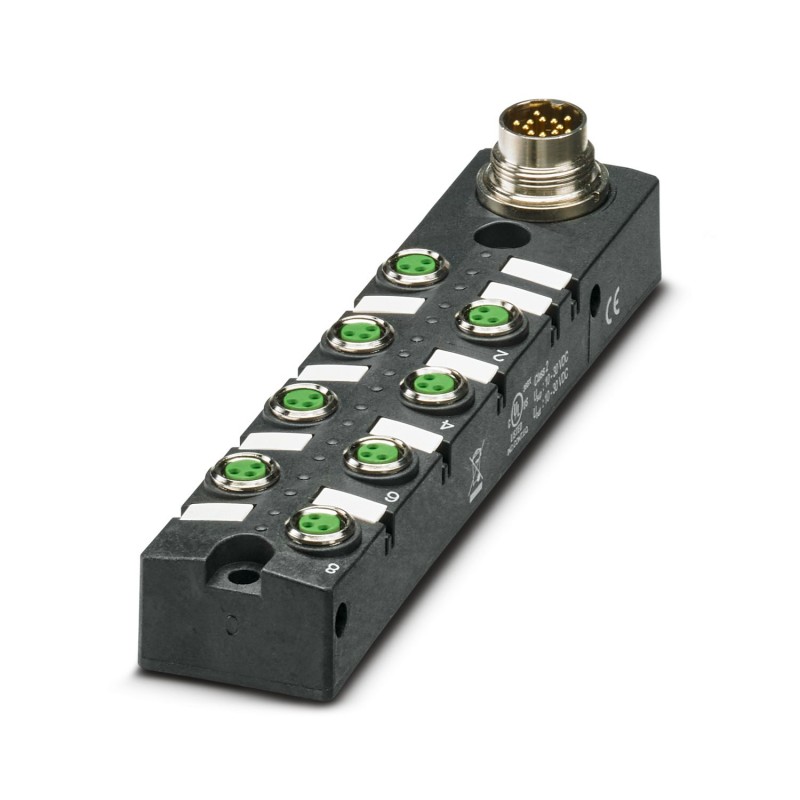

SACB- 8/3-L-M16-M8 HD 1166980 PHOENIX CONTACT Sensor/Actuator Box SACB- 8/3-L-M16-M8 HD
SACB-8/3-L-M16-M8 HD
1166980
PHOENIX_CONTACT
Sensor/Actuator Box - SACB- 8/3-L-M16-M8 HD
Sensor/actuator box, application: Standard, connection type: Female M8 Metal, number of plug-in stations: 8, number of poles: 3, coding: A - standard, occupation of plug-in stations: single, status indication: Yes, pnp; Main cable connection: M16 90° plug-in connection, shielding: no
Distributor box, application: Standard, connection method: M8 socket Metal, number of slots: 8, number of positions: 3, coding: A, slot assignment: single, status display: Yes, PNP; master cable connection: M16 plug connection 90°, shielding: no
Sensors > Passive sensor-actuator interface (without cable)
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Assembly note | NOTE:Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties. |
| Note on application | Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories". |
| Product type | Distributor box |
| Application | Standard |
| Number of positions | 3 |
| Number of slots | 8 |
| Coding | A |
| LED | yes |
| Data management status | |
| Article revision | 02 |
| Local diagnostics | |
| Monitored function | Supply voltage per module |
| Optical representation | Green LED |
| Max. operating voltage Umax | 30 V DC |
| Local diagnostics | Supply voltage per module Green LED |
| Status display I/O Yellow LED | |
| Nominal voltage UN | 24 V DC |
| Rated current, total | 6 A |
| Max. current carrying capacity per path | 2 A |
| Current carrying capacity per slot | 2 A |
| Conductor connection | |
| Sensor/actuator connection system | M8 socket |
| Tightening torque slot sensor/actuator cable | 0.2 Nm |
| Tightening torque - master cable - plug connection | 1.5 Nm |
| Tightening torque of mounting screw for fixing the housing | 0.8 Nm |
| Pin assignment | |
| Slot/position = Wire color or connection | 1 / 4 (A) = P |
| 2 / 4 (A) = J | |
| 3 / 4 (A) = T | |
| 4 / 4 (A) = S | |
| 5 / 4 (A) = G | |
| 6 / 4 (A) = R | |
| 7 / 4 (A) = E | |
| 8 / 4 (A) = O | |
| 1-8 / 1 (+ 24 V) = A+M | |
| 1-8 / 3 (0 V) = L+U | |
| Status display present | Yes |
| Dimensional drawing |  |
| Width | 30 mm |
| Height | 27 mm |
| Length | 134.4 mm |
| Material Threaded sleeve | Cu alloy |
| Material Housing | PBT |
| Material Molding compound | PUR |
| Seal material O-ring | FKM |
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | PBT |
| Material of contact, master cable side | CU alloy |
| Connection method | M16 plug connection |
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -20 °C ... 80 °C |
| Standard designation | M8 connector |
| Standards/specifications | IEC 61076-2-104 |
| Feature Name | Feature Value |
|---|---|
| Number of sensor-/actuator-slots (EF006939) | 8 |
| Number of channels per connector slot (EF006885) | 1 |
| Type of branches for sensor-/actuator cables (EF006972) | M8 |
| Number of poles sensor/actuator slots (EF007402) | 3 |
| Operating voltage (EF003983) | 24 V |
| Max. current carrying capacity per I/O signal (EF004037) | 6 A |
| Max. total current (EF004039) | 6 A |
| Material of contact surface (EF004020) | Other |
| With LED indication (EF005950) | Yes |
| With potential separation (EF003272) | No |
| Connection for NPN-sensors (EF006817) | No |
| Operating temperature (EF002393) | -20 °C |
| Degree of protection (IP) (EF005474) | IP67 |
| Explosion safety category for gas (EF003997) | Other |
| Explosion safety category for dust (EF003998) | Other |
| Width (EF000008) | 30 mm |
| Height (EF000040) | 27 mm |
Datasheet - PDF
