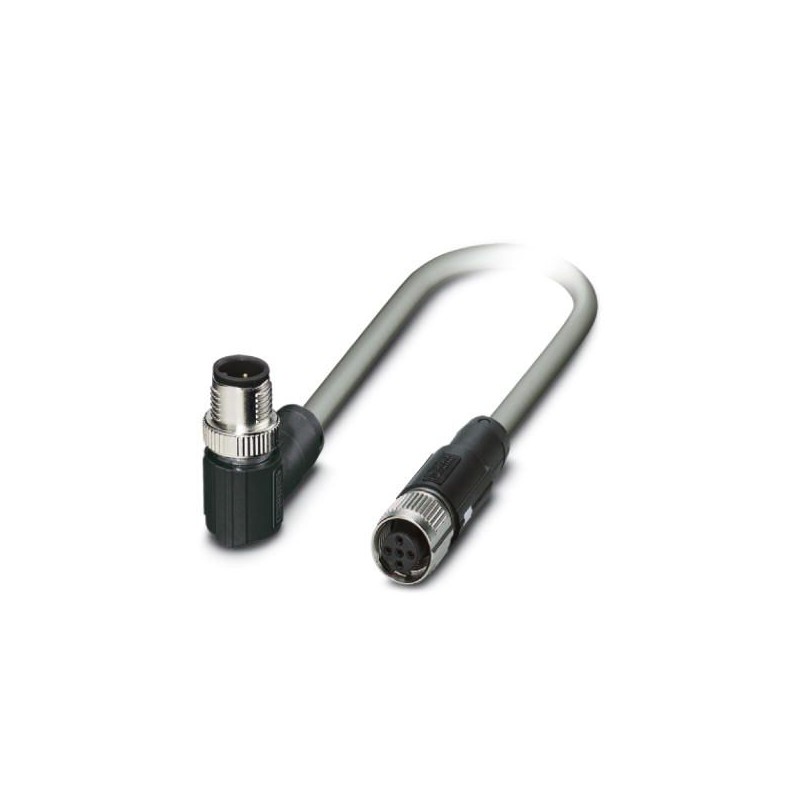

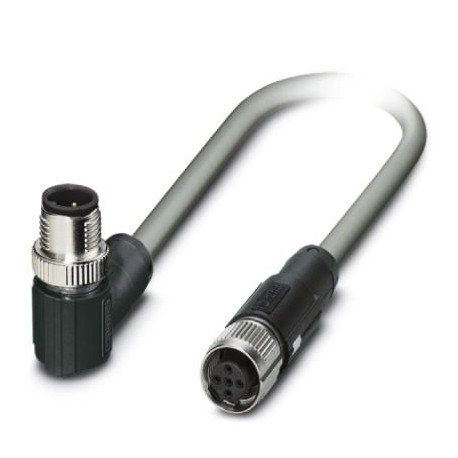

SAC-5P-MR/ 0,5-924/FS SCO
1405973
PHOENIX_CONTACT
50
Bus system cable
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1405973 |
---|---|
Packing unit | 1 pc |
Minimum order quantity | 50 pc |
Note | Made to Order (non-returnable) |
GTIN | 4046356800556 |
Weight per Piece (excluding packing) | 53.900 g |
Custom tariff number | 85444290 |
Country of origin | US (United States) |
Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
---|---|
Degree of protection | IP65 |
IP67 | |
IP68 |
Rated current at 40°C | 4 A |
---|---|
Rated voltage | 48 V AC |
60 V DC | |
Number of positions | 5 |
Insulation resistance | ≥ 100 MΩ |
Coding | A - standard |
Signal type/category | CANopen® |
DeviceNet™ | |
Status display | No |
Overvoltage category | II |
Degree of pollution | 3 |
Torque | 0.4 Nm (M12 connector) |
Flammability rating according to UL 94 | HB |
---|---|
Contact material | CuSn |
Contact surface material | Ni/Au |
Contact carrier material | TPU GF |
Material of grip body | TPU, hardly inflammable, self-extinguishing |
Material, knurls | Zinc die-cast, nickel-plated |
Sealing material | NBR |
Cable type | CAN Bus/DeviceNet gray |
---|---|
Cable type (abbreviation) | 924 |
UL AWM style | 2464 (80°C/300 V) |
Cable structure | 2xAWG22 (Signal) + 2xAWG22 (Power) |
Conductor cross section | 2x 0.34 mm² (Signal line) |
2x 0.34 mm² (Power supply) | |
AWG signal line | 22 |
AWG power supply | 22 |
Conductor structure signal line | 19x 0.15 mm |
Conductor structure, voltage supply | 19x 0.15 mm |
Core diameter including insulation | 1.27 mm ±0.05 mm (Signal line) |
2.24 mm ±0.13 mm (Power supply) | |
Wire colors | Red-black, blue-white |
Twisted pairs | 2 cores to the pair |
Type of pair shielding | Plastic-coated aluminum foil, aluminum side inside |
Overall twist | 2 pairs around a drain wire in the center to the core |
Shielding | Plastic-coated aluminum foil with a filler litz wire, aluminum side outside |
External sheath, color | gray |
External cable diameter D | 6.9 mm ±0.13 mm |
Minimum bending radius, flexible installation | 15 x D |
Cable weight | 64.51 kg/km |
Outer sheath, material | PVC |
Material conductor insulation | Foamed PE (Signal line) |
PVC (Power supply) | |
Conductor material | Bare Cu litz wires |
Insulation resistance | ≥ 59.38 Ω*m (Signal line) |
≥ 57.41 GΩ*km (Power supply) | |
Working capacitance | nom. 78.74 pF (per meter) |
Wave impedance | 120 Ω ±12 Ω |
Signal runtime | 4.46 ns/m |
Shield attenuation | 0.95 dB (f = 125 kHz) |
1.64 dB (f = 500 kHz) | |
2.3 dB (f = 1 MHz) | |
Special properties | UL standards PLTC and ITC |
Resistance to oil | yes |
Other resistance | UV resistant |
Ambient temperature (operation) | -30 °C ... 75 °C (cable, fixed installation) |
China RoHS | Environmentally Friendly Use Period = 50 |
---|---|
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
