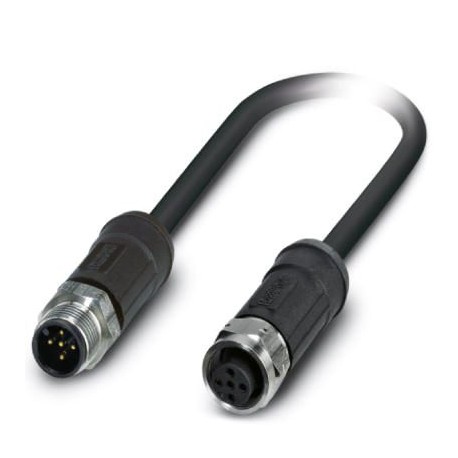

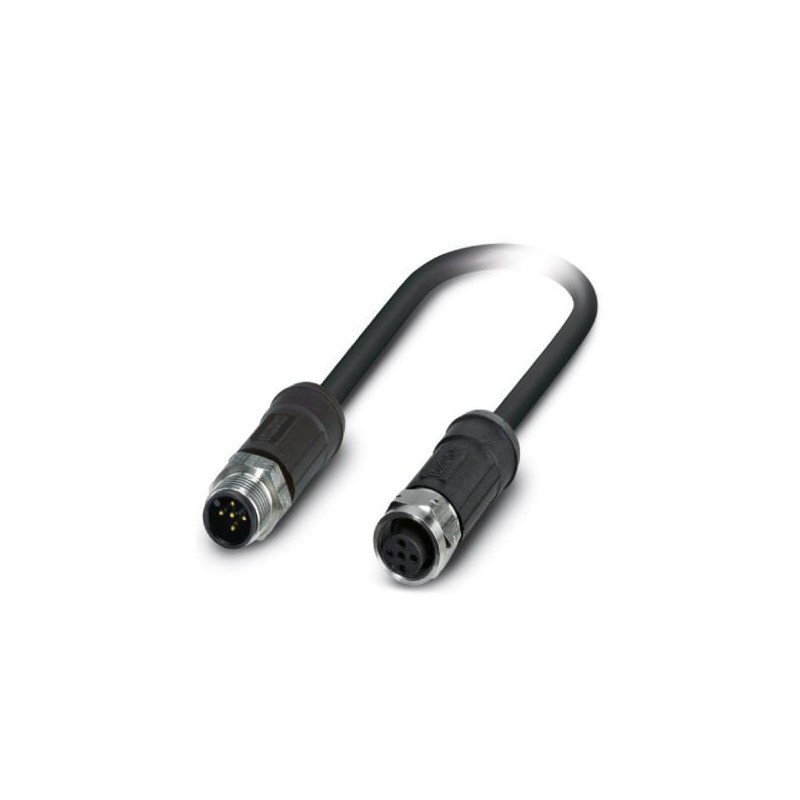

SAC-5P-M12MS/20-92X/M12FSSHOD 1413938 PHOENIX CONTACT Bus system cable
SAC-5P-M12MS/20-92X/M12FSSHOD
1413938
PHOENIX_CONTACT
50
Bus system cable
Industrial Field Connectivity (IFC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1413938 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626012414 |
| Weight per Piece (excluding packing) | 1,360.000 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 85 °C (On sudden changes in temperature (according to IEC 60512-11-4)) |
|---|---|
| -40 °C ... 105 °C (Plug / socket) | |
| -40 °C ... 85 °C (On sudden changes in temperature (according to IEC 60512-11-4)) |
General data
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 48 V AC |
| 60 V DC | |
| Number of positions | 5 |
| Signal type/category | CANopen® |
| DeviceNet™ | |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Degree of pollution | 3 |
| Contact material | CuSn |
| Contact carrier material | PP |
| Contact surface material | Ni/Au |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | IEC 61076-2-101 |
| Flammability rating according to UL 94 | V0 |
Cable
| Cable type | CAN bus/DeviceNet™, black |
|---|---|
| Cable type (abbreviation) | 92X |
| UL AWM style | 21281 (80°C/300 V) |
| Signal type/category | CANopen® |
| DeviceNet™ | |
| Cable structure | 2xAWG24/19+2xAWG22/19 |
| Conductor cross section | 2x 0.25 mm² (Signal) |
| 2x 0.34 mm² (Power) | |
| 1x 0.38 mm² (Drain wire) | |
| AWG signal line | 24 |
| AWG power supply | 22 |
| Conductor structure signal line | 19x 0.13 mm |
| Conductor structure, voltage supply | 19x 0.16 mm |
| Core diameter including insulation | 1.9 mm (Signal) |
| 1.4 mm (Power) | |
| Thickness, insulation | 0.6 mm (Signal) |
| 0.3 mm (Power) | |
| Wire colors | Red-black, blue-white |
| Twisted pairs | 2 cores to the pair |
| Type of pair shielding | Aluminum-lined foil |
| Overall twist | 2 pairs around a drain wire in the center to the core |
| Shielding | Tinned copper braided shield |
| Optical shield covering | 70 % |
| External sheath, color | black |
| Outer sheath thickness | 1.15 mm |
| External cable diameter D | 6.9 mm ±0,3 mm |
| Minimum bending radius, fixed installation | 5 x D |
| Minimum bending radius, flexible installation | 10 x D |
| Cable weight | 70 kg/km |
| Outer sheath, material | FRNC |
| Material conductor insulation | PE |
| Conductor material | Tin-plated Cu litz wires |
| Insulation resistance | ≥ 200 MΩ*km (at 20 °C) |
| Conductor resistance | 90 Ω/km (Signal) |
| 55 Ω/km (Power) | |
| Working capacitance | 39.8 nF (at 1 kHz, core/core) |
| Wave impedance | 120 Ω ±12 Ω (f = 1 MHz) |
| Signal runtime | 4.46 ns/m |
| Nominal voltage, cable | ≤ 300 V |
| Test voltage Core/Core | 2000 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 2000 V (50 Hz, 1 min.) |
| Flame resistance | According to IEC 60332-3-25 (Cat. D) |
| Halogen-free | yes |
| Resistance to oil | yes |
| Other resistance | UV resistant |
| Ambient temperature (operation) | -40 °C ... 105 °C |
| Ambient temperature (installation) | -40 °C ... 105 °C |
| Ambient temperature (storage/transport) | -40 °C ... 105 °C |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
