SAC-4PM12MS/0,2-PUR/M12FS B3X4 1517751 PHOENIX CONTACT Sensor/actuator cable, 8-pole, halogen-free PUR, grey..
SAC-4PM12MS/0,2-PUR/M12FS B3X4
1517751
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.

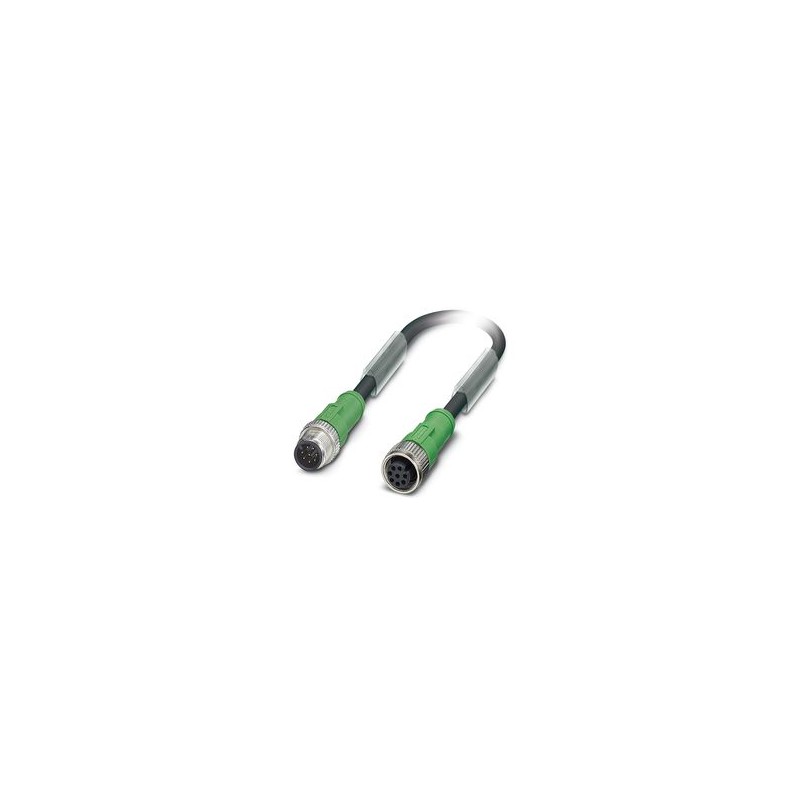

Sensor/actuator cable, 8-pole, halogen-free PUR, greyish black RAL 7021, Straight connector M12, coding: A, to Straight female M12, coding: A, cable length: 0.2 m
Cable for sensors/actuators
Sensor/actuator cable, 8-pole halogen-free, straight male connector M12, keying: A, wired with disconnected, on Straight female connector M12, keying: A, cable length: 0.2 m
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Sensor Cable/Actuators |
| Number of poles | 8 |
| Number of cable outlets | 1 |
| Armored | No |
| Keying | A |
| Insulation properties | |
| Surge Category | II |
| Degree of pollution | 3 |
| Flammability class according to UL 94 | HB |
| Seal material | NBR |
| Plug Surface Material | TPU, flame retardant, self-extinguishing |
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Contact holder material | TPU GF |
| Screwed connection material | Zinc die-cast, nickel-plated |
| Contact resistance | ≤ 5 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Rated voltage UN | 30 V AC |
| 30 V DC | |
| Rated Current IN | 2 A |
| Protection circuit | Disconnected |
| Mechanical characteristics | |
| Plugging cycles | ≥ 100 |
| Status display | No |
| Presence of a status display | No |
| Connection 1 | |
| Type | M12 straight male connector |
| Number of poles | 8 |
| Coding Type | A |
| Connection 2 | |
| Type | M12 straight female connector |
| Number of poles | 8 |
| Coding Type | A |
| Cable length | 0.2 m |
| PUR free of black halogen [PUR] | |
| Dimensioned drawing |  |
| Sheath Weight | 46 kg/km |
| Style UL AWM | 20549 / 10493 (80 °C / 300 V) |
| Number of poles | 8 |
| Armored | No |
| Type | PUR free of black halogen [PUR] |
| Conductor structure signal line | 32x 0.10 mm |
| AWG Signal Line | 24 |
| Cable section | 8x 0.25 mm² (Signal Line) |
| Wire diameter with insulation | 1.17 mm ±0.02 mm |
| Outer diameter of the cable | 5.9 mm ±0.15 mm |
| Outer Sheath, Material | PURE |
| Outer sheath, colour | grey-black RAL 7021 |
| Conductive material | Bare Cu Cord |
| Filling material | PE |
| Wire Insulating Material | PP |
| Yarn, colour | white, brown, green, yellow, grey, pink, blue, red |
| Insulation thickness | ≥ 0.21 mm |
| Outer sheath thickness | approx. 0.8 mm |
| Total wiring | 8 wires with 2 filling masses in the direction of the core |
| Max. conductor resistance | ≤ 78 Ω/km |
| Insulation resistance | ≥ 1 GΩ*km |
| Wave Impedance | 100 Ω +15% (for 1 MHz) |
| Line capacity | ≤ 70 pF/m |
| Rated cable voltage | ≤ 300 V |
| Test voltage | ≥ 3000 V |
| Minimum bending radius, fixed position | 8 x D |
| Minimum bend radius, flexible position | 10 x D |
| Minimum bending radius, fixed installation | 48 mm |
| Minimal bending radius, flexible installation | 59 mm |
| Max. bending cycles | 4000000 |
| Halogen-free | according to DIN VDE 0472 Part 815 |
| Resistance to flame spread | to UL 758/1581 FT2 |
| according to DIN EN 60332-2-2 (20 s) | |
| Oil resistance | according to DIN EN 60811-2-1 |
| Special Resistance | Good resistance to acids, alkaline detergents and solvents |
| Resistant to hydrolysis and microbes | |
| relatively UV-resistant according to DIN EN ISO 4892-2-A | |
| Non-adhesive | |
| wear-resistant | |
| Special properties | Drag chain compatible |
| silicone-free | |
| Free of substances harmful to the application of coatings | |
| flexible | |
| Ambient Temperature (Operating) | -40 °C ... 80 °C (cable, fixed installation) |
| -25 °C ... 80 °C (Cable, Flexible Laying) | |
| Environmental conditions | |
| Ambient Temperature (Operating) | -25 °C ... 90 °C (male/female connector) |
| -40 °C ... 80 °C (cable, fixed installation) | |
| -5 °C ... 80 °C (Cable, Flexible Laying) | |
| Designation of the standard | M12 connector |
| Standards/requirements | IEC 61076-2-101 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 8 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Female (bus) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 0.2 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | No |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuZn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -25 °C |
| Rated current In (EF008250) | 2 A |
| Rated voltage (EF000228) | 30 V |
