SAC-4P-M12MS/28,0-28X SH OD 1553587 PHOENIX CONTACT Sensor/actuator cable, 4-pole, M12 straight connector, t..
SAC-4P-M12MS/28,0-28X SH OD
1553587
PHOENIX_CONTACT
25
Product on demand only, returns will not be accepted.

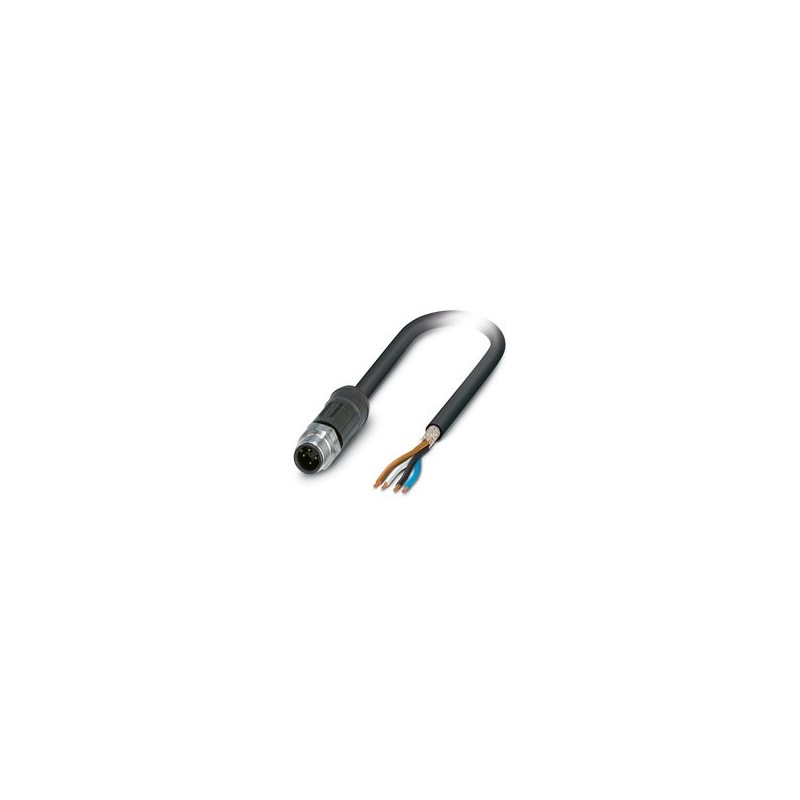

Sensor/actuator cable, 4-pole, M12 straight connector, to free cable end, cable length: 28 m, for outdoor applications, with stainless steel knurling
Cable for sensors/actuators
Sensor/actuator cable, 4-pole, straight male connector M12, free end, cable length: 28 m, for outdoor applications, with stainless steel wheel
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Sensor Cable/Actuators |
| Number of poles | 4 |
| Application | Exterior |
| Number of cable outlets | 1 |
| Armored | Yes |
| Keying | A |
| Insulation properties | |
| Degree of pollution | 3 |
| Flammability class according to UL 94 | V0 |
| Seal material | FPM |
| Plug Surface Material | PP |
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact holder material | PP |
| Screwed connection material | Stainless steel |
| Contact resistance | ≤ 5 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Rated voltage UN | 48 V AC |
| 60 V DC | |
| Rated Current IN | 4 A |
| Protection circuit | Disconnected |
| Status display | No |
| Presence of a status display | No |
| Connection 1 | |
| Type | M12 straight male connector |
| Connection 2 | |
| Type | free end |
| Cable length | 28 m |
| PE-X Black [28X] | |
| Dimensioned drawing |  |
| Armored | Yes |
| Sheath Weight | 74 kg/km |
| Type | PE-X black |
| Abbreviation | Li2X2X-C-Vl-2X |
| Cable Type (Symbol) | 28X |
| Outer diameter of the cable | 6.8 mm ±0.2 mm |
| Outer Sheath, Material | PE-X |
| Outer sheath, colour | grey-black RAL 7021 |
| Inner sheath material | PE-X |
| Conductive material | Bare Cu Cord |
| Conductor structure signal line | 28x 0.15 mm |
| AWG Signal Line | 20 |
| Cable section | 4x 0.5 mm² (Signal Line) |
| Wire Insulating Material | PE-X |
| Insulation thickness | approx. 0.3 mm (Wire insulation) |
| Wire diameter with insulation | 1.6 mm ±0.05 mm (Signal Line) |
| Yarn, colour | brown, white, blue, black |
| Total wiring | 4 longitudinally twisted wires |
| No wiring, total wiring | 108.8 mm |
| Shielding | Copper wire braid |
| Shielding Optical Coating | 85 % |
| Rated cable voltage | ≤ 300 V AC |
| Test Voltage Cable | ≥ 3000 V AC |
| Line Strength | ≤ 39 Ω/km (at 20 °C) |
| Line Insulation Resistance | ≥ 100 MΩ*km (at 20°C) |
| Line capacity | ≤ 100 nF/km (Driver-to-Driver, Unbalanced/Contact) |
| ≤ 85 nF/km (Conductor-to-Conductor, Unbalanced/Radial Quarte) | |
| ≤ 150 nF/km (Conductive Shield) | |
| Inductance | 0.64 mH/km (at 1 kHz) |
| 0.46 mH/km (at 10 MHz) | |
| Smallest bending radius, fixed installation | 34 mm |
| Smaller bending radius, flexible installation | 68 mm |
| Number of bending cycles | 1000000 |
| Bend Radius | 68 mm |
| Race | 10 m |
| Movement speed | 3 m/s |
| Acceleration | 10 m/s² |
| Halogen-free | according to DIN VDE 0472 Part 815 |
| Oil resistance | according to DIN EN 60811-2-1 |
| Resistance to flame spread | according to DIN 60332-1-2 |
| according to DIN EN 50266-2-5 | |
| Special Resistance | UV-resistant according to DIN VDE 0276-605 |
| Special properties | reticulated by irrad. |
| Ambient Temperature (Operating) | -15 °C ... 105 °C (Cable, Flexible Lay) |
| -40 °C ... 105 °C (cable, fixed installation) | |
| Environmental conditions | |
| Ambient Temperature (Operating) | -40 °C ... 105 °C (Male/Female Connector) |
| -40 °C ... 85 °C (in case of rapid temperature changes (according to IEC 60512-11-4)) | |
| M12 | |
| Designation of the standard | M12 connector |
| Standards/requirements | IEC 61076-2-101 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | Other |
| Positioning cable feed, box-sided (EF005927) | Other |
| Cable length (EF000536) | 28 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | Yes |
| Material contact body (EF008248) | CuSn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -15 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 48 V |
