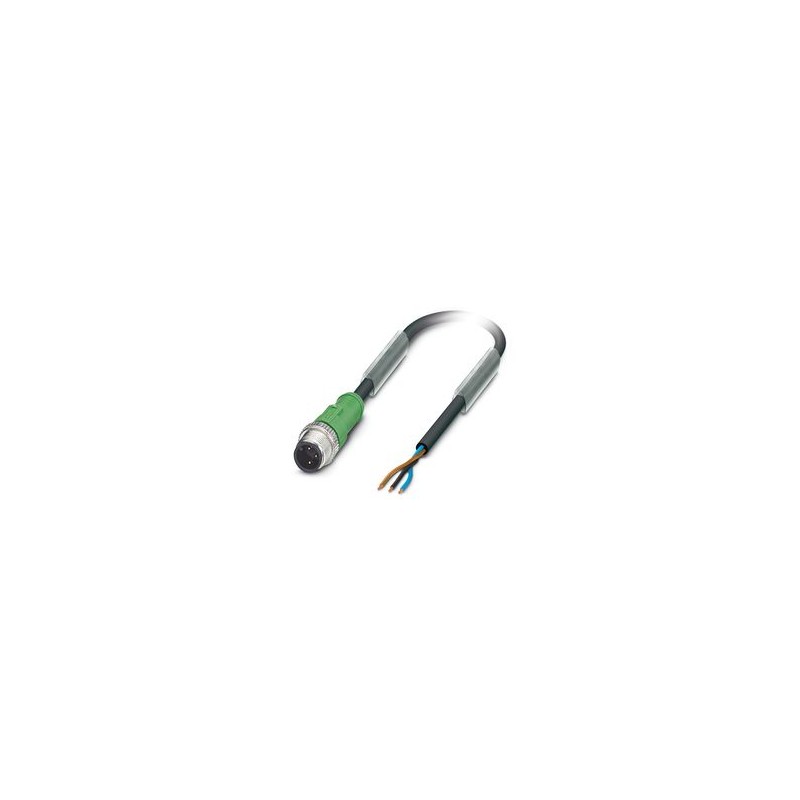

SAC-3P-M12MS/0,35-PVC 1502304 PHOENIX CONTACT Sensor/Actuator Cable, 3-Pole, M12 Straight Connector, Coding:..
SAC-3P-M12MS/0,35-PVC
1502304
PHOENIX_CONTACT
250
Sensor/Actuator Cable, 3-Pole, M12 Straight Connector, Coding: A, To Free Cable End, Cable Length: 0.35 m
Data Cable
Sensor/actuator cable, 3-position, Plug straight M12, coding: A, connected with unwired, on free cable end, cable length: 0.35 m
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Sensor/actuator cable |
| Number of positions | 3 |
| Application | Standard |
| No. of cable outlets | 1 |
| Shielded | no |
| Coding | A |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Flammability rating according to UL 94 | HB |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Contact resistance | ≤ 5 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 250 V AC |
| 250 V DC | |
| Nominal current IN | 4 A |
| Protective circuit | unwired |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Status display | No |
| Status display present | No |
| Connection 1 | |
| Type | Plug straight M12 |
| Number of positions | 3 |
| Coding type | A |
| Connection 2 | |
| Type | free cable end |
| Cable length | 0.35 m |
| PVC black [PVC] | |
| Dimensional drawing |  |
| Shielded | no |
| UL AWM Style | 2464 / 1729 (80°C/300 V) |
| Cable weight | 40 kg/km |
| Cable type | PVC black |
| Short symbol | LiYY |
| Cable type (abbreviation) | PVC |
| External cable diameter | 4.3 mm ±0.2 mm |
| Outer sheath, material | PVC |
| External sheath, color | black RAL 9005 |
| Thickness, outer sheath | ≥ 0.76 mm |
| Conductor material | Bare Cu litz wires |
| Conductor structure signal line | 19x 0.15 mm |
| AWG signal line | 22 |
| Conductor cross section | 3x 0.34 mm² (Signal line) |
| Material wire insulation | PVC |
| Thickness, insulation | ≥ 0.23 mm (Core insulation) |
| Wire diameter incl. insulation | 1.26 mm ±0.05 mm |
| Single wire, color | brown, blue, black |
| Overall twist | 3 wires, twisted |
| Nominal voltage, cable | ≤ 300 V |
| Test voltage, cable | ≥ 2500 V |
| Cable resistance | max. 57 Ω/km (at 20 °C) |
| Cable insulation resistance | ≥ 100 MΩ*km (at 20 °C) |
| Minimum bending radius, fixed installation | 5 x D |
| Minimum bending radius, flexible installation | 10 x D |
| Flame resistance | As per UL-Style 2464 |
| Ambient temperature (operation) | -10 °C ... 80 °C (Cable, flexible installation) |
| -25 °C ... 80 °C (cable, fixed installation) | |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| IP68 | |
| Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
