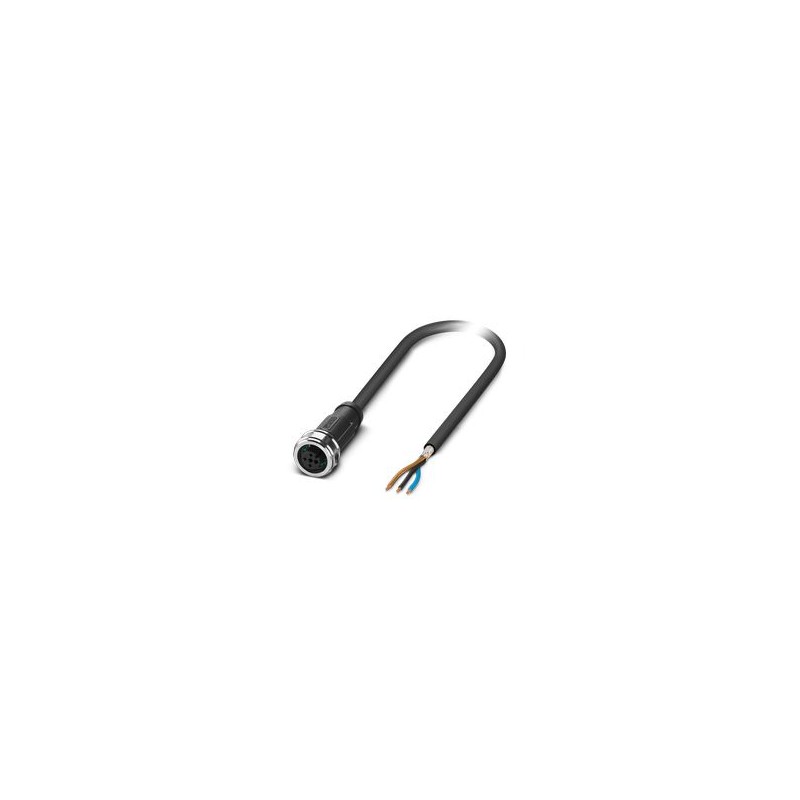

SAC-3P- 1,5-PUR/P12FS SH 1476794 PHOENIX CONTACT Sensor/actuator cable, 3-pole, halogen-free PUR, greyish bl..
SAC-3P-1,5-PUR/P12FS SH
1476794
PHOENIX_CONTACT
Sensor/actuator cable, 3-pole, halogen-free PUR, greyish black RAL 7021, shielded (Advanced Shielding Technology), free cable end, a Straight female M12 Push-pull, coding: A, cable length: 1.5 m
Cable for sensors/actuators
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Connection type | Push-Pull |
| Product Type | Sensor/Actuator Cables |
| Number of poles | 3 |
| application | Standard |
| Number of Cable Outlets | 1 |
| Shielded | Yes |
| Codification | to |
| Insulation Properties | |
| Surge Category | Ii |
| Degree of pollution | 3 |
| Material | PA |
| Flammability class according to UL 94 | V0 |
| Grip body material | Fire-resistant, self-extinguishing TPU |
| Contact material | CuSn |
| Material: Contact Surface | Ni/AU |
| Outer Wrap, Material | PUR |
| Conductive Material | Naked Cu Conductor |
| Contact resistance | ≤ 5 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 48 V AC |
| 60 V DC | |
| Nominal Current IN | 4 A |
| Protection Circuit | Unplugged |
| Max. Conductor Resistance | 58 Ω/m |
| Mechanical data | |
| Plug Cycles | ≥ 100 |
| Max. bending cycles | 10000000 |
| Status Indication | No |
| Available Status Indication | No |
| Connection technology | |
| Connection type | Push-Pull |
| Connecting Conductors | |
| Connection type | Push-Pull |
| Tightening torque | M12 Push-Pull Connectors |
| Connection 1 | |
| Construction | Free Cable End |
| Connection 2 | |
| Construction | Straight Female M12 Push-pull |
| Number of poles | 3 |
| Locking system | Push-pull |
| Encoding Type | to |
| Cable length | 1.5 m |
| Halogen-free PUR Black [PUR] | |
| Cable Weight | 31 kg/km |
| UL AWM Style | 20549 |
| Number of poles | 3 |
| Shielded | Yes |
| Cable type | Halogen-free PUR Black [PUR] |
| Conductor Construction Signal Cable | 42x 0.10 mm |
| AWG Signal Line | 22 |
| Line Section | 3x 0.34 mm² (signal conductor) |
| Conductor diameter incl. insulation | 1.27 mm ±0.02 mm (signal conductor) |
| Cable Outer Diameter | 4.65 mm ±0.15 mm |
| Outer Wrap, Material | PUR |
| Outer Wrap, Color | greyish black RAL 7021 |
| Conductive Material | Naked Cu Conductor |
| Material: Conductor Insulation | PP |
| Single Driver, Color | brown, blue, black |
| Wall Thickness Insulation | ≥ 0.21 mm (Conductor Insulation) |
| approx. 0.5 mm (Outer Wrap) | |
| Total cabling | 3 longitudinally stranded conductors |
| Visual Screen Cover | 80 % |
| Max. Conductor Resistance | max. 58 Ω/km (at 20 °C) |
| Insulation resistance | ≥ 100 GΩ*km (at 20 °C) |
| Nominal Voltage Cable | ≤ 300 V |
| Test voltage | ≥ 3000 V |
| Smaller bending radius, fixed mounting | 23 mm |
| Smaller bending radius, movable mounting | 47 mm |
| Max. bending cycles | 10000000 |
| Absence of halogens | according to DIN VDE 0472 part 815 |
| Flame Resistance | according to UL 758/1581 FT2 |
| DIN EN 60332-2-2 (20 s) | |
| Oil Resistance | according to DIN EN 60811-2-1 |
| Other resistances | Good resistance to acids, alkalis and solvents |
| resistant to hydrolysis and microbes | |
| UV-resistant conditional according to DIN EN ISO 4892-2-A | |
| Special Features | suitable for energy chains |
| Silicone-free | |
| No substances that disturb the wetting of paints | |
| Ambient Temperature (Service) | -40 °C ... 80°C (cable, fixed arrangement) |
| -25 °C ... 80 °C (Cable, movable arrangement) | |
| Environmental conditions | |
| Protection Index | IP65 |
| IP67 | |
| Ambient Temperature (Service) | -25 °C ... 85°C (male/female) |
| -25 °C ... 80°C (cable, fixed arrangement) | |
| -5 °C ... 80 °C (Cable, movable arrangement) | |
| Denomination of standard | M12-Push-Pull |
| Rules/Provisions | IEC 61076-2-010 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 3 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Positioning cable feed, field-sided (EF005928) | Other |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Female (bus) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 1.5 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuSn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -25 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | IP65 |
