SAC-3P-10,0-PUR/P12FR SH 1476782 PHOENIX CONTACT Sensor/actuator cable, 3-pole, halogen-free PUR, greyish bl..
SAC-3P-10,0-PUR/P12FR SH
1476782
PHOENIX_CONTACT

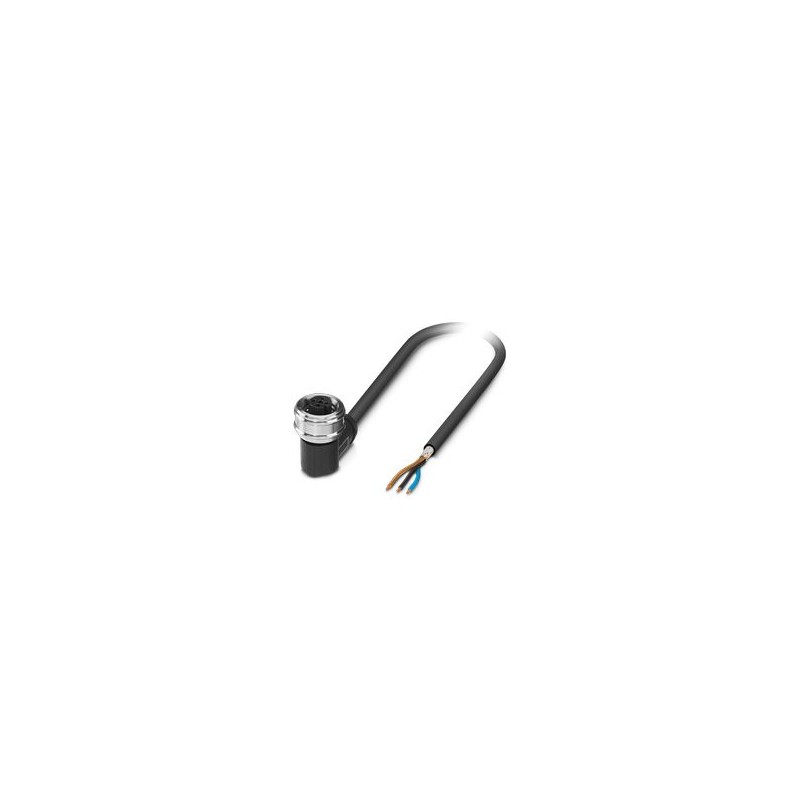

Sensor/actuator cable, 3-pole, halogen-free PUR, greyish black RAL 7021, shielded (Advanced Shielding Technology), free cable end, to Elbowed female M12 Push-pull, coding: A, cable length: 10 m
Cable for sensors/actuators
Sensor/actuator cable, 3-pole, PUR halogen-free, black-grey RAL 7021, shielded (Advanced Shielding Technology), free cable end, angled to socket M12 push-pull, coding: A, cable length: 10 m
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Sensor/Actuator Cable |
| Number of poles | 3 |
| Application | Standard |
| Number of cable outlets | 1 |
| Shielded | Yes |
| Coding | A |
| Insulation properties | |
| Surge Category | II |
| Degree of contamination | 3 |
| Material | PA |
| Flammability class according to UL 94 | V0 |
| Material Handle Body | TPU, flame retardant, self-extinguishing |
| Material Contact | CuSn |
| Contact surface material | Ni/Au |
| Outer Jacket, Material | PUR |
| Material Conductor | bare copper wire |
| Contact resistance | ≤ 5 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Rated voltage UN | 48 V AC |
| 60 V DC | |
| Nominal current IN | 4 A |
| Protective circuitry | unswitched |
| Conductor resistance max. | 58 Ω/m |
| Mechanical data | |
| Mating cycles | ≥ 100 |
| Bending cycles maximum | 10000000 |
| Status display | Yes |
| Status indicator available | Yes |
| Conductor connection | |
| Tightening torque | M12 Push-Pull Connectors |
| Port 1 | |
| Design | free end of line |
| Port 2 | |
| Design | Socket angled M12 Push-Pull |
| Number of poles | 3 |
| Lock type | Push-Pull |
| Encoding type | A |
| Cable length | 10 m |
| PUR halogen-free black [PUR] | |
| Line weight | 31 kg/km |
| UL AWM Style | 20549 |
| Number of poles | 3 |
| Shielded | Yes |
| Line Type | PUR halogen-free black [PUR] |
| Conductor structure Signal cable | 42x 0.10 mm |
| AWG signal line | 22 |
| Cable cross-section | 3x 0.34 mm² (signal line) |
| Core diameter including insulation | 1.27 mm ±0.02 mm (signal line) |
| Pipe outer diameter | 4.65 mm ±0.15 mm |
| Outer Jacket, Material | PUR |
| Outer Jacket, Colour | black-grey RAL 7021 |
| Material Conductor | bare copper wire |
| Material Core Insulation | PP |
| Single wire, colour | brown, blue, black |
| Wall Thickness Insulation | ≥ 0.21 mm (core insulation) |
| approx. 0.5 mm (outer jacket) | |
| Total stranding | 3 wires longitudinally stranded |
| Optical screen covering | 80 % |
| Conductor resistance max. | max. 58 Ω/km (at 20 °C) |
| Insulation resistance | ≥ 100 GΩ*km (at 20 °C) |
| Nominal Voltage Cable | ≤ 300 V |
| Test voltage | ≥ 3000 V |
| Smallest bending radius, fixed | 23 mm |
| Smallest bending radius, movable | 47 mm |
| Bending cycles maximum | 10000000 |
| Halogen-free | according to DIN VDE 0472 Part 815 |
| Flame retardancy | according to UL 758/1581 FT2 |
| DIN EN 60332-2-2 (20 s) | |
| Oil resistance | according to DIN EN 60811-2-1 |
| Other Durability | Good resistance to acids, alkalis and solvents |
| Resistant to hydrolysis and microbes | |
| Conditionally UV resistant according to DIN EN ISO 4892-2-A | |
| Special features | suitable for drag chains |
| Silicone-free | |
| Free of substances that interfere with paint wetting | |
| Ambient temperature (operating) | -40 °C ... 80 °C (cable, fixed installation) |
| -25 °C ... 80 °C (cable, movable installation) | |
| Environmental conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Ambient temperature (operating) | -25 °C ... 85 °C (male/female) |
| Standard designation | M12 Push-Pull |
| Standards/Regulations | IEC 61076-2-010 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 3 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Positioning cable feed, field-sided (EF005928) | Other |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Female (bus) |
| Positioning cable feed, box-sided (EF005927) | Angled |
| Cable length (EF000536) | 10 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuSn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -25 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | IP65 |
